SGM12UB1D2.pdf? High ESD Withstand Voltage:
IEC 61000-4-2: ±12kV (Air)
IEC 61000-4-2: ±12kV (Contact)
? Rated Peak Pulse Current: 2A
? 0.35pF (TYP) Channel Input Capacitance

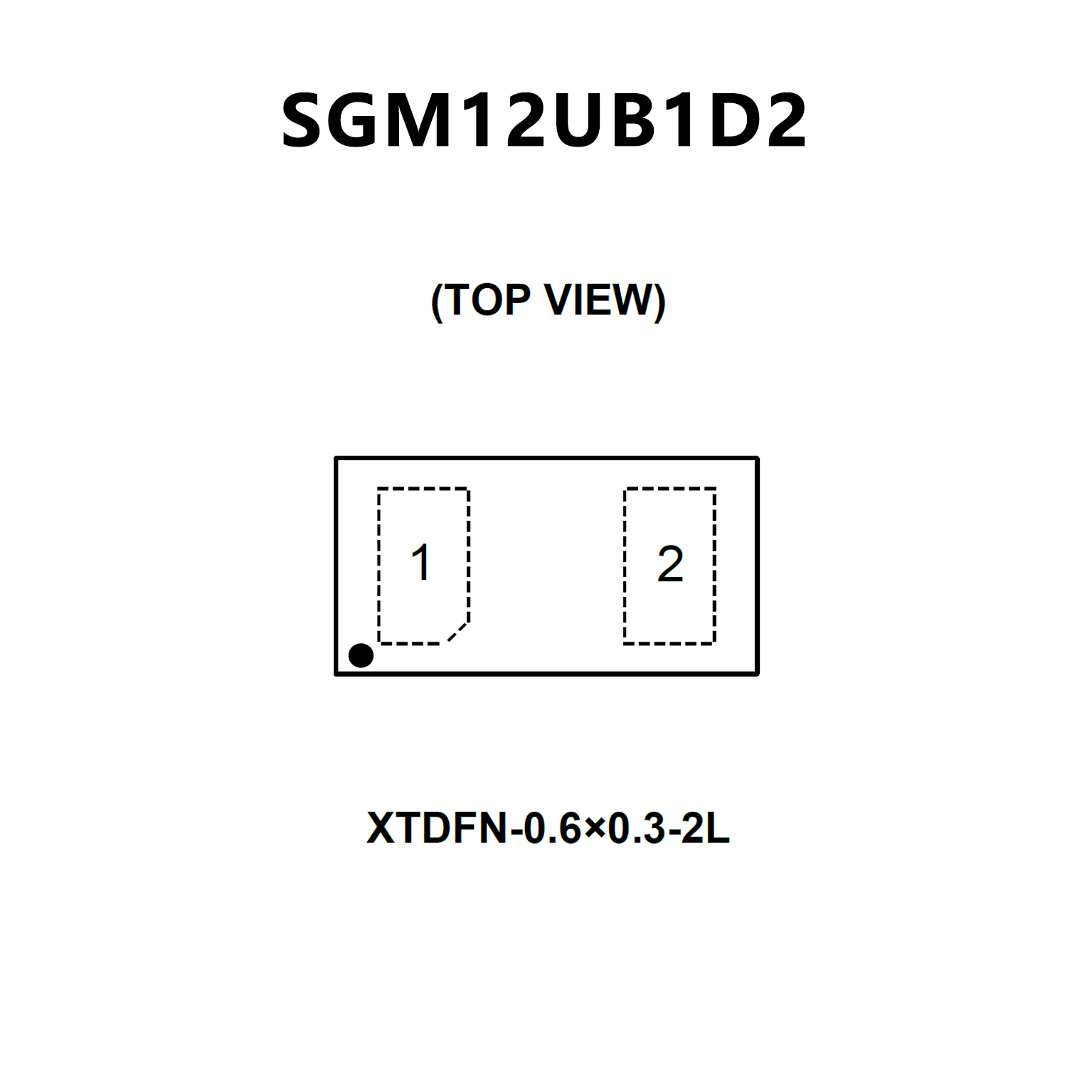

? Low Profile Package: UTDFN-1×0.6-2L and
XTDFN-0.6x0.3-2L
? Working Voltage: 12V and Below
? ESD Protect for 1 Line with Bi-directional
? Provide ESD protection for the protected line to
IEC 61000-4-2 (ESD) ±20kV (air), ±20kV (contact)
IEC 61000-4-4 (EFT) 50A (5/50ns)
IEC 61000-4-5 (Lightning) 3A (8/20?s)
Cable Discharge Event (CDE)
? 0201 small DFN package saves board space
? Protect one I/O line or one power line
? Fast turn-on and Low clamping voltage
? For operating voltage of 12V and below
? Solid-state silicon-avalanche and active circuit
triggering technology
? Green Part
