SGM2060.pdf? Operating Input Voltage Range: 1.5V to 5.5V
? Fixed Output from 0.55V to 4.2V
? Adjustable Output from 0.55V to 5.0V
? 1A Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 85μA (TYP)
? Low Dropout Voltage:
145mV (TYP) at 1A, VOUT = 3.3V
? Low Noise: 16?VRMS (TYP)
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? UVLO with Hysteresis
? -40℃ to +125℃ Operating Temperature Range

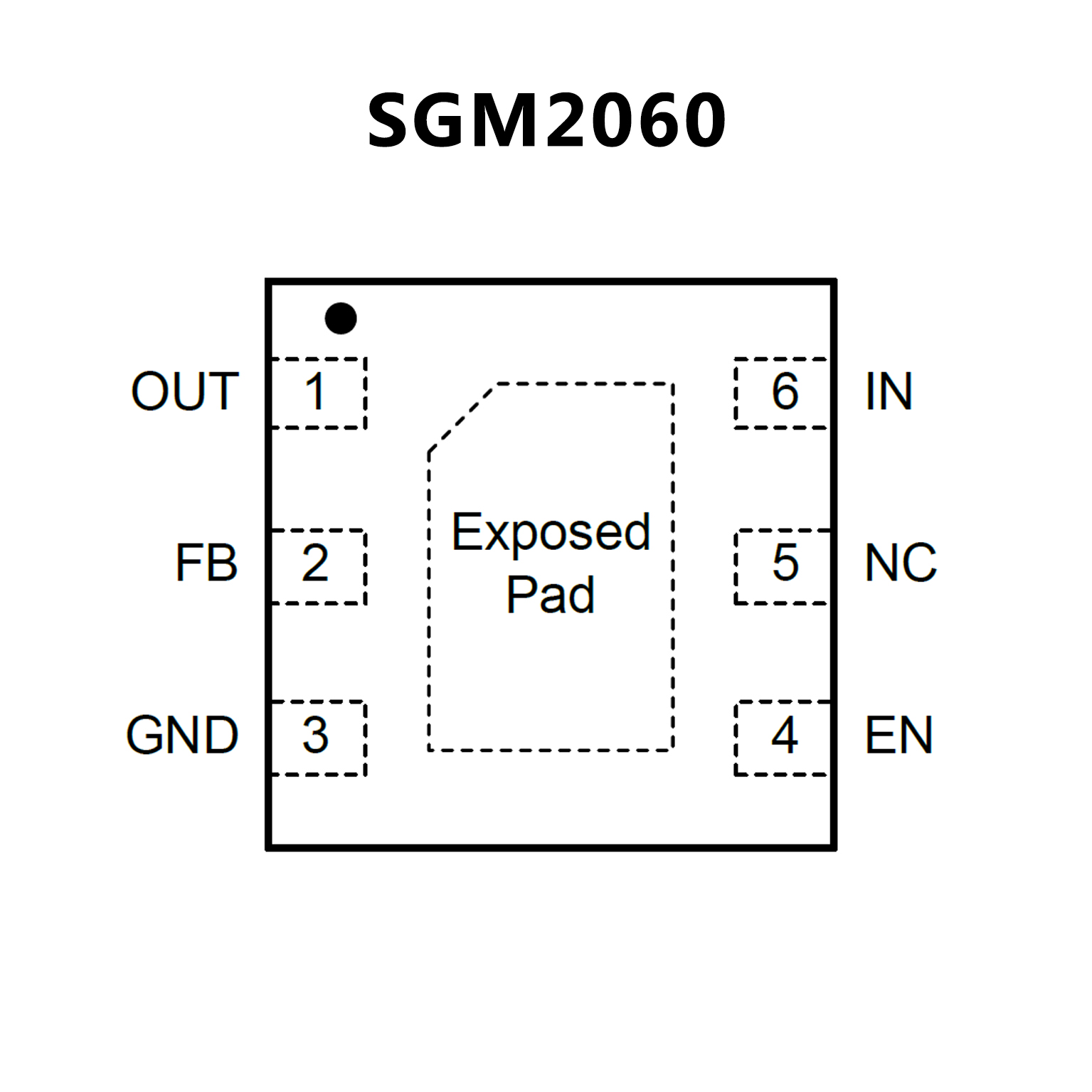

? Available in a Green TDFN-2×2-6AL Package

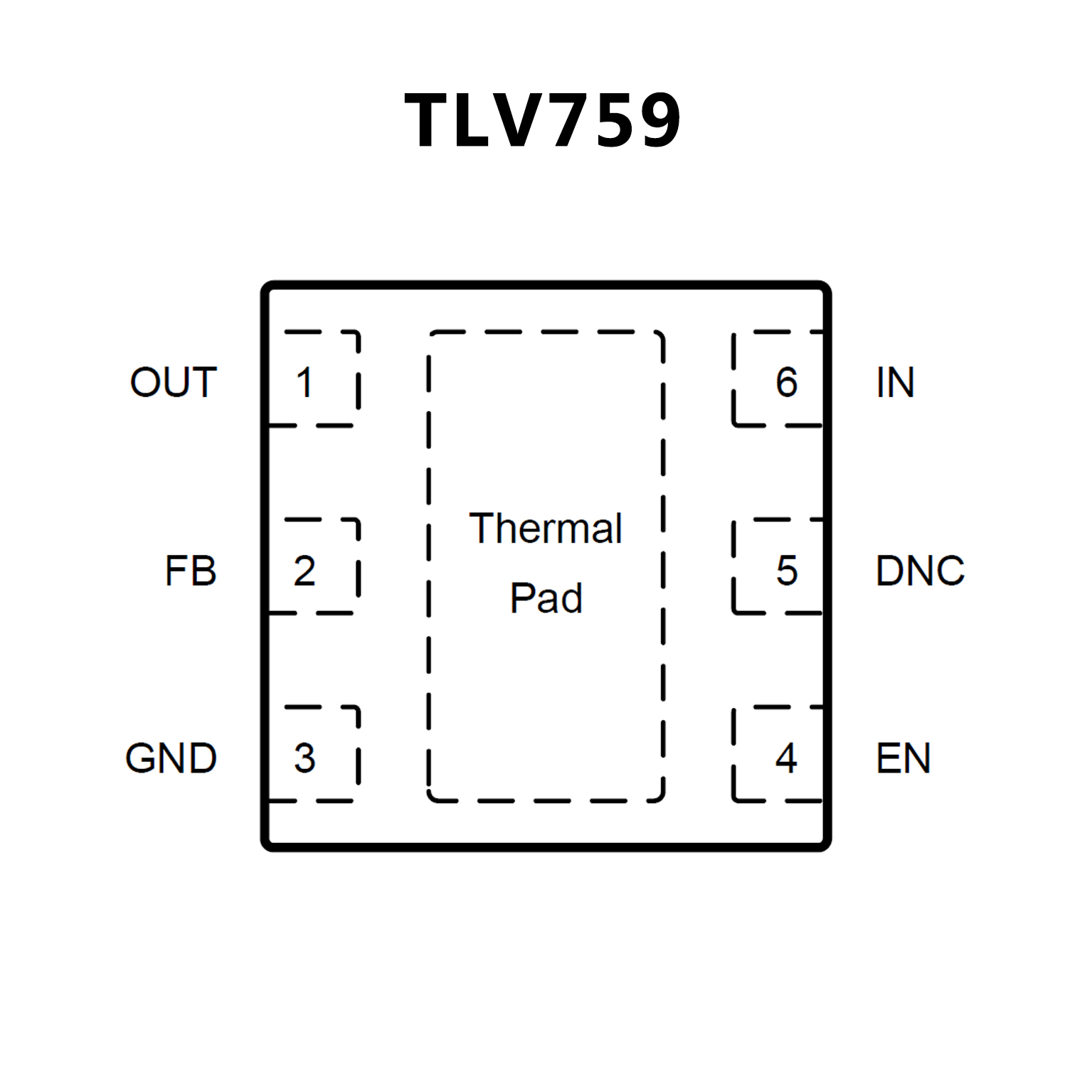

? Input Voltage Range: 1.5 V to 6.0 V
? Adjustable Output Voltage:
0.55 V to 5.5 V
? Very Low Dropout:
225 mV (max) at 1 A (3.3 VOUT)
? High Output Accuracy:
0.7%, Typical
1%, Maximum Over Temperature (85°C)
? Active Output Discharge
