Low Noise, Low Drop, High Voltage, 800mA LD0,Replace LM1117
SGM2212
SGM2212.pdf
SGM2212.pdfFEATURES
? Input Voltage Range: 2.7V to 20V
? Available in 1.8V, 2.5V, 2.8V, 3.3V, 5V and
Adjustable Versions
? Current Limiting and Thermal Protection
? Output Current: 800mA
? Line Regulation: 0.03% (TYP)
? Load Regulation: 0.1% (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3 and TDFN-3×3-8L Packages

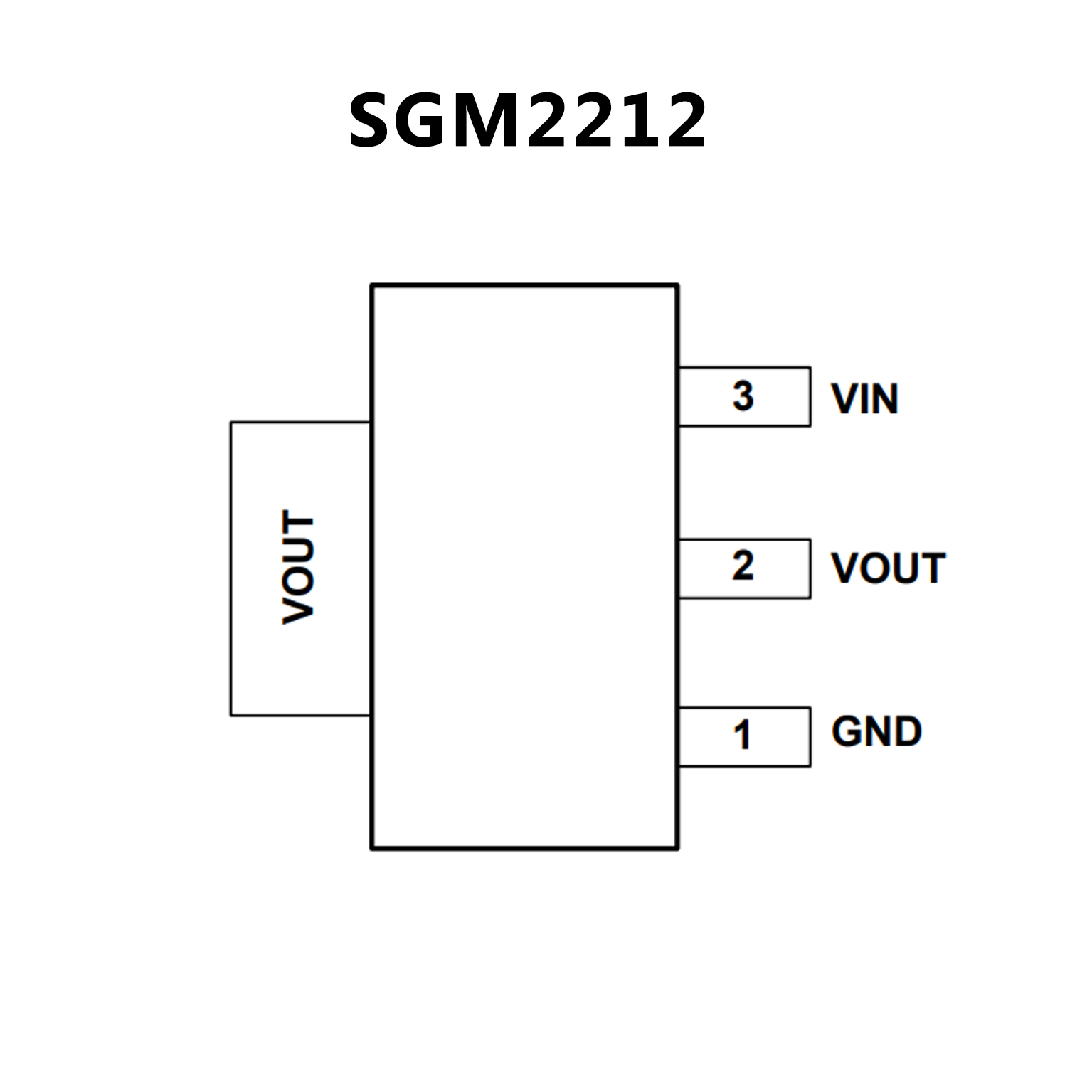

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Output Current up to 1 A
? Low Dropout Voltage (1.2V at 1A Output current)
? Line Regulation typically at 0.1% max.
? Load Regulation typically at 0.2% max.
? Internal Current and Terminal Protection
? Maximum Input Voltage 20V
? Surface Mount Package SOT-223
? 100% Thermal Limit Burn-In
? Moisture Sensitivity Level 3

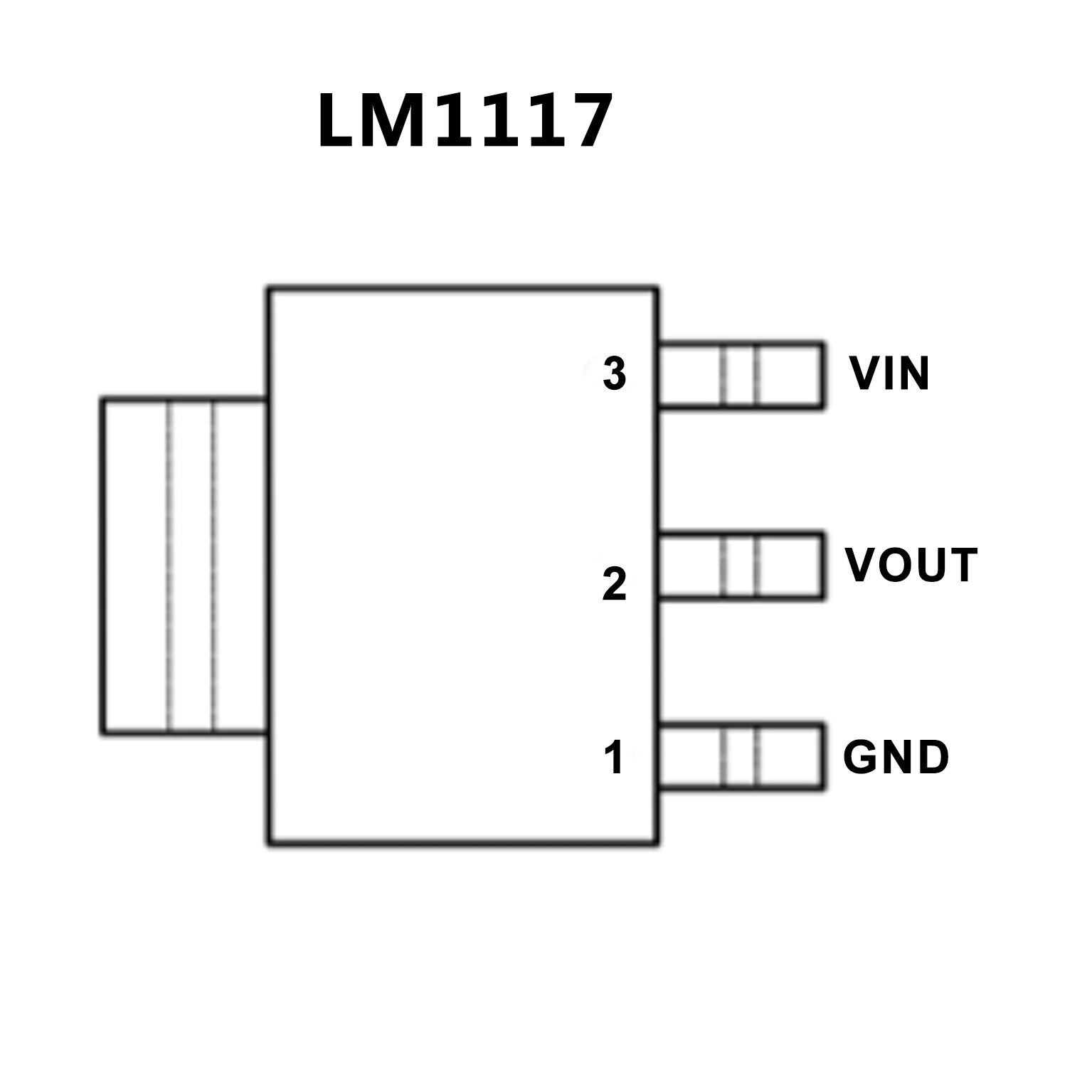

PIN CONFIGUTION
