Low IQ Reverse Battery Protection Ideal Diode Controller, SGM25733Q Replace LM74700-Q1.
SGM25733Q.pdf優(yōu)勢(shì)替代
FEATURES
? AEC-Q100 qualified with the following results
– Device temperature grade 1:
– 40°C to +125°C ambient operating temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
? Functional Safety-Capable
– Documentation available to aid functional safety
system design
? 3.2-V to 65-V input range (3.9-V start up)
? –65-V reverse voltage rating
? Charge pump for external N-Channel MOSFET
? 20-mV ANODE to CATHODE forward voltage drop
regulation
? Enable pin feature
? 1-?A shutdown current (EN=Low)
? 80-?A operating quiescent current (EN=High)
? 2.3-A peak gate turnoff current
? Fast response to reverse current blocking:
< 0.75 ?s
? Meets automotive ISO7637 transient requirements
with a suitable TVS Diode
? Available in 6-pin and 8-pin SOT-23 Package 2.90
mm × 1.60 mm

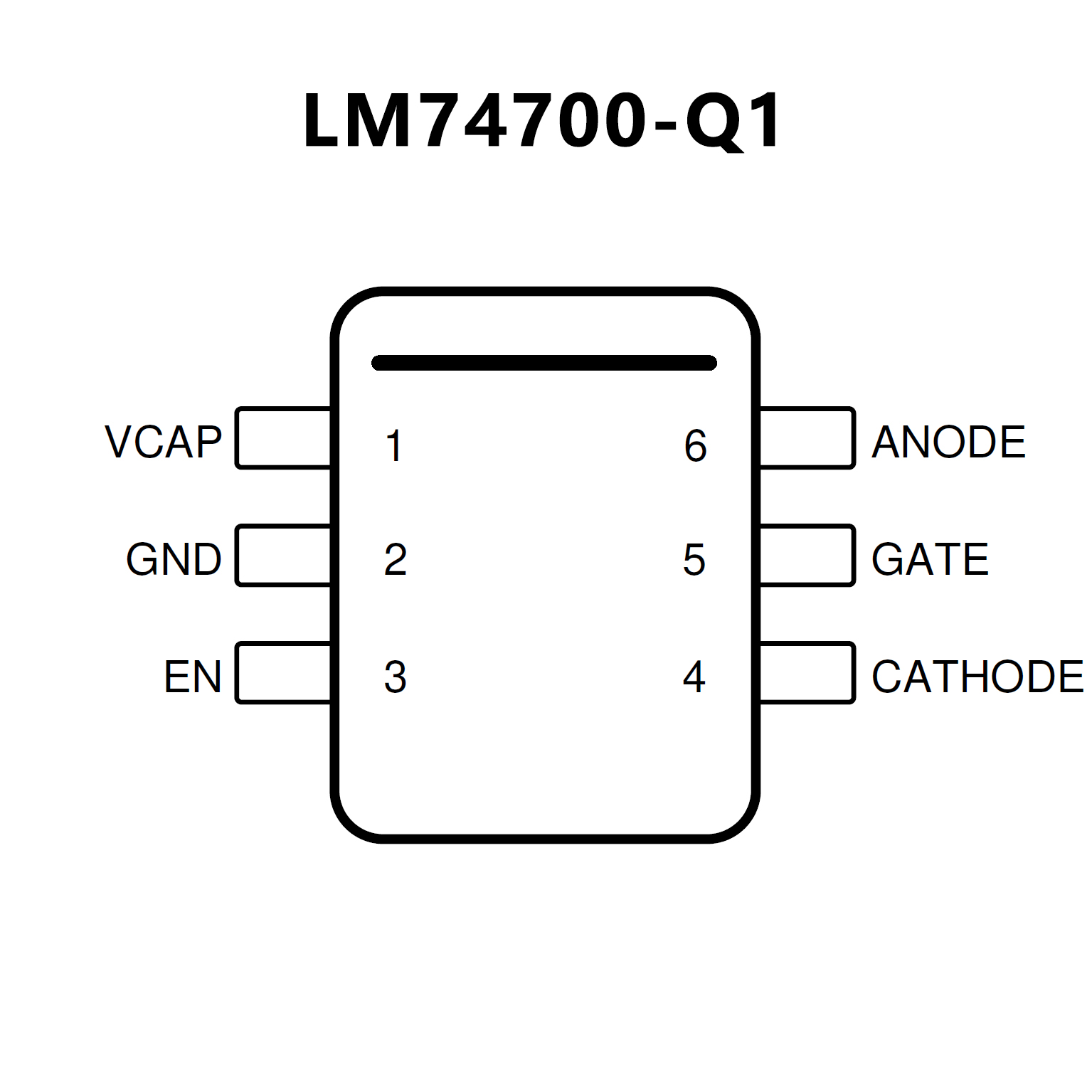

PIN CONFIGUTION
