70mΩ/55mΩ, 3A/2.5A/2A/1.5A/1A/0.5A High-Side Power Switches with Flag, SGM2594B Replace RT9742.
SGM2594B
SGM2594B.pdf
SGM2594B.pdfFEATURES
? High-side N-MOSFET
? On-Resistance: 66mΩ (TYP)
? Three Current Limit Levels
SGM2594A/AD: 1300 ± 100mA
SGM2594B/BD: 2400 ± 160mA
SGM2594C/CD: 3000 ± 200mA
? Input Voltage Range: 2.5V to 6V
? Quiescent Current: 28μA (TYP)
? Shutdown Current: 0.27μA (TYP)
? Soft-Start Function
? Over-Temperature Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Fault Flag (nFAULT Pin)
? Quick Output Discharge (SGM2594AD/BD/CD)
? 1.2M? Pull-Down Resistor at EN Pin
? Available in a Green SOT-23-5 Package

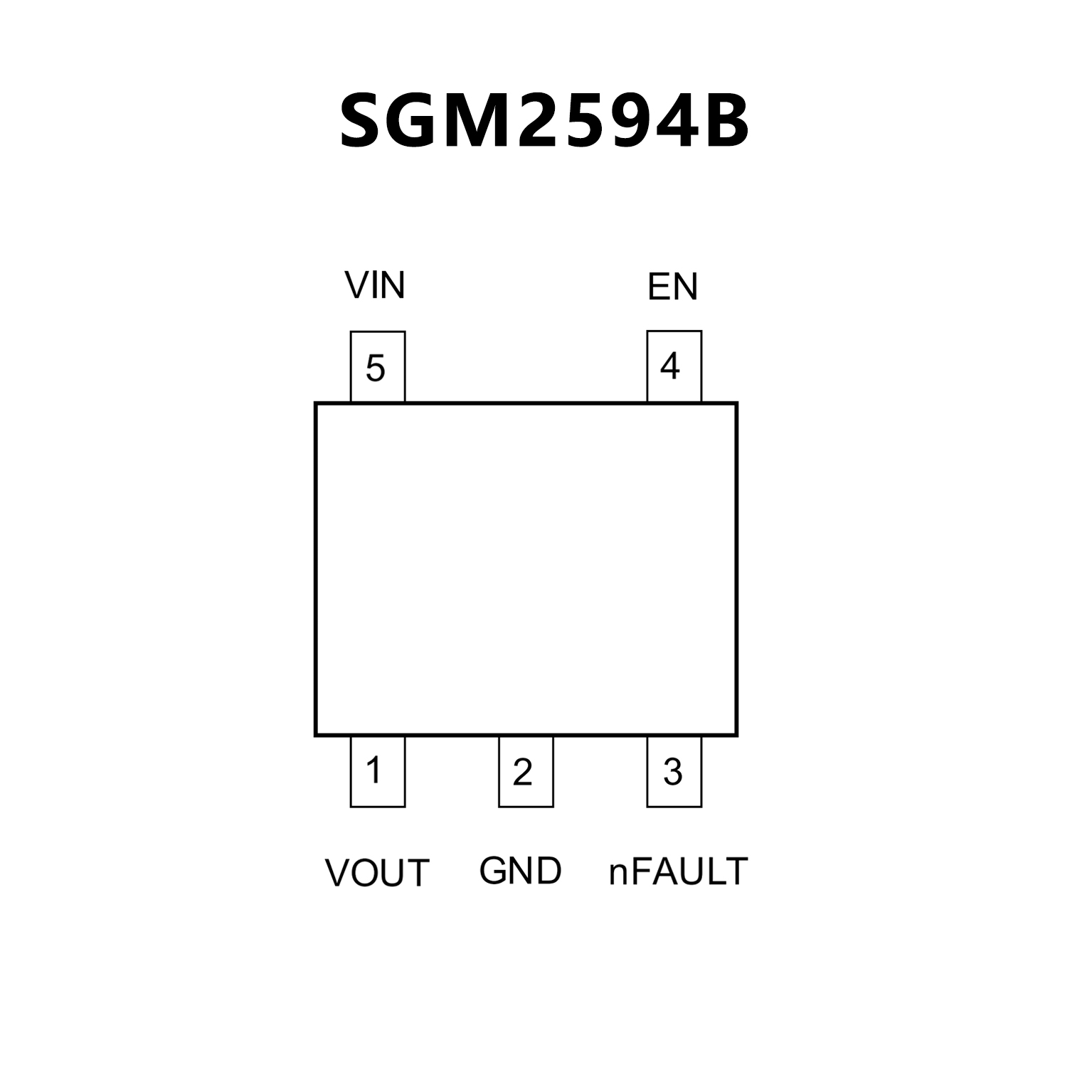

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 70mΩ/55mΩ (typ.) N-MOSFET Switch
? Operating Range : 2.7V to 6V
? Reverse Blocking Current
? Under Voltage Lockout
? Deglitched Fault Report (FLG)
? Thermal Protection with Fold-back
? Over Current Protection
? Short Circuit Protection
? UL Approved?E219878
? Nemko Approved-NO109777

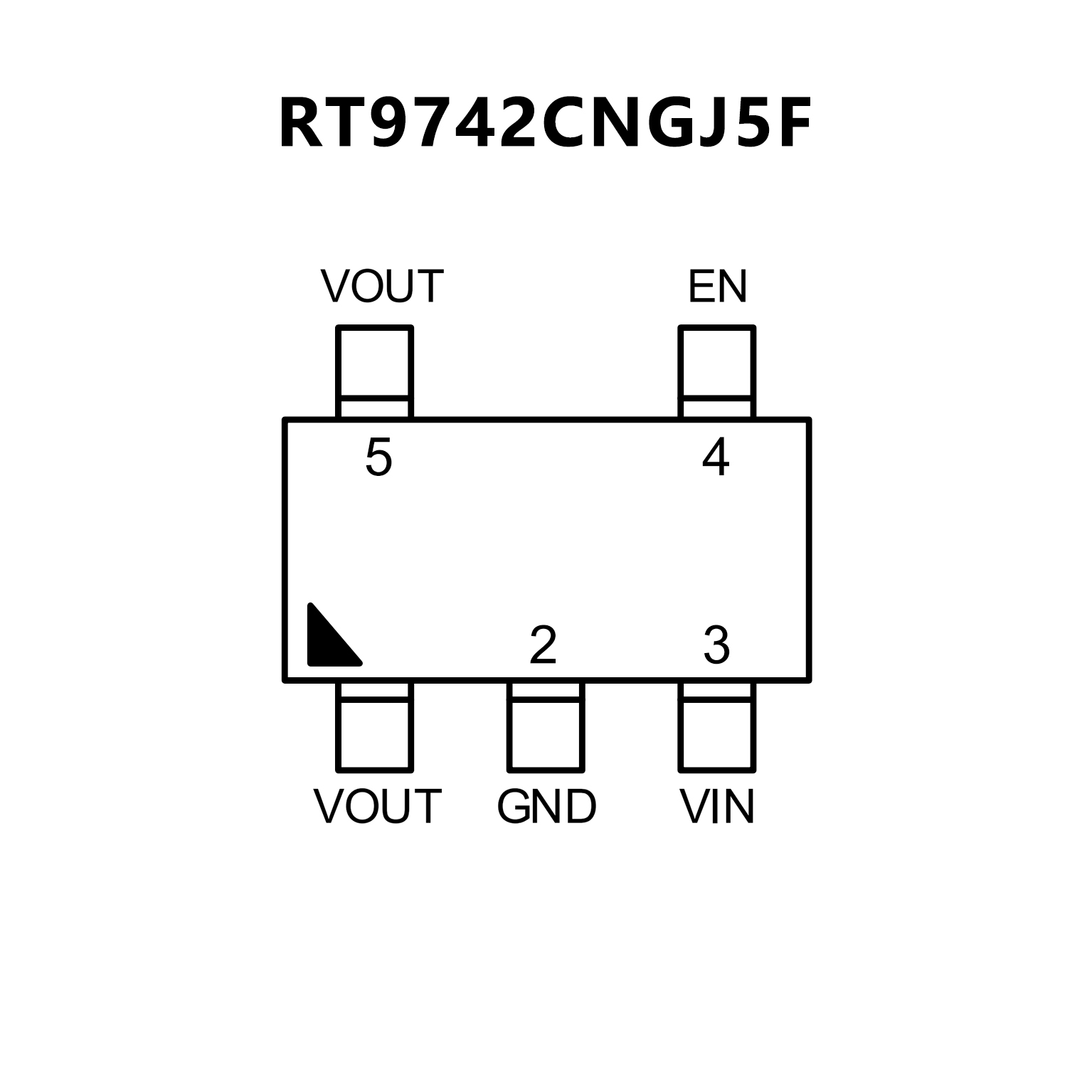

PIN CONFIGUTION
