SGM4562AQ.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? VCCA Supply Voltage Range: 0.9V to 3.6V
? VCCB Supply Voltage Range: 0.9V to 3.6V
? Support VCCA or VCCB Isolation
When VCCA or VCCB is at GND, Device Enters
High-Impedance State
? OE Input Tracks the VCCA Supply
? Low Power Consumption: 5μA (MAX) (ICCA or ICCB)
? Support Power-Down Mode
? -40℃ to +125℃ Operating Temperature Range

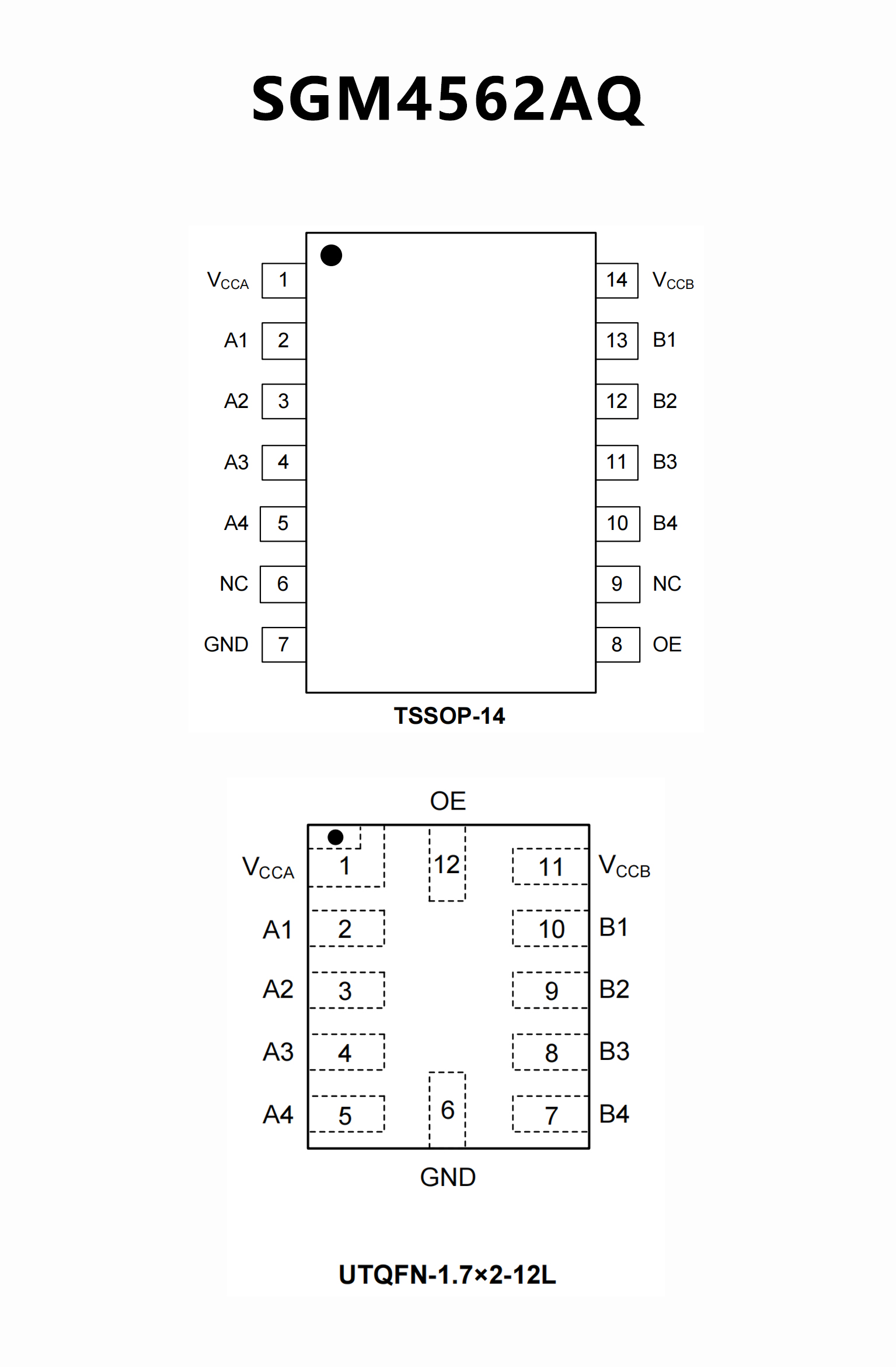

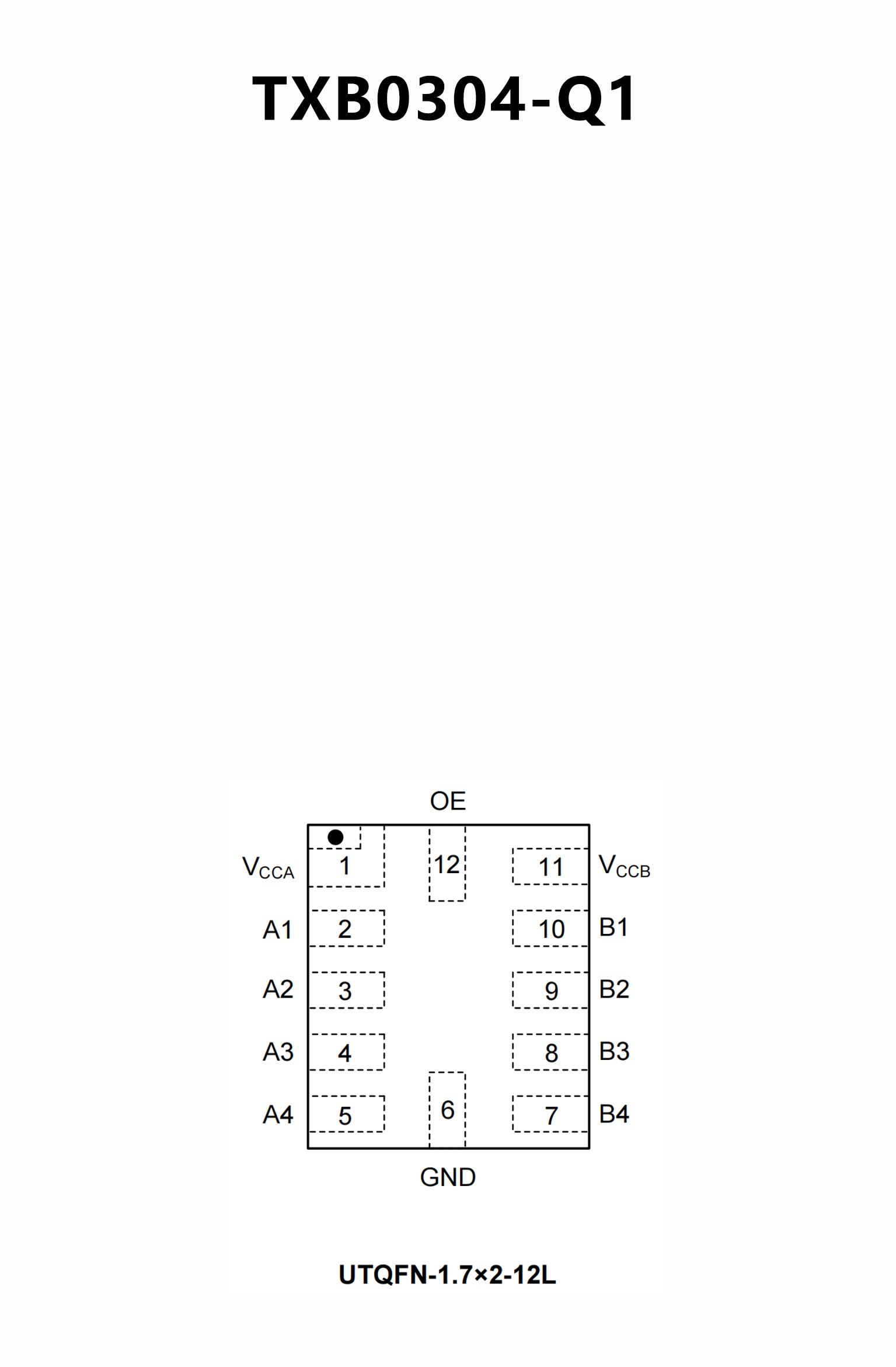

? Available in Green TSSOP-14 and UTQFN-1.7×2-12L
Packages
? Fully Symmetric Supply Voltages, 0.9 V to 3.6 V
on A Port and 0.9 V to 3.6 V
? VCC Isolation Feature – If Either VCC Input is at
GND, all Outputs are in High-Impedance State
? OE Input Circuit Referenced to VCCA
? Low Power Consumption, 5 μA Max (ICCA or ICCB)
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
– 8000-V Human-Body Model (A114-B)
– 1000-V Charged-Device Model (C101)
