8 Channels, 10-Bit Digital-to-Analog Converter with Output Operational Amplifier, SGM5348-10 Replace DAC108S085.
SGM5348-10
SGM5348-10.pdf
SGM5348-10.pdfFEATURES
? Low Power Consumption (0.5mW/CH)
? Integrating 8 Channels of 10-Bit DAC
? Built-in Rail-to-Rail Output Amplifier:
Sink/Source Current with Short Current Control
? Daisy-Chain Capability
? Simultaneous 8 Channels Output Updating
? Individual Channel Power-Down Capability
0.6μA (TYP) ICC for Power-Down Mode
? 0.1% (TYP) Gain Error for All Channels
? Interface Sees No Quiescent Current when VBUS < VCC
? Power-On Reset: Output Reset to GND
? Serial Data Input: Up to 40MHz Operation
? TTL Compatible Input Logic Level
? Wide Power Supply Range: 2.8V to 5.5V
? Dual Reference Voltages with Range of 0.5V to VCC
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-16 Package

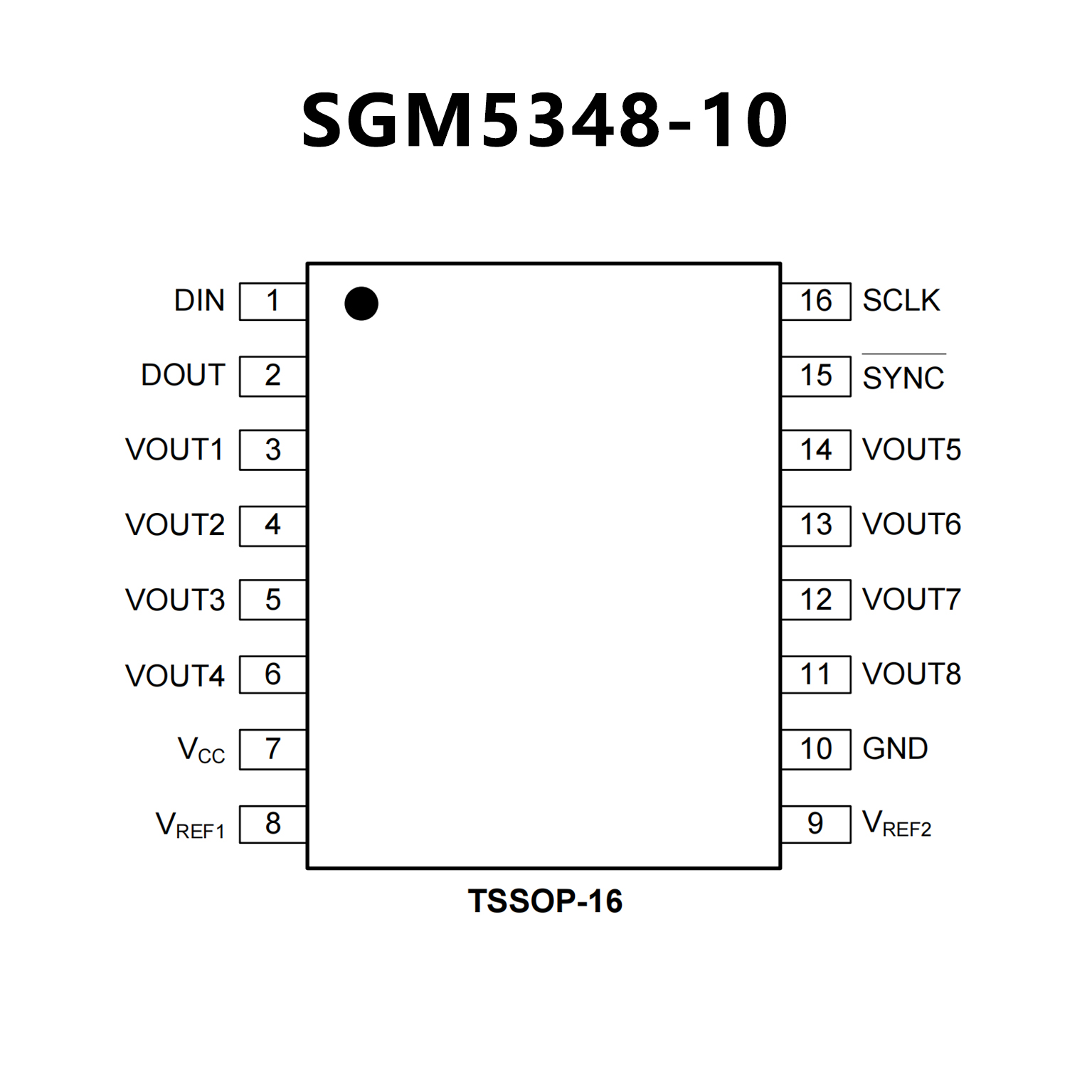

PIN CONFIGUTION
優勢替代
FEATURES
? Ensured Monotonicity
? Low Power Operation
? Rail-to-Rail Voltage Output
? Daisy Chain Capability
? Power-on Reset to 0V
? Simultaneous Output Updating
? Individual Channel Power Down Capability
? Wide power supply range (+2.7V to +5.5V)
? Dual Reference Voltages with Range of 0.5V to VA
? Operating Temperature Range of ?40°C to +125°C
? Industry's Smallest Package

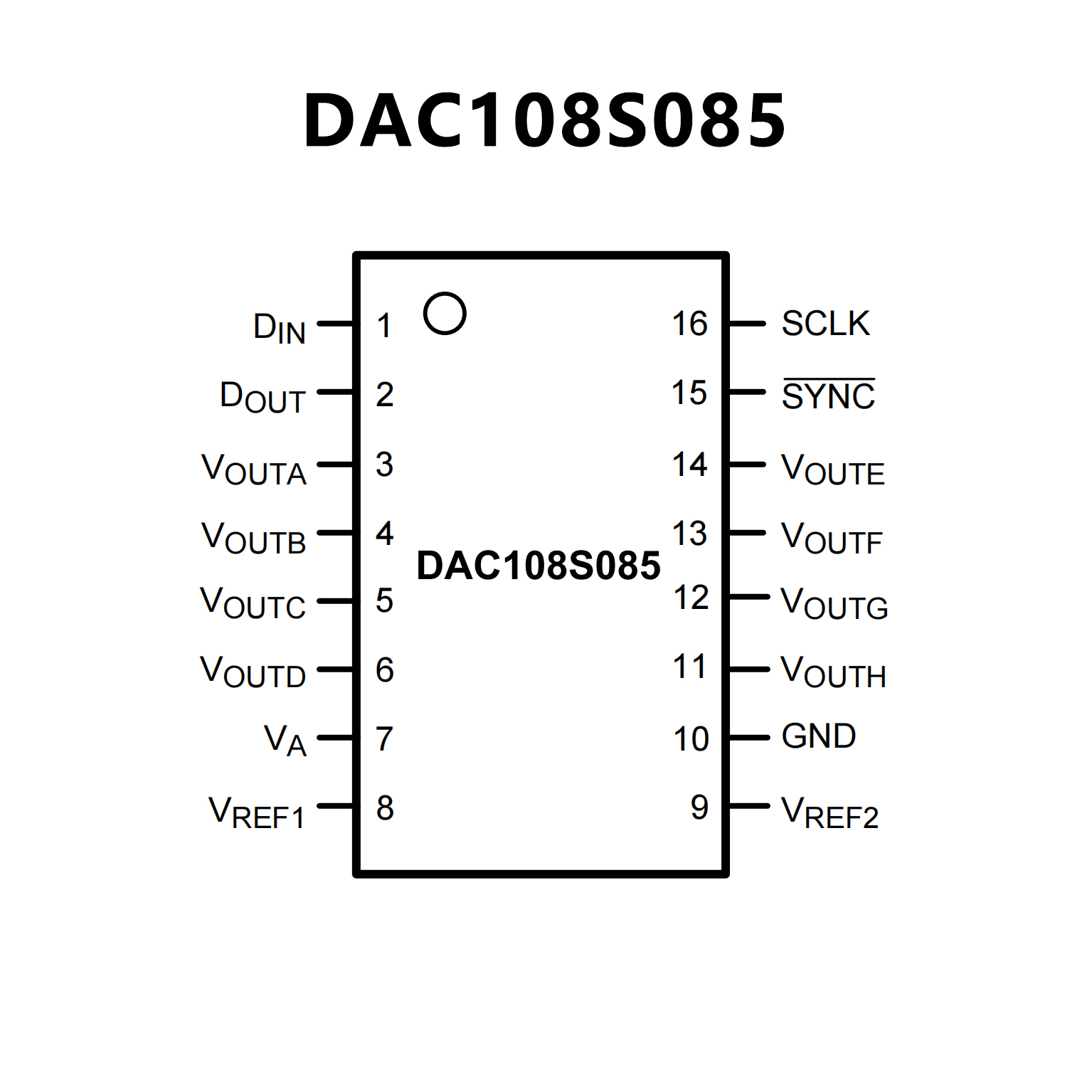

PIN CONFIGUTION
