Ultra-Small, Low-Power, 16-Bit Analog-to-Digital Converter with Internal Reference, SGM58031B P2P ADS1115.
SGM58031B
SGM58031B.pdf
SGM58031B.pdfFEATURES
? Single-Supply Voltage Range: 3V to 3.6V
I2C Bus Voltage: 1.8V
? Low Quiescent Current:
Continuous Mode: 220μA (TYP)
Power-Down Mode: 0.8μA (TYP)
? Selectable Data Rates: 6.25SPS to 960SPS
? Input Multiplexer
4 Single-Ended Inputs or 2 Differential Inputs
? Internal Programmable Gain Amplifier (PGA)
? Internal Voltage Reference and Oscillator
? Selectable Digital Comparator
? I2C-Compatible Serial Interface
? Available in Green MSOP-10 and TDFN-3×3-10L
Packages

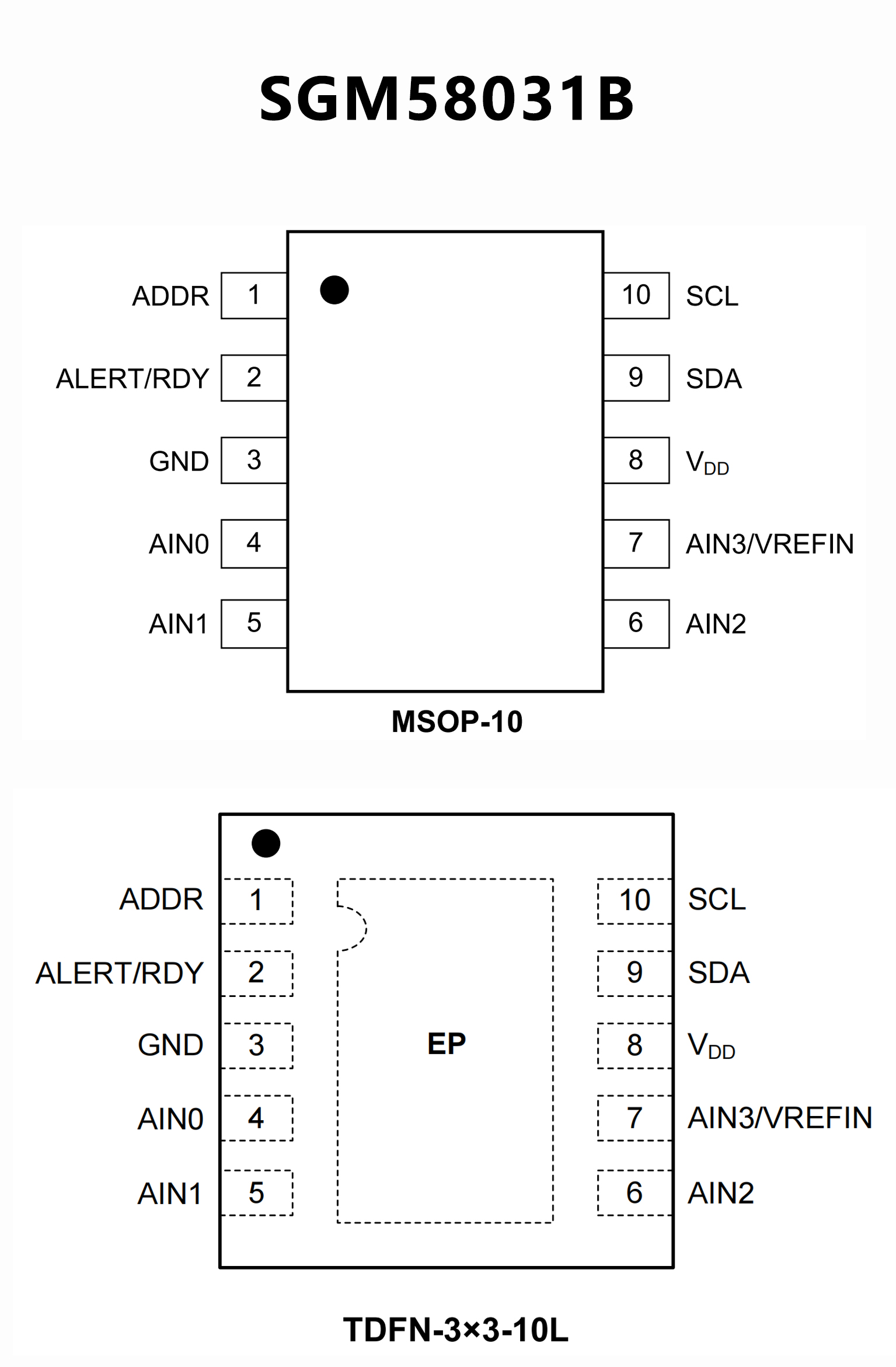

PIN CONFIGUTION
優勢替代
FEATURES
? ULTRA-SMALL QFN PACKAGE:
2mm × 1,5mm × 0,4mm
? WIDE SUPPLY RANGE: 2.0V to 5.5V
? LOW CURRENT CONSUMPTION:
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
? PROGRAMMABLE DATA RATE: 8SPS to 860SPS
? INTERNAL LOW-DRIFT VOLTAGE REFERENCE
? INTERNAL OSCILLATOR
? INTERNAL PGA
? I2C ? INTERFACE: Pin-Selectable Addresses
? OPERATING TEMPERATURE: –40°C to +140°C
PIN CONFIGUTION
