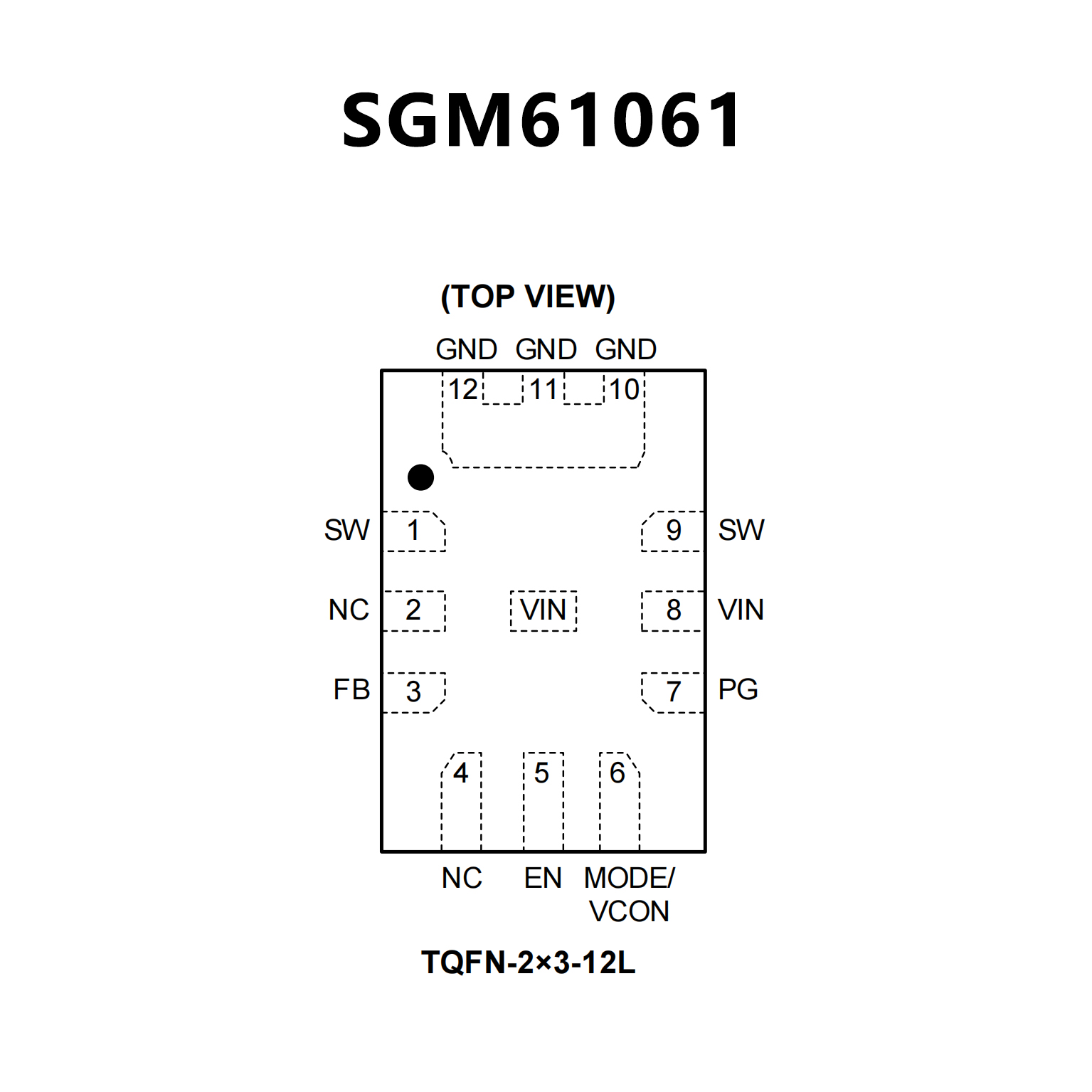

SGM61061.pdf? 6A Maximum Output Current
? 2.8V to 5.5V Input Voltage Range
? Low RDSON Internal Switches: 20mΩ/13mΩ
? Quiescent Current (VIN = 3.6V): 46μA (TYP)
? 1.4MHz Switching Frequency (Constant Off-Time)
? Low Dropout with 100% Duty Cycle
? External Control of Operation Mode
? External Control of VCON
? Adjustable Output Voltage from 0.6V to VIN
? Output Discharge Function
? 1.3ms of Internal Soft-Start Time and Pre-bias
Startup
? Cycle-by-Cycle Over-Current Protection
? Hiccup Mode OCP/Short-Circuit Protection
? Stable with Low-ESR Output Ceramic Capacitors
? Thermal Shutdown Protection
? Available in a Green TQFN-2×3-12L Package

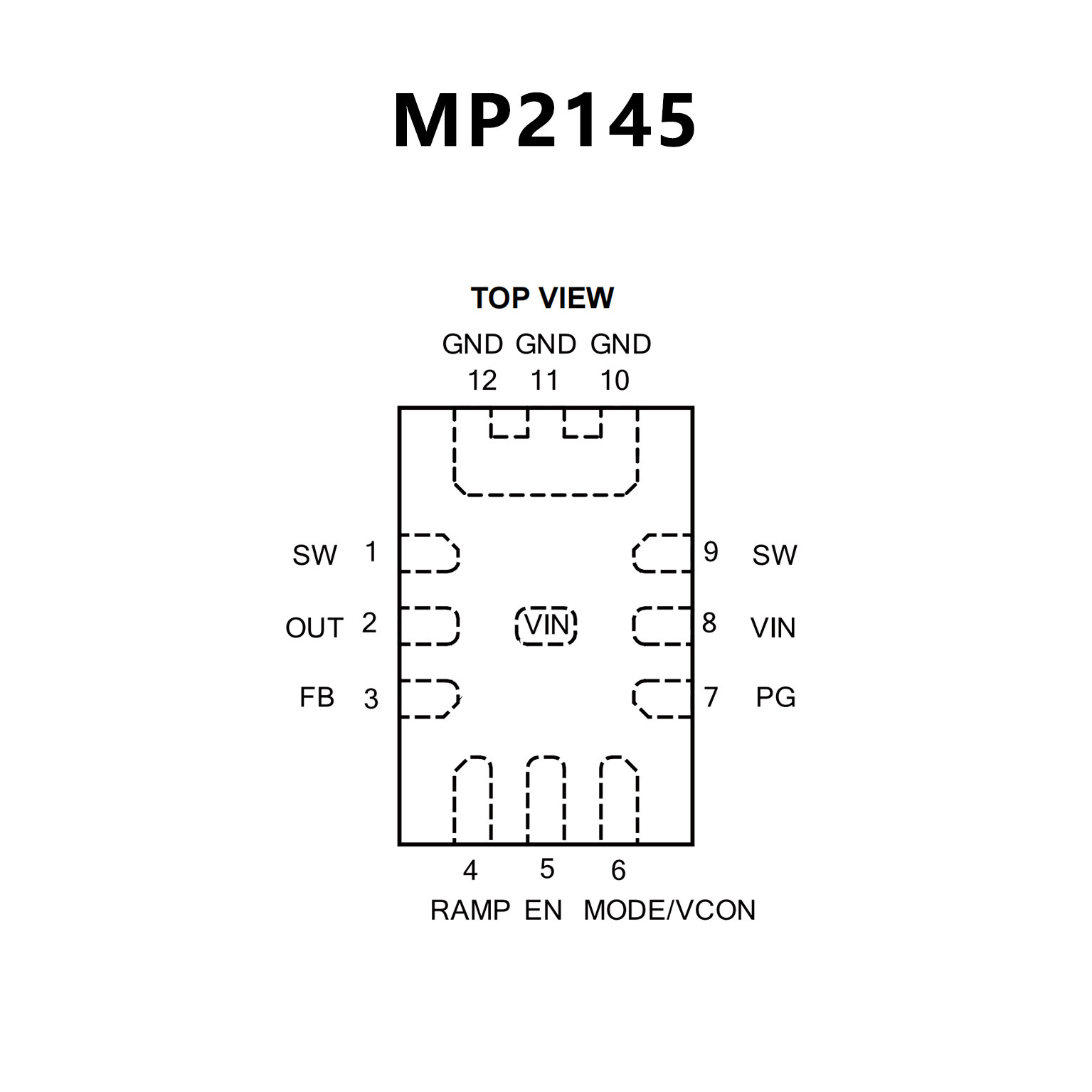

? Up to 6A Output Current
? Wide 2.8V-to-5.5V Operating Input Range
? 20m? and 12m? Internal Power MOSFETs
? 40?A Quiescent Current
? 1.2MHz Fixed Switching Frequency
? 100% Duty Cycle in Dropout
? 1% Feedback Accuracy
? External Mode Control
? External VCON Control
? Adjustable Output from 0.6V
? 1.5ms Internal SS Time with Pre-Bias Startup
? Cycle-by-Cycle Over Current Protection
? Short Circuit Protection with Hiccup Mode
? Stable with Low-ESR Output Ceramic Capacitors
? Thermal Shutdown
? Available in a 2mm×3mm QFN Package
? Output Discharge Function
