SGM61111Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? AHP-COT Control
? 3V to 17V Input Voltage Range
? Support 1A Output Current
? 0.9V to 5.5V Adjustable Output Voltage
? Fixed Output Voltage Version: 3.3V
? Internal Compensation
? 170?s (TYP) Soft-Start Time
? Pre-biased Function during Soft Startup
? Power-Save Mode with Seamless Transition
? 22μA (TYP) Quiescent Current
? Power-Good Output
? 100% Duty Cycle Mode
? Under-Voltage Lockout (UVLO)
? Thermal Shutdown Protection
? Short-Circuit Protection
? Over-Temperature Protection

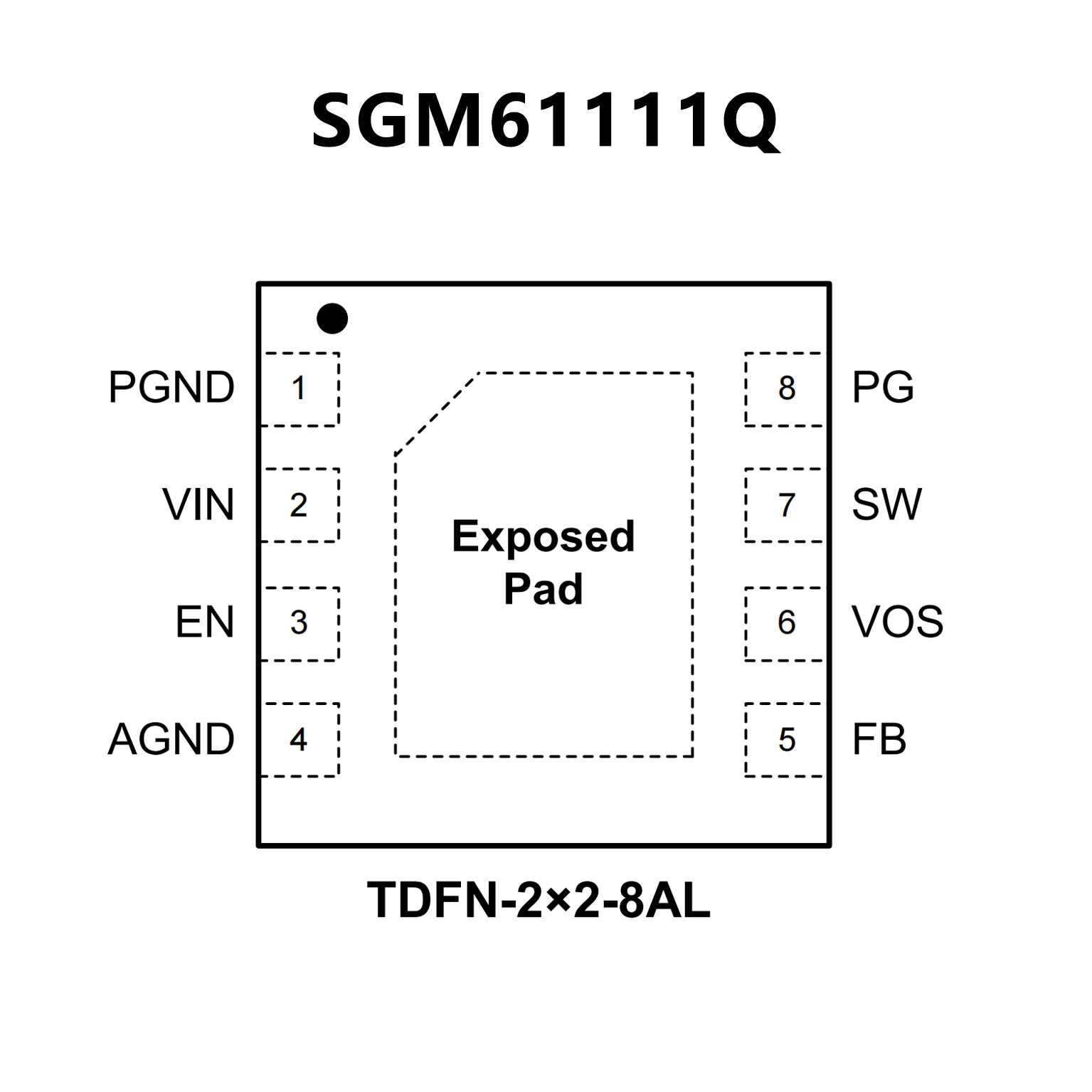

? Available in a Green TDFN-2×2-8AL Package
? DCS-Control? topology
Device temperature grade: –40°C to
125°C operating junction temperature range
Device HBM ESD classification level H2
Device CDM ESD classification level C4B
? Functional Safety-Capable
? Input voltage range: 3 V to 17 V
? Up to 1-A output current
? Adjustable output voltage from 0.9 V to 6 V
? Fixed output voltage versions
? Seamless power save mode transition
? Typically 17-?A quiescent current
? Power-good output
? 100% Duty cycle mode
? Short circuit protection
? Overtemperature protection

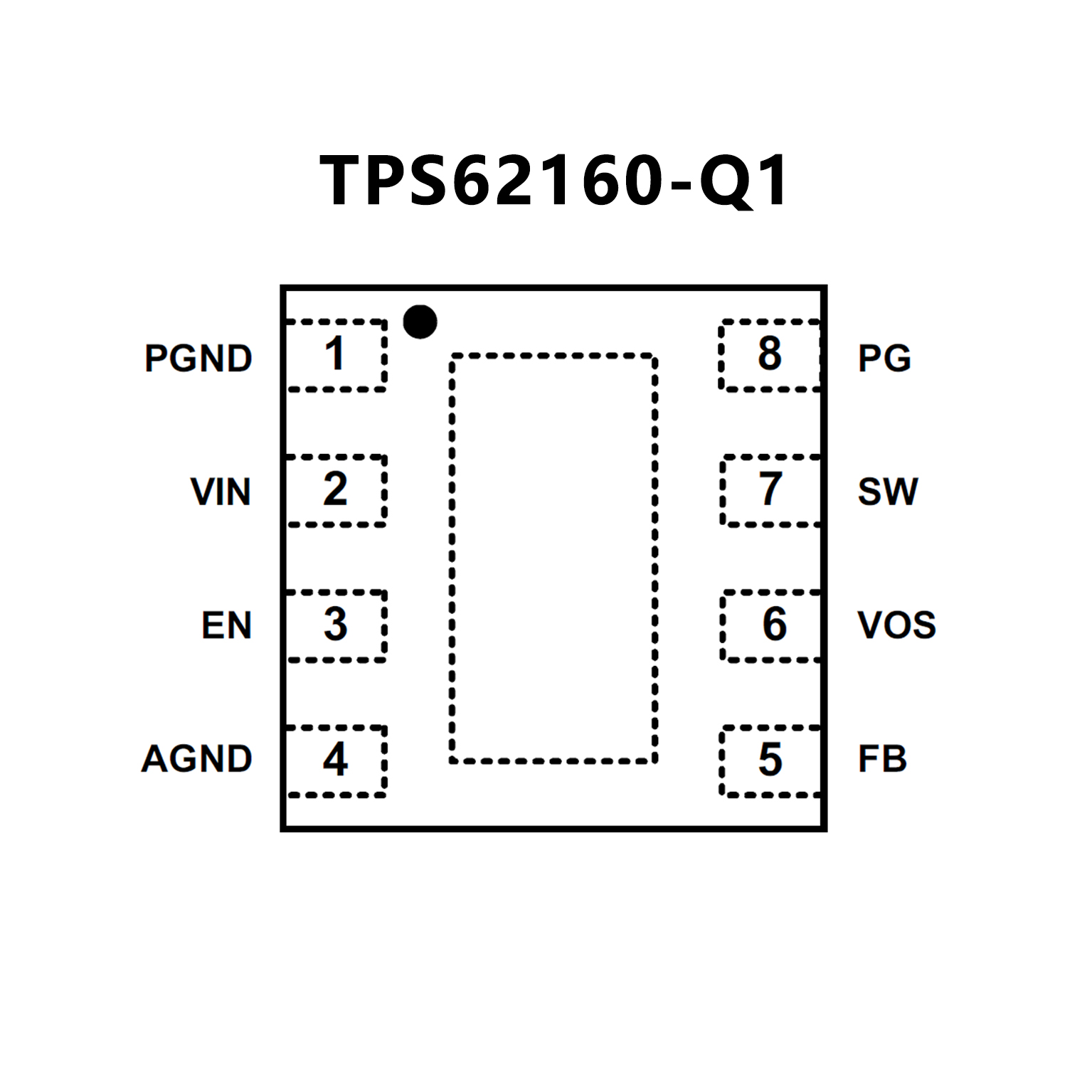

? Pin-to-pin compatible with TPS62170-Q1
? Available in a 2-mm × 2-mm WSON-8 package
