SGM61330AQ.pdf? Wide 3.8V to 36V Input Voltage Range
? Up to 3A Continuous Output Current
? SGM61330:
1V to 24V Output Voltage Range
PFM at Light Load Condition
? Fixed Switching Frequency
SGM61330A: 400kHz
SGM61330B: 1.4MHz
SGM61330C: 2.1MHz
? Power-Good Flag and Precision Enable
? Integrated RDSON Switches:
TQFN-2×3-12AL: 65m?/42m? (TYP)
SOIC-8 (Exposed Pad): 78m?/55m? (TYP)
? High Efficiency at Light Load Condition
? Ultra-Low Shutdown Current: 2.1μA (TYP)
? Low Quiescent Current: 29μA (TYP)
? Peak Current Mode Control
? Cycle-by-Cycle Current Limit
? 4ms (TYP) Internal Soft-Start Time
? -40℃ to +125℃ Operating Temperature Range

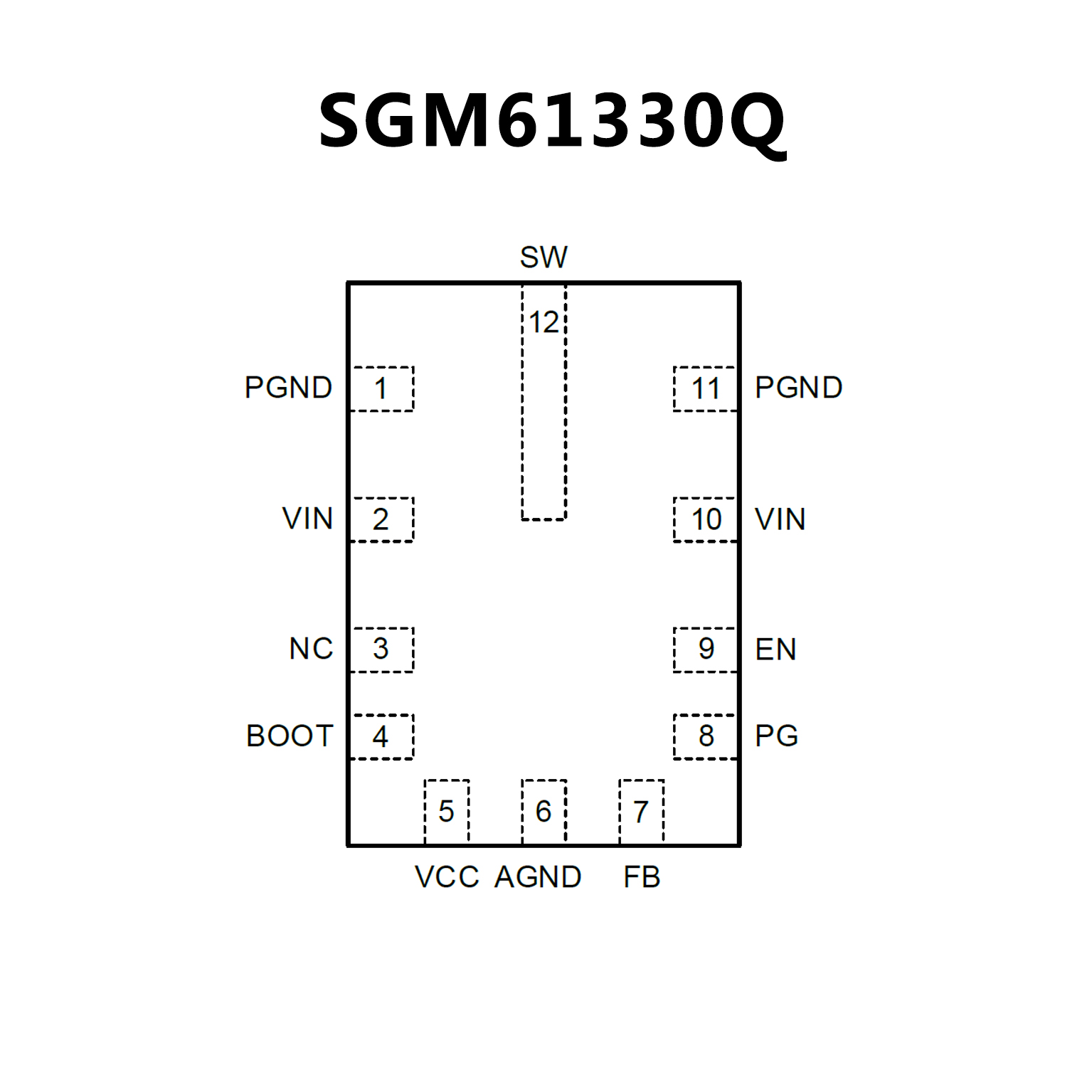

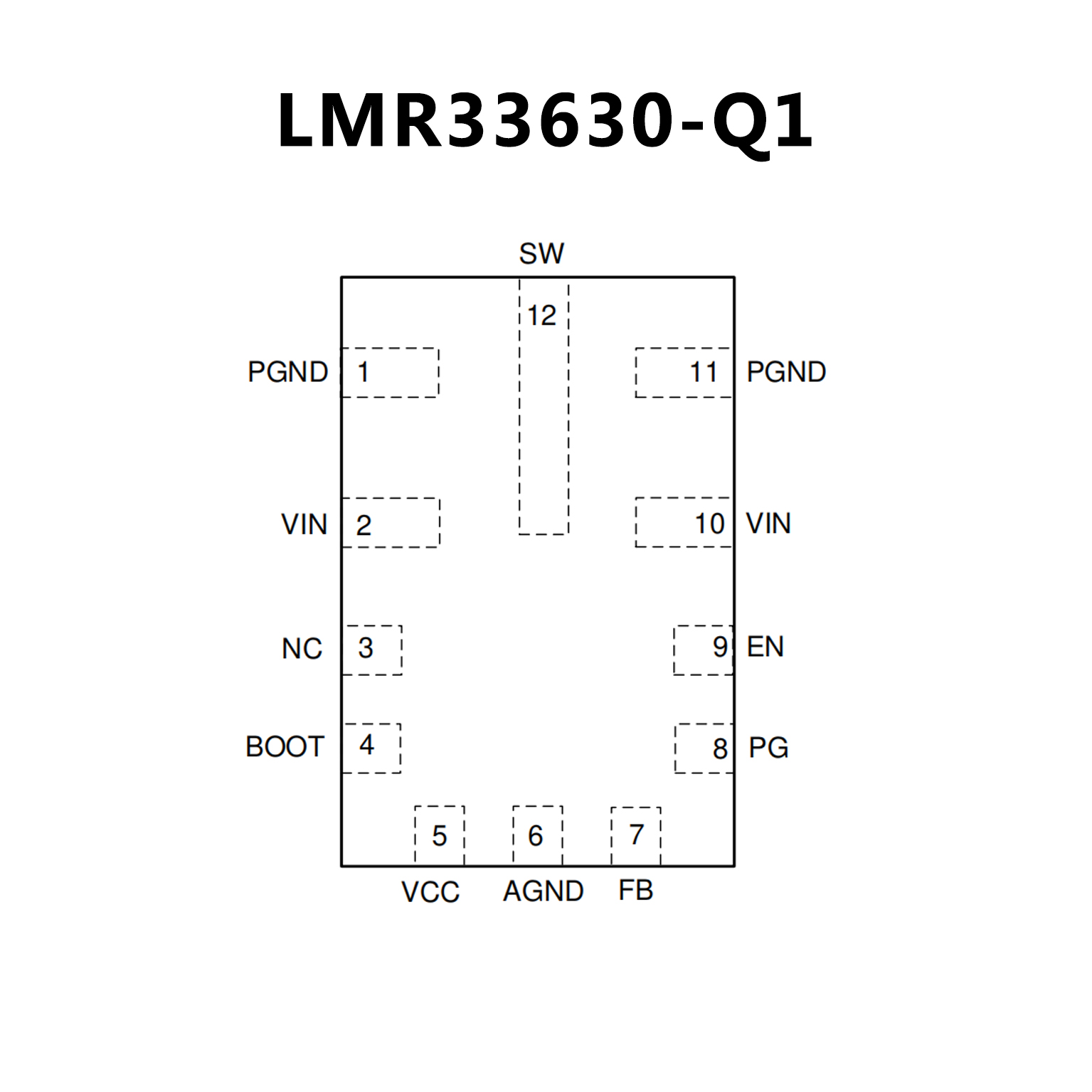

? Available in Green TQFN-2×3-12AL and SOIC-8
(Exposed Pad) Packages
? AEC-Q100 qualified for automotive applications:
