SGM61410.pdf? 1μA Shutdown Current (12μA Quiescent Current)
? Wide 4.5V to 45V Operating Input Voltage Range
? Synchronously Rectified 1A??? Current Output.
? SGM61410: 1.2MHz Switching Frequency
? Compensation Inside
? Internal Soft-Start
? Output Adjustable from 0.8V to 20V
? Cycle-by-cycle current limit and Short-circuit protection
? Output OVP and Thermal Shutdown

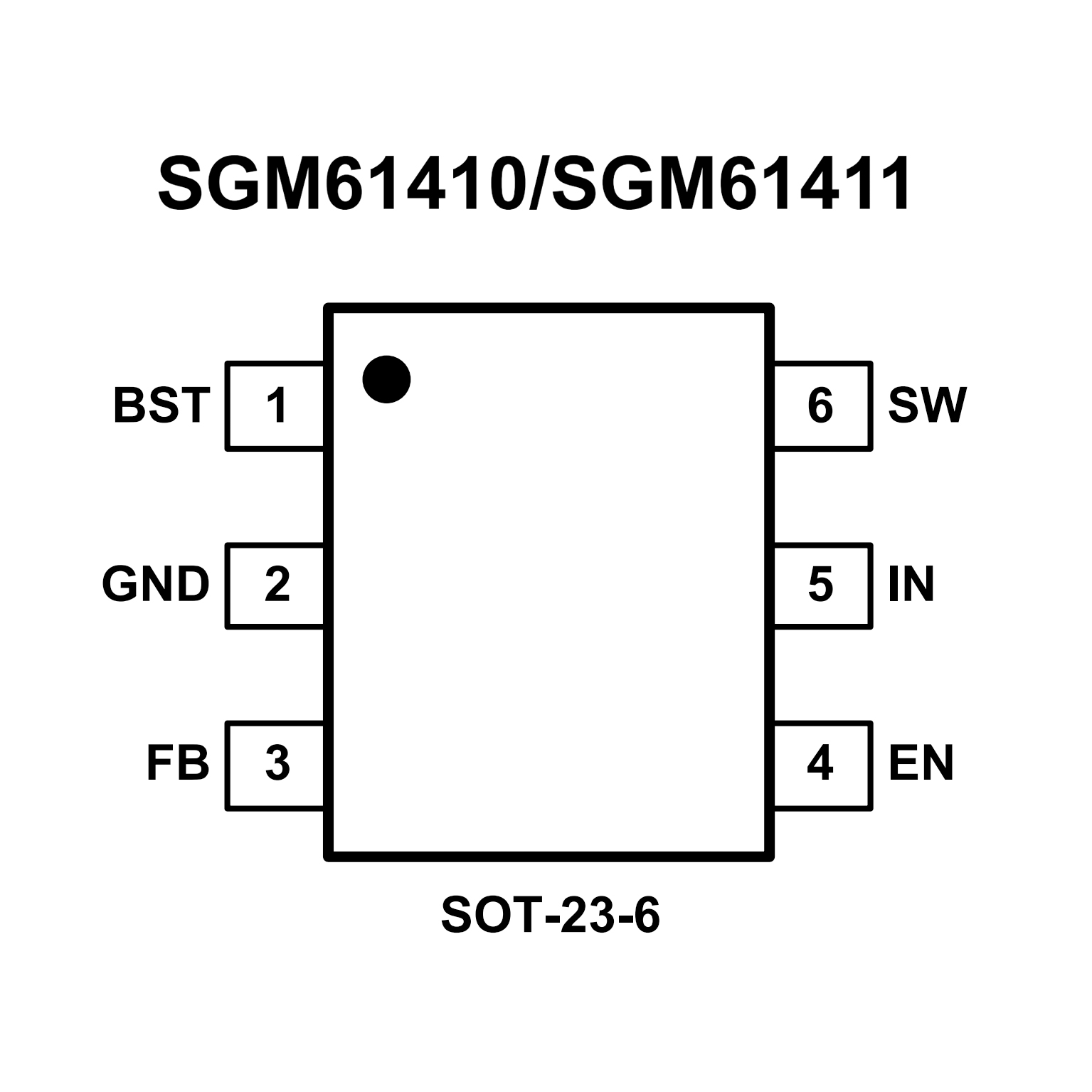

? Available in Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range
? 1.2A Peak Output Current
? 0.35? Internal Power MOSFET Switch
? Stable with Low ESR Output Ceramic Capacitors
? Up to 92% Efficiency
? 0.1?A Shutdown Mode
? Fixed 1.4MHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over Current Protection
? Wide 4.5V to 24V Operating Input Range
? Output Adjustable from 0.81V to 15V

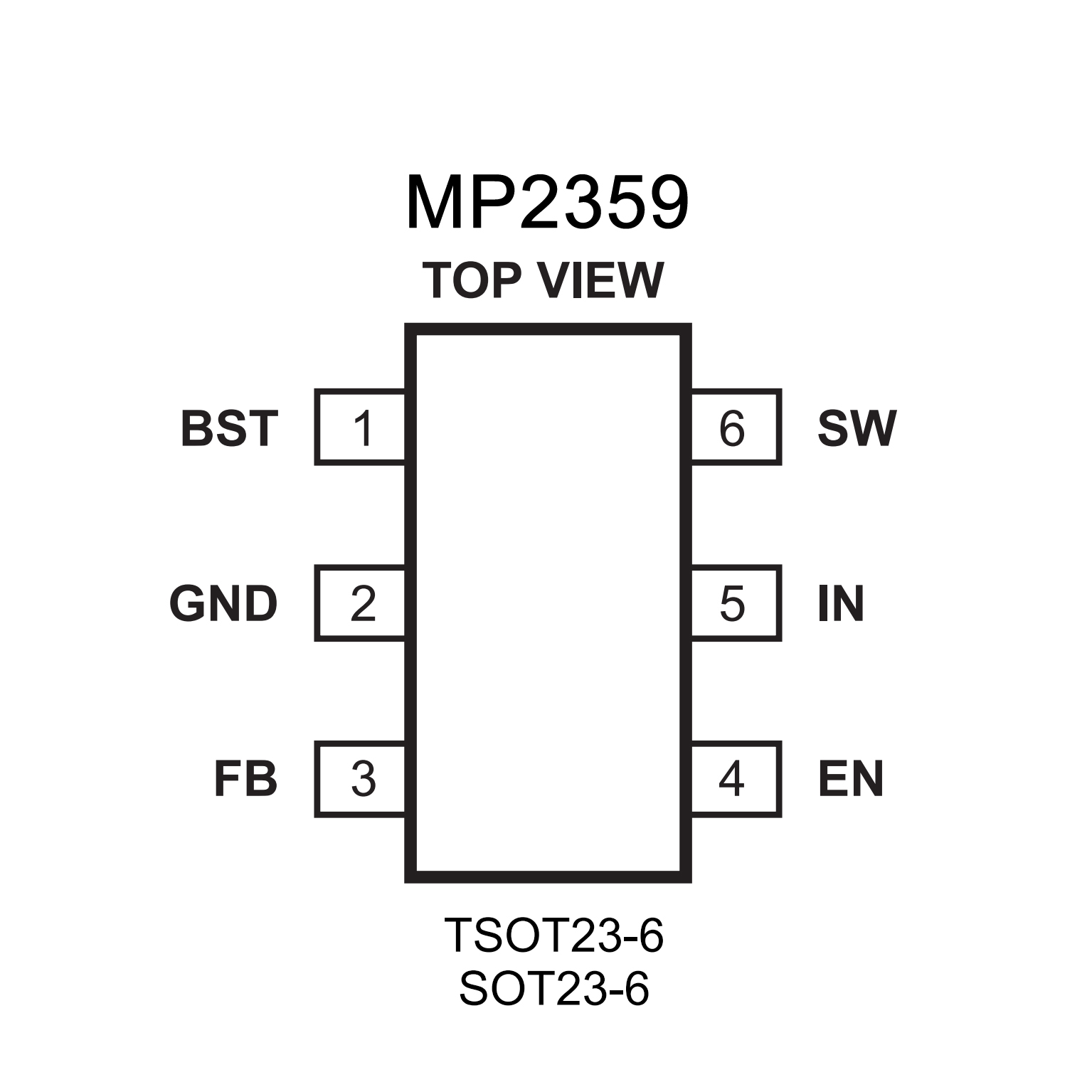

? Available in TSOT23-6 and SOT23-6 Packages
