Boost DCDC For LCD Bias Voltage in SOT25, SGM6601 Replace TPS61040.
SGM6601
SGM6601.pdf
SGM6601.pdfFEATURES
? Input Voltage Range: 1.8V to 5.5V
? Adjustable Output Voltage Range up to 38V
? 400mA Internal Switch Current
? Up to 1MHz Switching Frequency
? 20μA Typical No-Load Quiescent Current
? 0.1μA Typical Shutdown Current
? Internal Soft-Start Function
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TSOT-23-5 and TDFN-2×2-6L
Packages

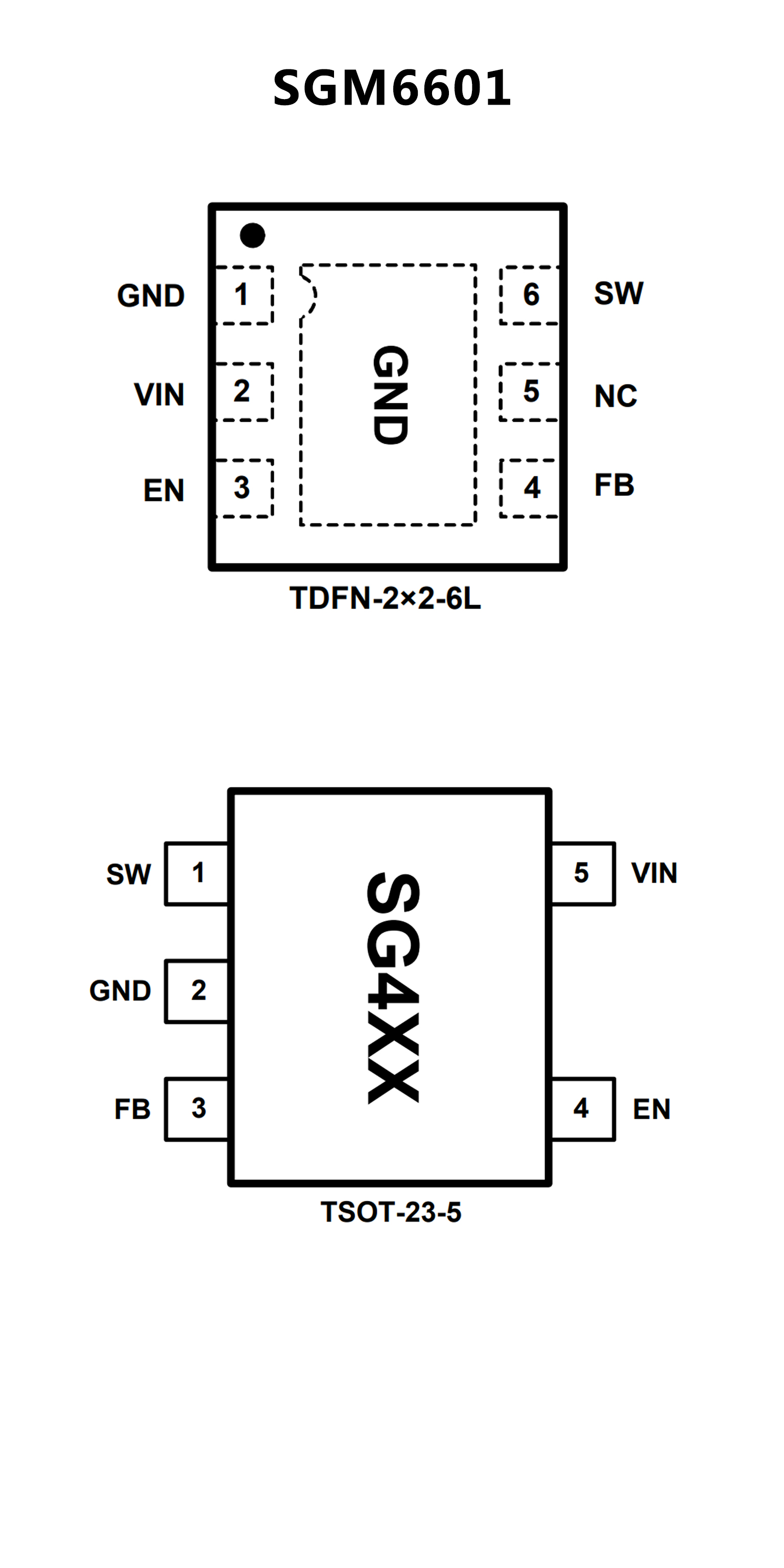

PIN CONFIGUTION
優勢替代
FEATURES
? 1.8 V to 6 V Input Voltage Range
? Adjustable Output Voltage Range up to 28 V
? 400 mA (TPS61040) and 250 mA (TPS61041)
Internal Switch Current
? Up to 1 MHz Switching Frequency
? 28 ?A Typical No Load Quiescent Current
? 1 ?A Typical Shutdown Current
? Internal Softstart
? Available in a Tiny 5-Pin SOT23 Package

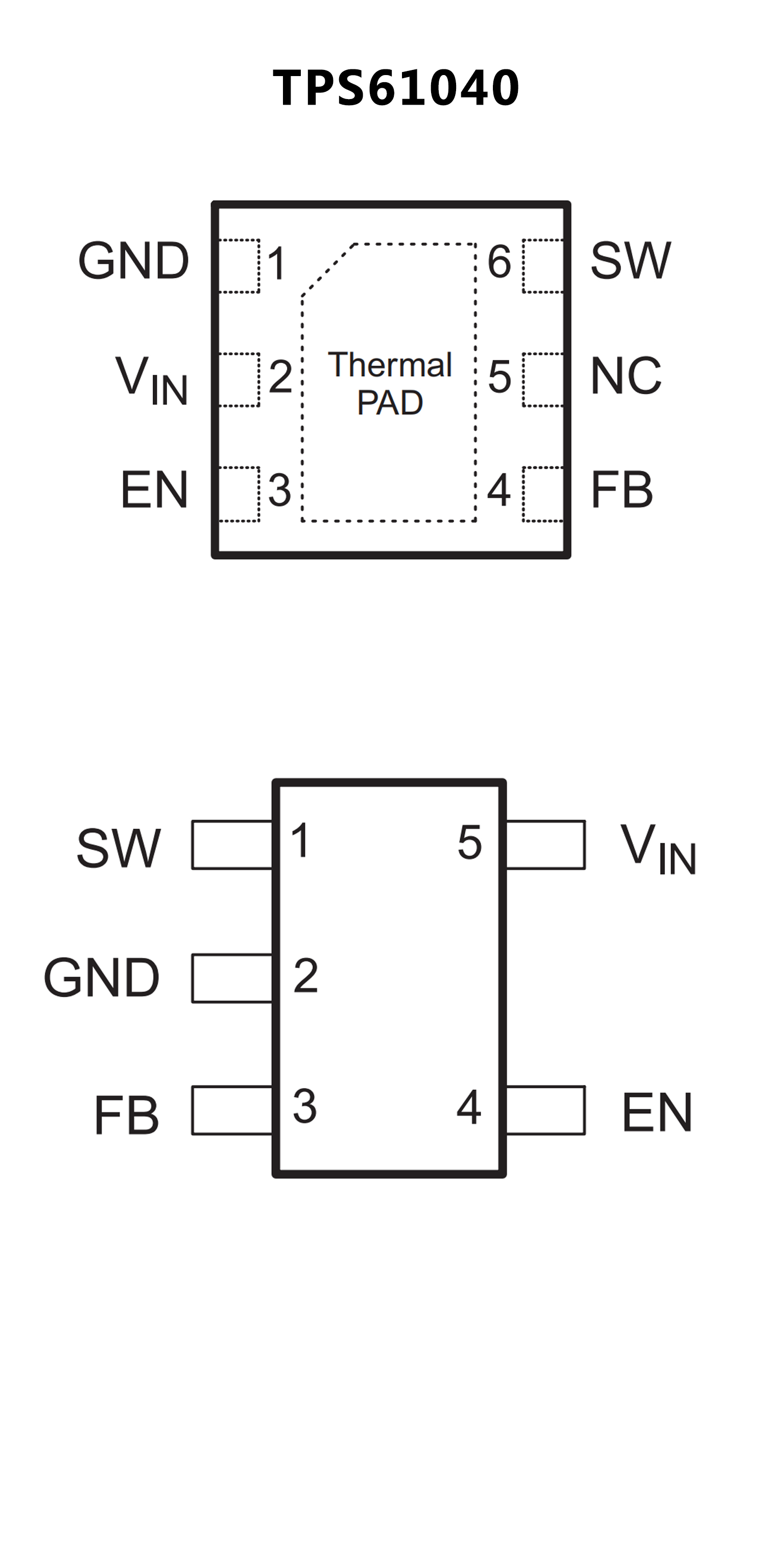

PIN CONFIGUTION
