2.2MHz, Fixed Output SynchronousTiny Step Up Converter with a 3A Switch，Replace FAN48610
SGM66055A
SGM66055A.pdf
SGM66055A.pdfFEATURES
? 93% Efficient Synchronous Boost Converter
? Device Quiescent Current: 23?A (TYP)
? Operating Input Voltage Range: 2.5V to 4.5V
? Fixed Output Voltages: 5.0V and 5.4V
? Output Voltage Clamping: 5.7V
? Power-Save Mode for Improved
Efficiency at Low Output Power
? Pass-through Mode by Pulling EN Low
? Low Reverse Leakage Current when VOUT > VIN
? Over-Temperature Protection
? Available in a Green WLCSP-1.21×1.21-9B Package
? -40℃ to +85℃ Operating Temperature Range

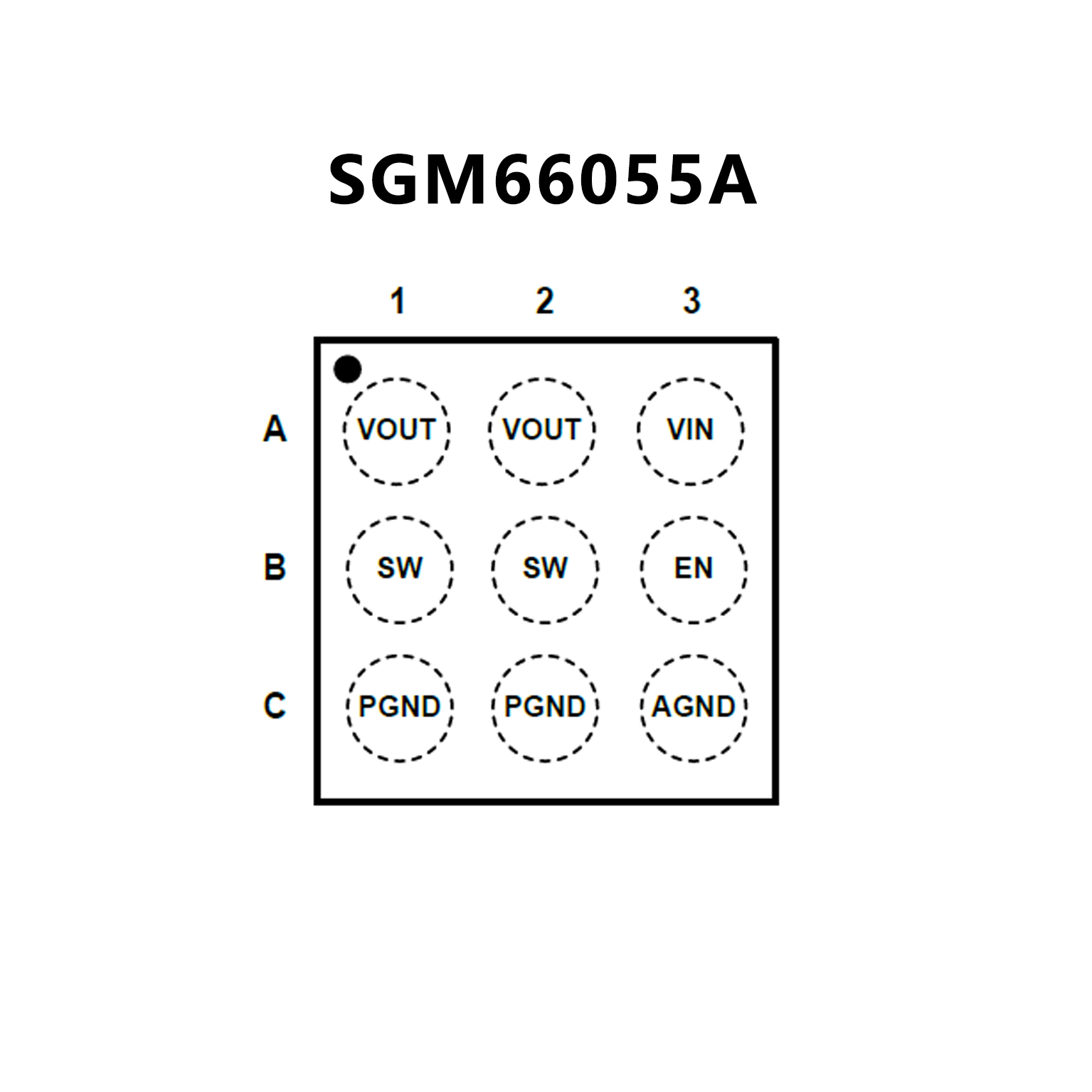

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 2.5 V B 4.8 V
? 3.0 V B 5.0 V
? 1 A (VOUT = 5.0 V, VIN ≥ 2.5 V)
? 1.5 A (VOUT = 5.0 V, VIN ≥ 3.0 V)
? 94%9 NO、1.215 mm × 1.215 mm、0.4 mm

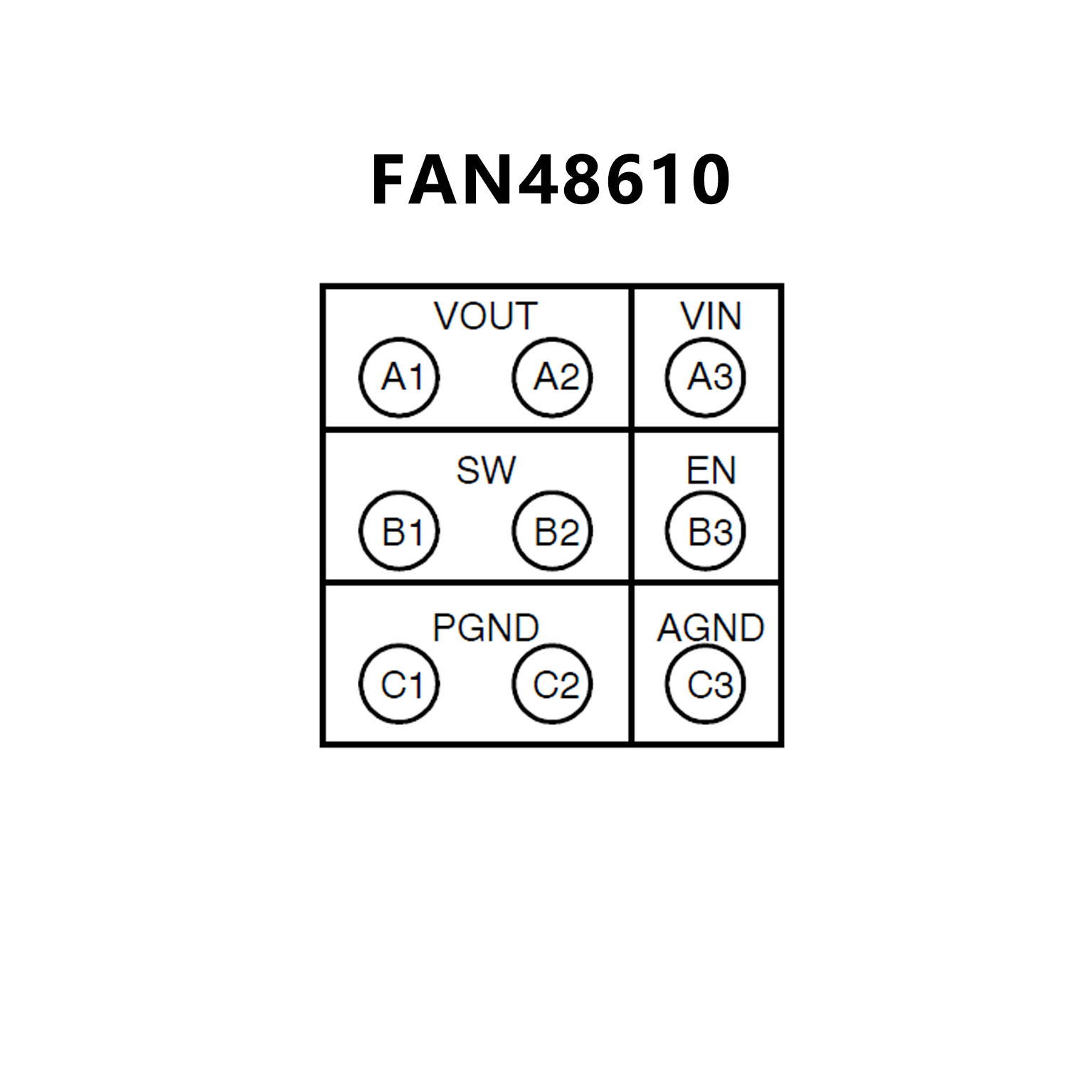

PIN CONFIGUTION
