Low Noise Operational Amplifier,SGM722 Replace TLV2622.
SGM722
SGM722.pdf
SGM722.pdfFEATURES
? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
SGM722/4: 1.1mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM722 Available in Green MSOP-8, SOIC-8 and
TSSOP-8 Packages
PIN CONFIGUTION
優勢替代
TLV2622 TLV2622.pdf
TLV2622.pdf
FEATURES
? CMOS Rail-To-Rail Output
? VICR Includes Positive Rail
? Wide Bandwidth . . . 11 MHz
? Slew Rate . . . 10 V/?s
? Supply Current . . . 800 ?A/Channel
? Input Noise Voltage . . . 27 nV/√Hz
? Ultralow Power-Down Mode:
IDD(SHDN) = 4 ?A/Channel
? Supply Voltage Range . . . 2.7 V to 5.5 V
? Specified Temperature Range:
-40°C to 125°C . . . Industrial Grade
? Ultrasmall Packaging:
5 or 6 Pin SOT-23 (TLV2620/1)
8 or 10 Pin MSOP (TLV2622/3)
? Universal Opamp EVM (See SLOU060 for More
Information)

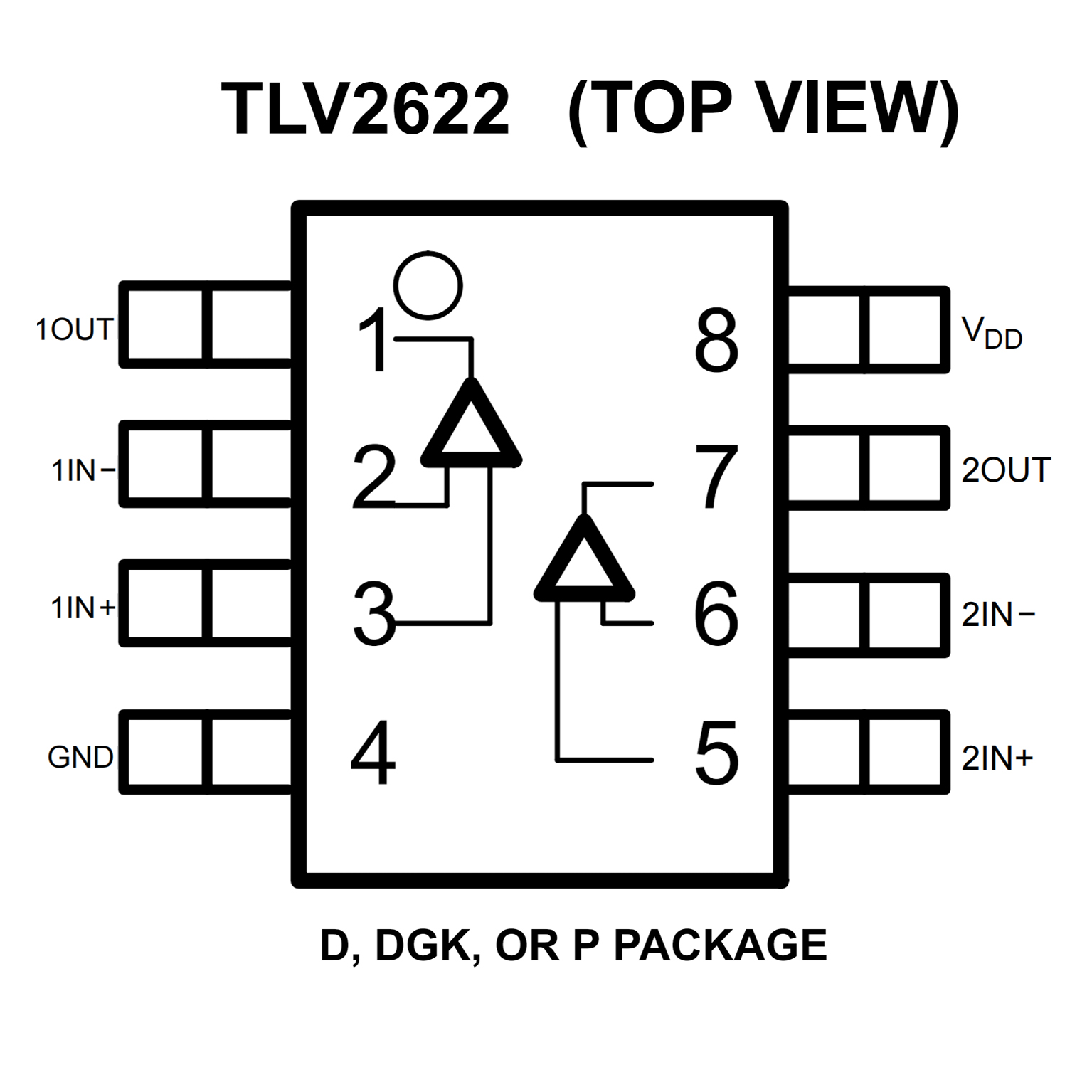

PIN CONFIGUTION
