Nano power operational Amplifier,SGM8044 Replace MCP6034.
SGM8044
SGM8044.pdf
SGM8044.pdfFEATURES
? Low Quiescent Current: 670nA/Amplifier (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 15kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-14, TSSOP-14 and
TQFN-3×3-16L Packages
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Rail-to-Rail Input and Output
? Low Offset Voltage: ±150 ?V (maximum)
? Ultra Low Quiescent Current: 0.9 ?A (typical)
? Wide Power Supply Voltage: 1.8V to 5.5V
? Gain Bandwidth Product: 10 kHz (typical)
? Unity Gain Stable
? Chip Select (CS) capability: MCP6033
? Extended Temperature Range:
-40°C to +125°C
? No Phase Reversal

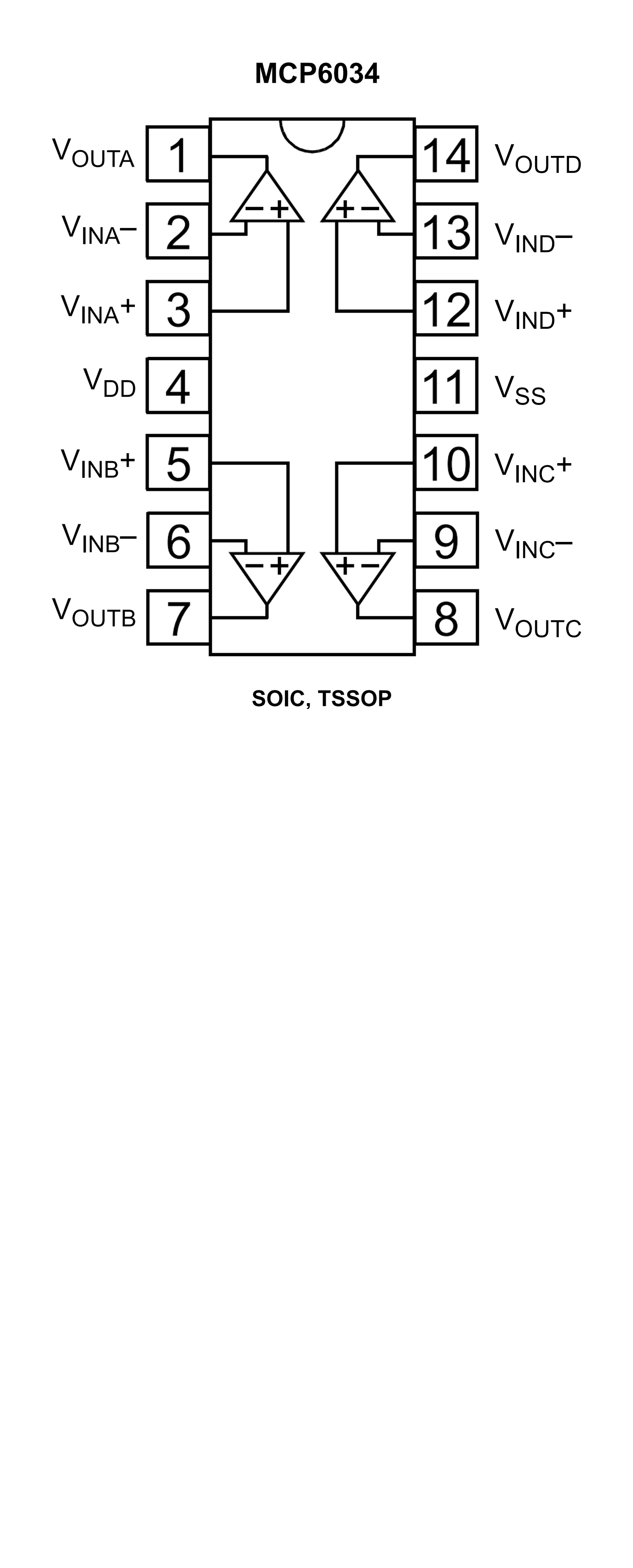

PIN CONFIGUTION
