SGM8049-4.pdf· Low Noise: 3.5μVP-P (0.1Hz to 10Hz)
· Wide Supply Voltage Range: 1.8V to 5.5V
· Low Quiescent Current: 2.5μA/Amplifier (TYP)
· Low Offset Voltage: 0.85mV (MAX)
· DC Precision:
-CMRR: 100dB
-PSRR: 2.5μV/V
-AOL: 118dB
· -40℃ to +125℃ Operating Temperature Range
· Small Packaging:

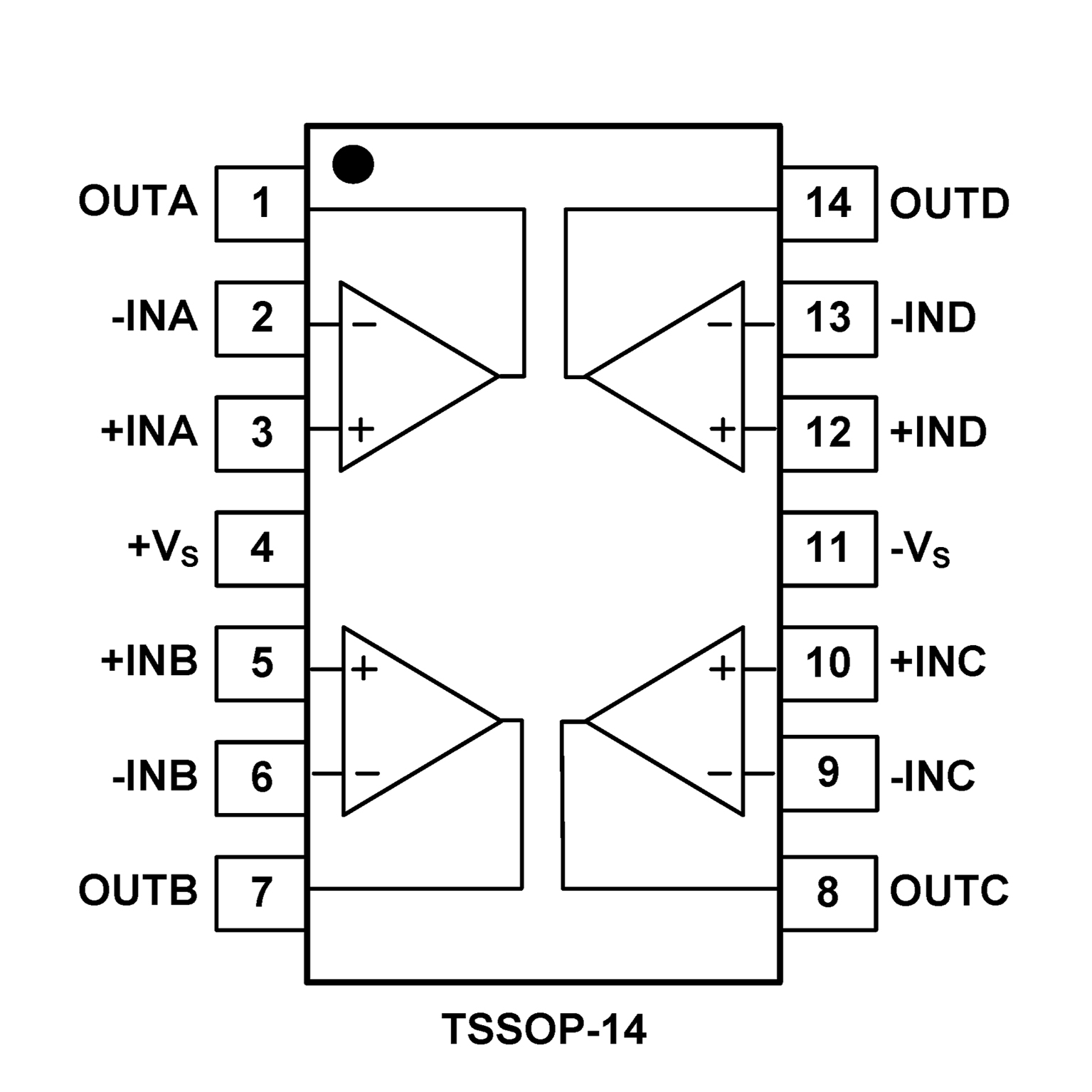

-SGM8049-4 Available in Green TSSOP-14 Package
? Low Quiescent Current:
- 4.4 ?A/amplifier (typical)
? Low Input Offset Voltage:
- ±1.0 mV (maximum)
? Enhanced EMI Protection:
- Electromagnetic Interference Rejection Ratio
(EMIRR) at 1.8 GHz: 97 dB
? Supply Voltage Range: 1.8V to 5.5V
? Gain Bandwidth Product: 90 kHz (typical)
? Rail-to-Rail Input/Output
? Slew Rate: 0.05 V/?s (typical)
? Unity Gain Stable
? No Phase Reversal
? Small Packages:
- Singles in SC70-5, SOT-23-5
- Dual in MSOP-8, SOIC-8

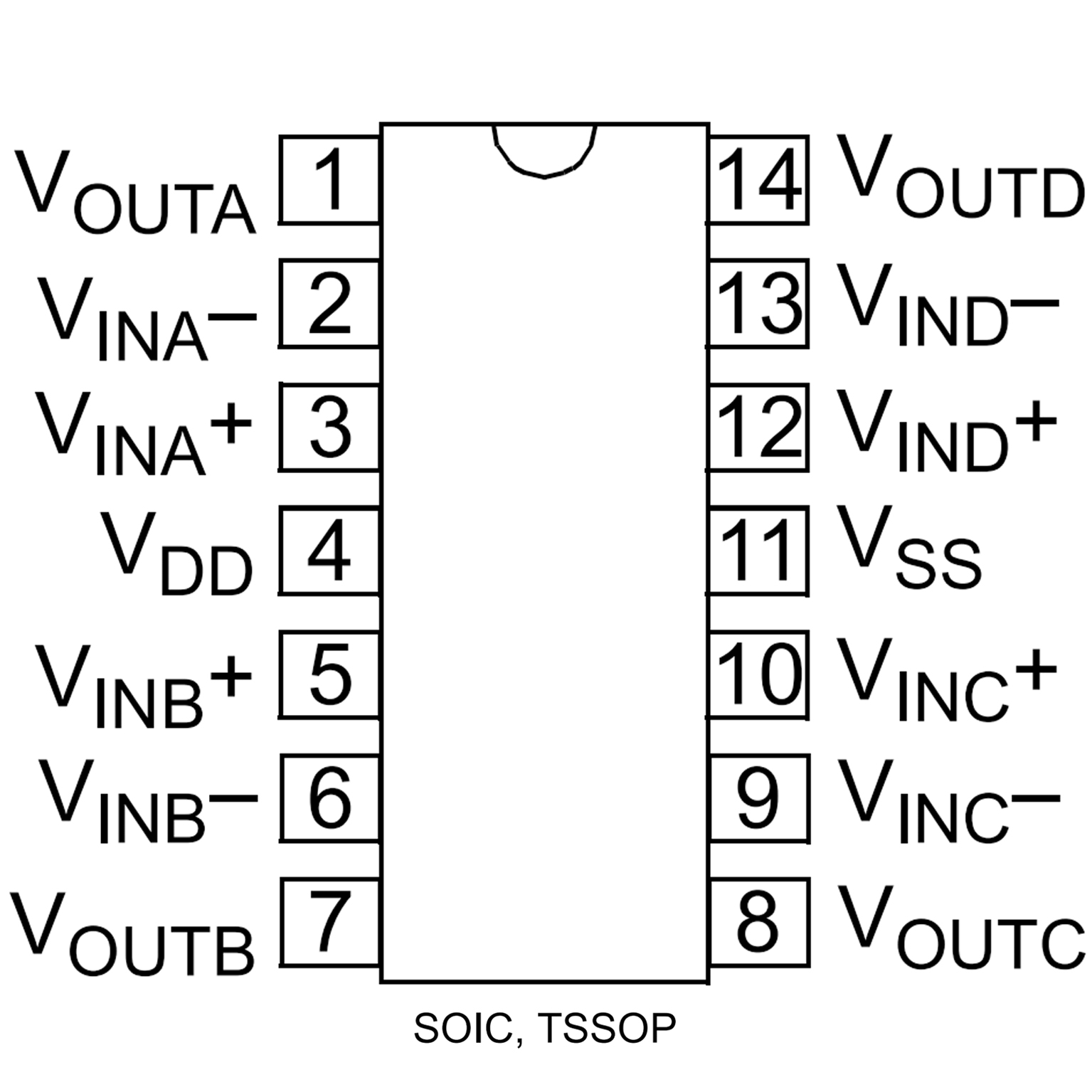

- Quad in SOIC-14, TSSOP-14
? Extended Temperature Range:
- -40°C to +125°C
