Micro Power operational Amplifier,SGM8049 4-Replace OPA4379.
SGM8049-4
SGM8049-4.pdf
SGM8049-4.pdfFEATURES
? Low Noise: 3.5μVP-P (0.1Hz to 10Hz)
? Wide Supply Voltage Range: 1.8V to 5.5V
? Low Quiescent Current: 2.5μA/Amplifier (TYP)
? Low Offset Voltage: 0.85mV (MAX)
? DC Precision:
CMRR: 100dB
PSRR: 2.5μV/V
AOL: 118dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8049-4 Available in Green TSSOP-14 Package

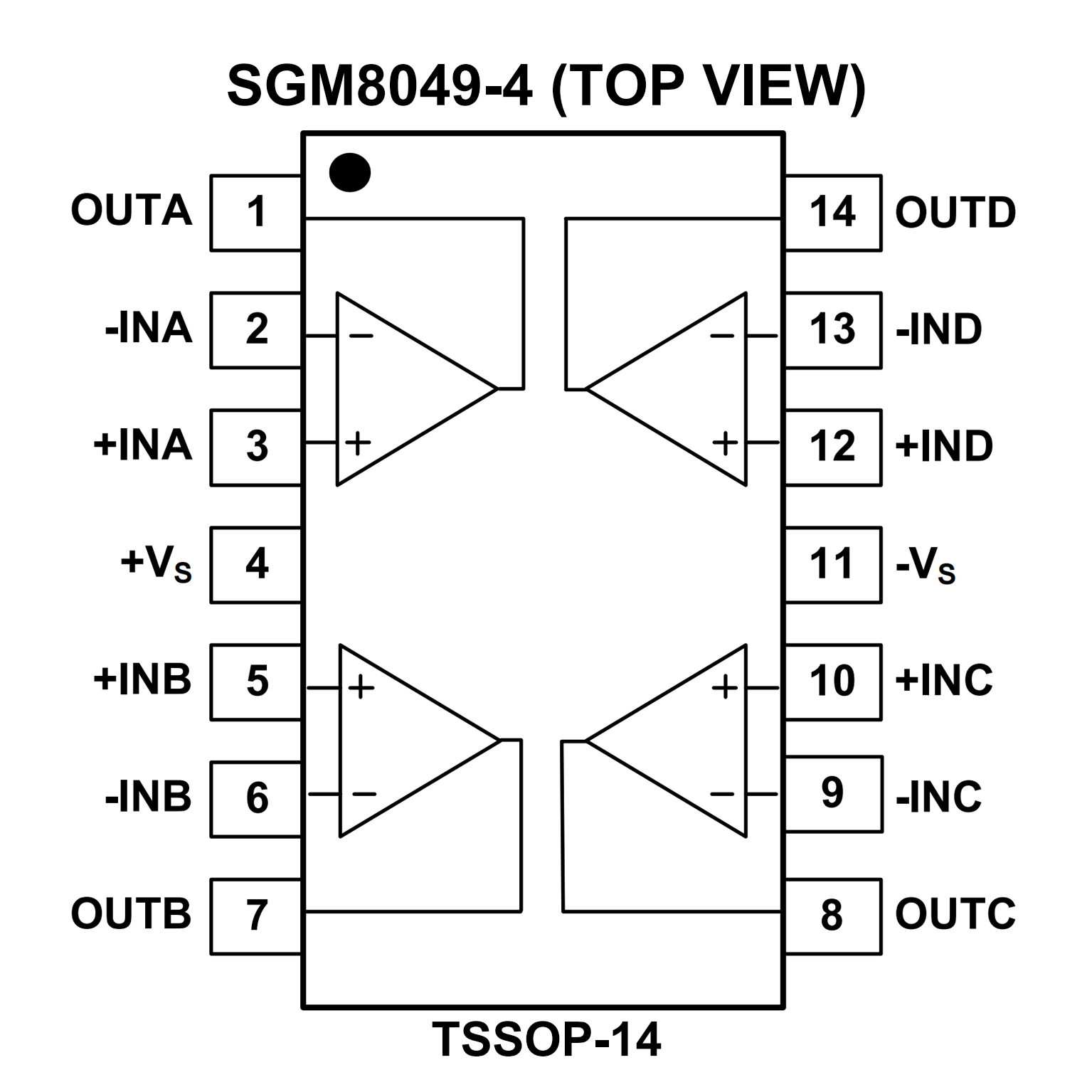

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? LOW NOISE: 2.8?VPP (0.1Hz - 10Hz)
? microPower: 5.5?A (max)
? LOW OFFSET VOLTAGE: 1.5mV (max)
? DC PRECISION:
CMRR: 100dB
PSRR: 2?V/V
AOL: 120dB
? WIDE SUPPLY VOLTAGE RANGE: 1.8V to 5.5V
? microSize PACKAGES:
SC70-5, SOT23-5, SOT23-8, SO-8, TSSOP-14
PIN CONFIGUTION
