High Speed Operational Amplifier, SGM80582 Replace TPH2502.
SGM80582
SGM80582.pdf
SGM80582.pdfFEATURES
? Unity-Gain Bandwidth: 220MHz
? Wide Bandwidth: 100MHz GBP
? High Slew Rate: 160V/μs
? Low Noise: 7nV/ Hz at 1MHz
? Rail-to-Rail Input and Output
? High Output Current: 150mA (TYP)
? Excellent Video Performance:
- Diff Gain: 0.01%, Diff Phase: 0.1°
- 0.1dB Gain Flatness: 30MHz
? Low Input Bias Current: 2pA
? Quiescent Current: 4.5mA/Amplifier (TYP)
? 2.5V to 5.5V Single Supplies or ±1.25V to ±2.75V
Dual Power Supplies

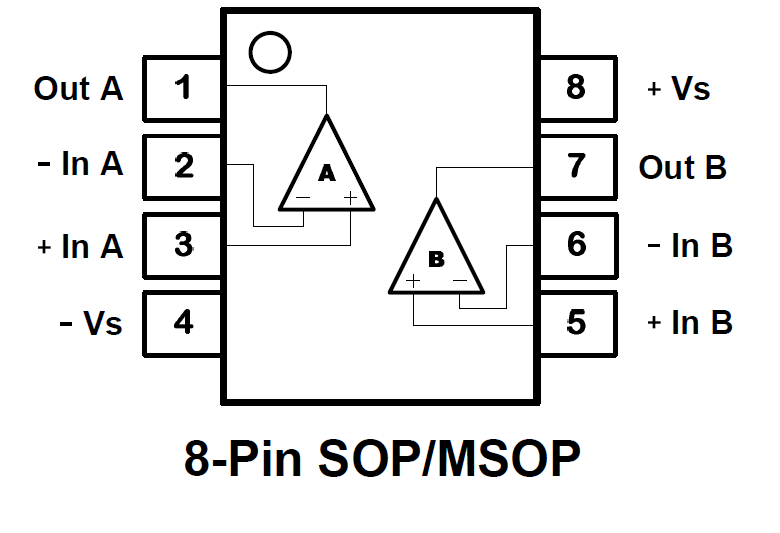

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Unity-Gain Bandwidth: 250MHz
? Gain Bandwidth Product: 120MHz
? High Slew Rate: 180V/μs
? Offset Voltage: 500μV Max.
? Low Noise: 6.5nV/√Hz
? Rail-to-Rail Input and Output
? High Output Current: > 100mA
? Excellent Video Performance:
Diff Gain: 0.02%, Diff Phase: 0.3°
0.1dB Gain Flatness: 25MHz
? Low Input Bias Current: 0.3pA
? Thermal Shutdown
? Supply Range: 2.5V to 5.5V

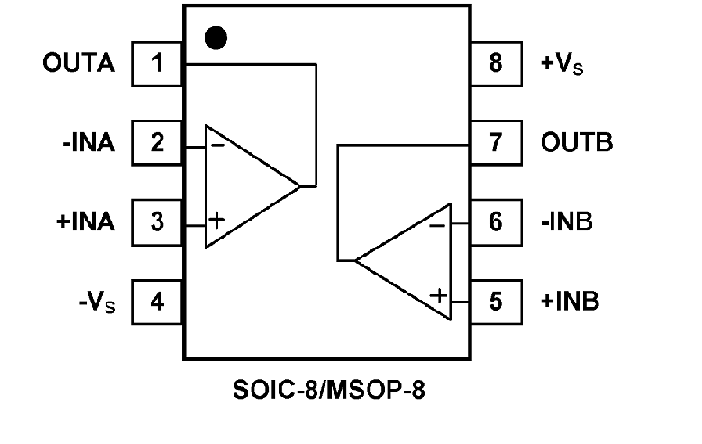

PIN CONFIGUTION
