Nano Power Operational Amplifier, Replace LPV521
SGM8141
SGM8141.pdf
SGM8141.pdfFEATURES
? Low Quiescent Current: 380nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8
Packages

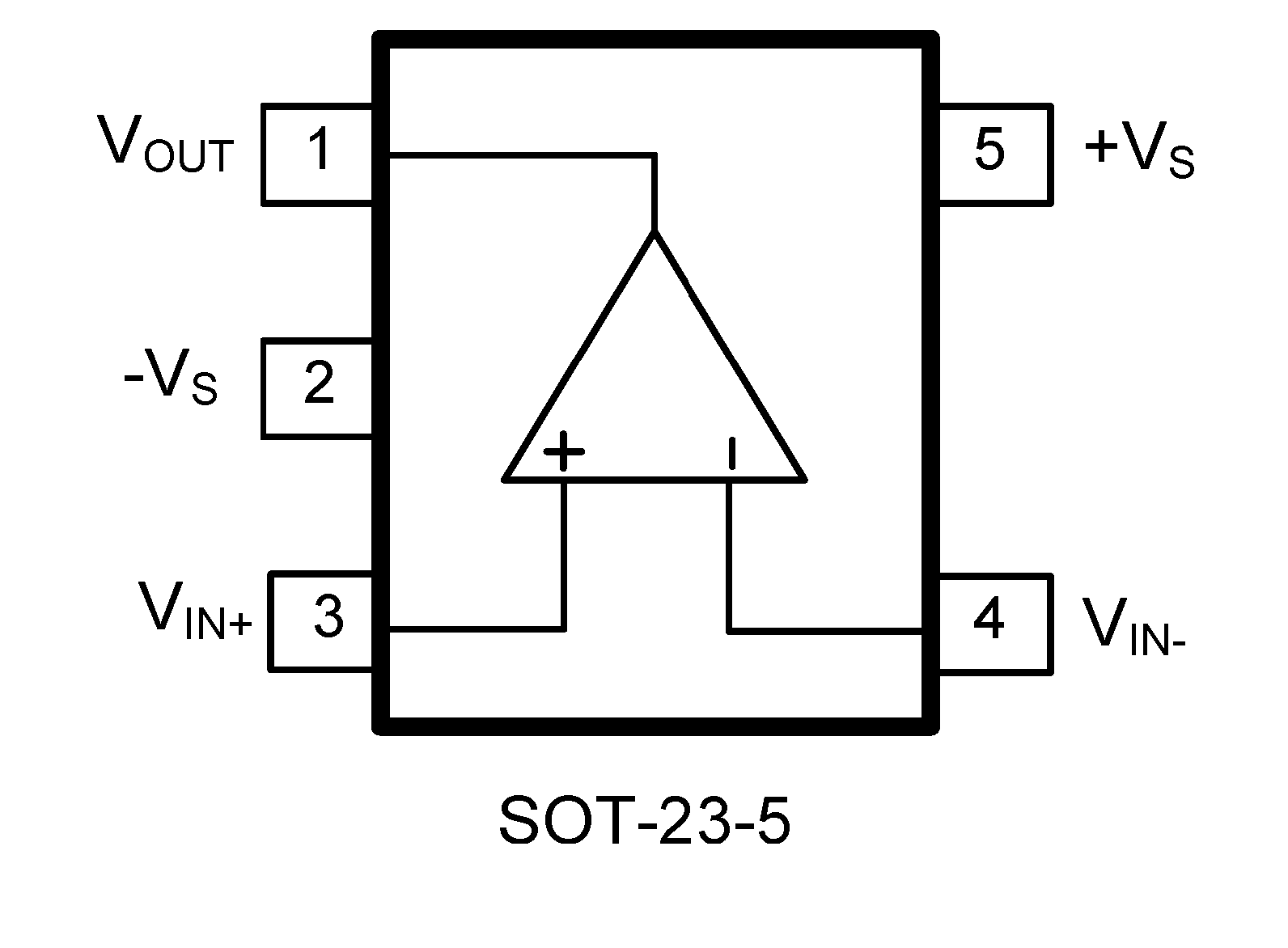

PIN CONFIGUTION
優勢替代
FEATURES
? For VS = 5 V, Typical Unless Otherwise Noted
? Supply Current at VCM = 0.3 V 400 nA (Max)
? Operating Voltage Range 1.6 V to 5.5 V
? Low TCVOS 3.5 ?V/°C (Max)
? VOS 1 mV (Max)
? Input Bias Current 40 fA
? PSRR 109 dB
? CMRR 102 dB
? Open-Loop Gain 132 dB
? Gain Bandwidth Product 6.2 kHz
? Slew Rate 2.4 V/ms

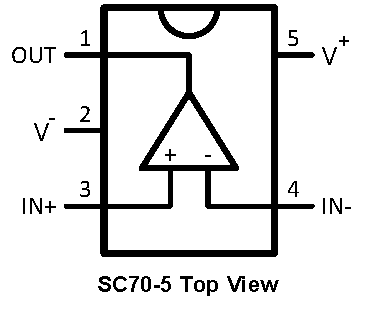

PIN CONFIGUTION
