SGM8212-1Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Input Offset Voltage: ±1.8mV (MAX)
? Low Input Bias Current: ±10pA (TYP)
? High CMRR: 98dB (TYP)
? Unity-Gain Stable
? Gain-Bandwidth Product: 2.5MHz
? Phase Margin: 60° for G = +1 and CL = 10pF
? Low Noise: 18nV/√Hz at 1kHz
? Rail-to-Rail Input and Output
? Support Single or Dual Power Supplies:
2.7V to 36V or ±1.35V to ±18V
? Low Quiescent Current: 530μA/Amplifier
? Small Packaging:

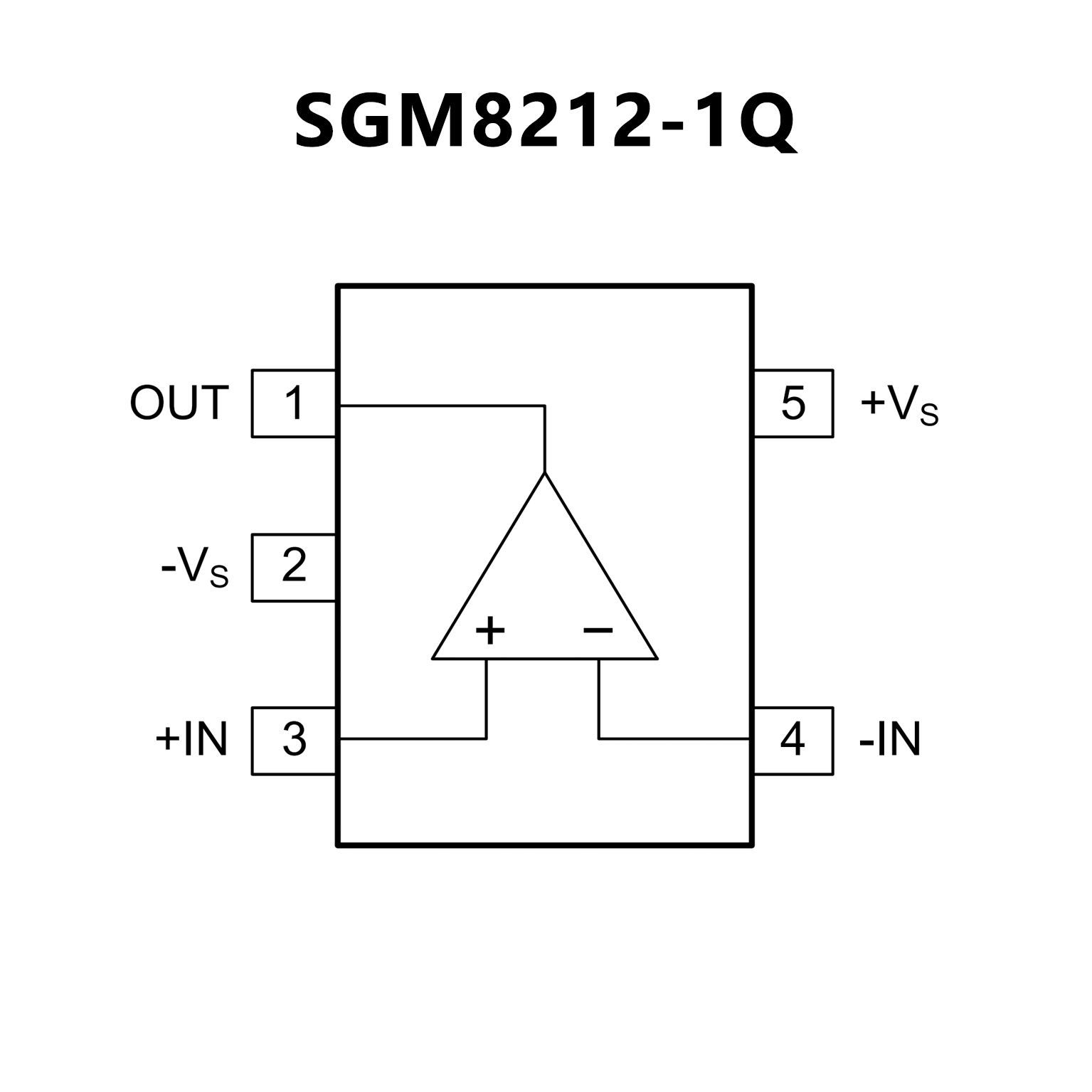

SGM8212-1Q Available in a Green SOT-23-5 Package
SGM8212-2Q Available in a Green SOIC-8 Package
? Qualified for Automotive Applications
Device Temperature Grade 1:
40°C to +125°C Ambient Operating Temperature
Device HBM ESD Classification Level:

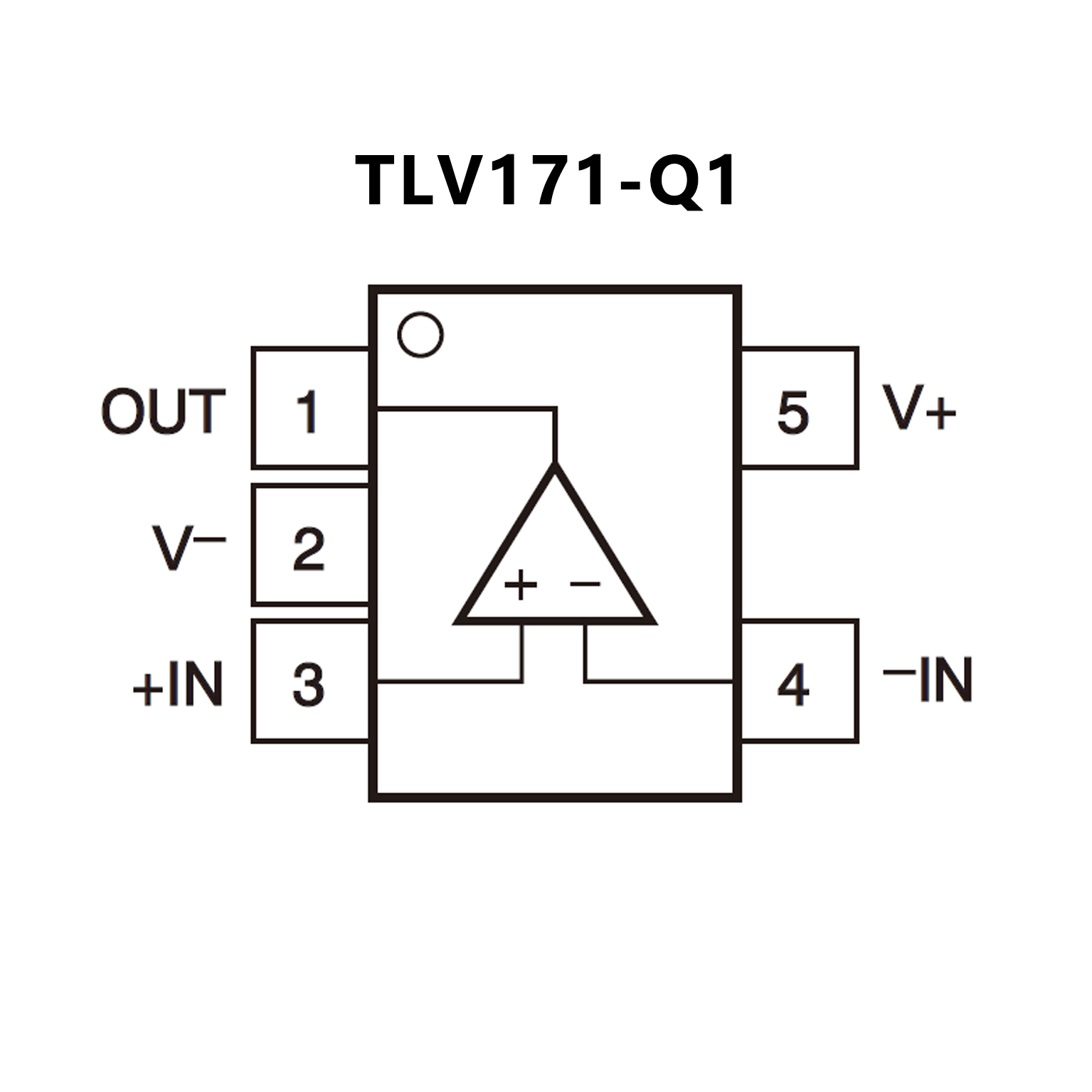

Level 3A for TLV171-Q1 and TLV2171-Q1
Level 2 for TLV4171-Q1
Device CDM ESD Classification Level
Level C4A for TLV171-Q1
Level C6 for TLV2171-Q1and TLV4171-Q1
Single-Supply: 4.5 V to 36 V
Dual-Supply ±2.25 V to ±18 V
? Low Noise: 16 nV/√Hz at 1 kHz
? Low Offset Drift: ±1 ?V/°C (Typical)
? Input Range Includes Negative Supply
? Input Range Operates to Positive Supply With
? Rail-to-Rail Output
? Gain Bandwidth: 3 MHz
? Low Quiescent Current: 525 ?A per Amplifier
? Common-Mode Rejection: 120 dB (Typical)
? Low Input Bias Current: 10 pA
? Offset Voltage vs Common-Mode Voltage: VSUPPLY
