High precision Operational Amplifier,SGM8255-4 Replace OPA4192.
SGM8255-4
SGM8255-4.pdf
SGM8255-4.pdfFEATURES
? Low Offset Voltage: 20μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Voltage Gain: 133dB (TYP)
? PSRR: 141dB (TYP)
? CMRR: 112dB (TYP)
? 0.1Hz to 10Hz Noise: 0.48μVP-P
? 25nV/ Hz Voltage Noise Density at 1kHz
? Gain-Bandwidth Product: 9MHz
? Low Supply Current: 800μA/Amplifier (TYP)
? Overload Recovery Time: 0.7μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8255-4 Available in Green SOIC-14 Package

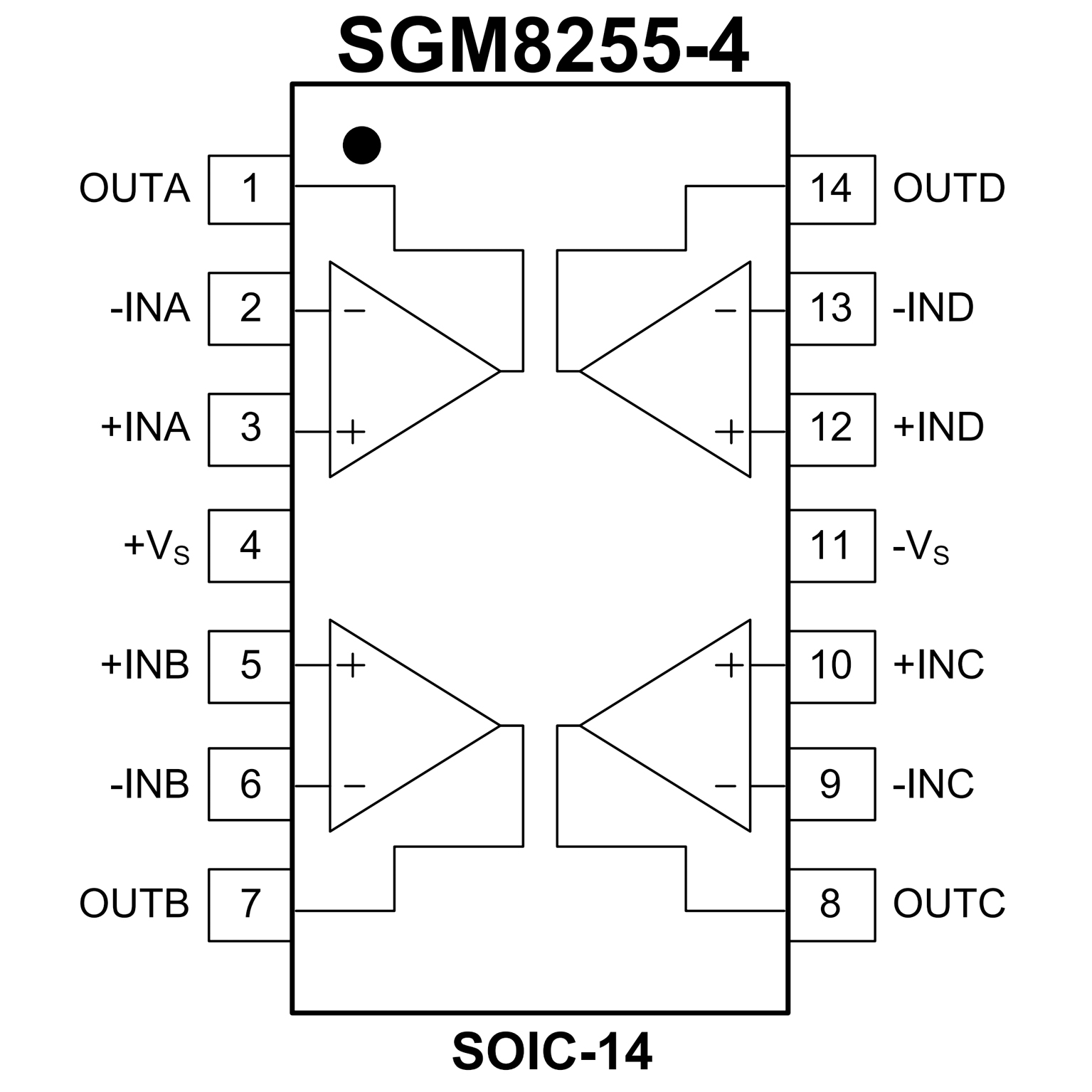

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Offset Voltage: ±5 ?V
? Low Offset Voltage Drift: ±0.2 ?V/°C
? Low Noise: 5.5 nV/√Hz at 1 kHz
? High Common-Mode Rejection: 140 dB
? Low Bias Current: ±5 pA
? Rail-to-Rail Input and Output
? Wide Bandwidth: 10 MHz GBW
? High Slew Rate: 20 V/?s
? Low Quiescent Current: 1 mA per Amplifier
? Wide Supply: ±2.25 V to ±18 V, +4.5 V to +36 V
? EMI/RFI Filtered Inputs
? Differential Input Voltage Range to Supply Rail
? High Capacitive Load Drive Capability: 1 nF
? Industry Standard Packages:
Single in SOIC-8, SOT-5, and VSSOP-8
Dual in SOIC-8 and VSSOP-8
Quad in SOIC-14 and TSSOP-14
PIN CONFIGUTION
