Micro Power Operational Amplifier, Replace TLV4171
SGM8273-4
SGM8273-4.pdf
SGM8273-4.pdfFEATURES
? Wide Input Common Mode and Differential
Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 1mV (MAX)
? Low Noise: 9nV/ Hz at 1kHz
? Gain-Bandwidth Product: 4MHz
? High Slew Rate: 6V/?s
? Small Packaging:
SGM8273-4 Available in Green SOIC-14 Package

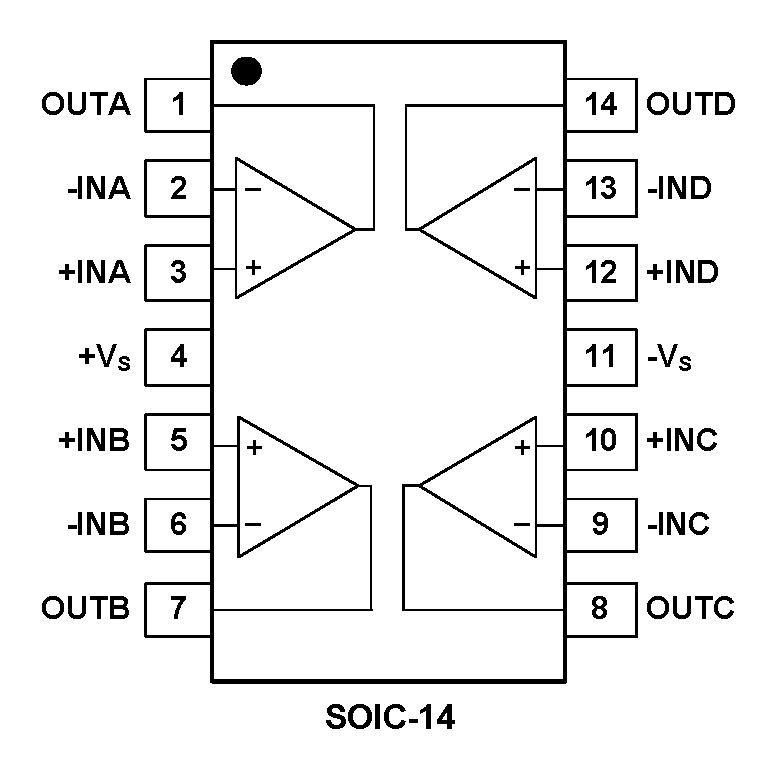

PIN CONFIGUTION
優勢替代
FEATURES
? Supply Range: 2.7 V to 36 V, ±1.35 V to ±18 V
? Low Noise: 16 nV/√Hz
? Low Offset Drift: ±1 μV/°C (typical)
? EMI-Hardened with RFI-Filtered Inputs
? Input Range Includes the Negative Supply
? Unity-Gain Stable: 200-pF Capacitive Load
? Rail-to-Rail Output
? Gain Bandwidth: 3 MHz
? Low Quiescent Current: 525 μA per Amplifier
? High Common-Mode Rejection: 105 dB (typical)
? Low Bias Current: 10 pA

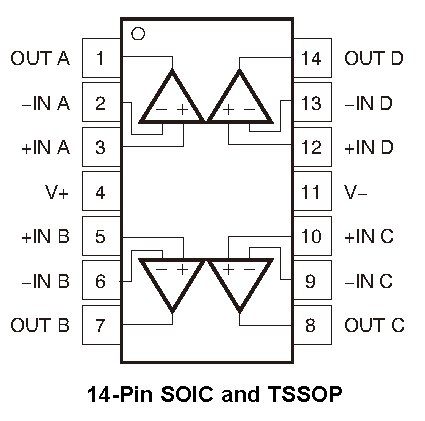

PIN CONFIGUTION
