High precision Operational Amplifier, SGM8294 Replace TLV2254.
SGM8294
SGM8294.pdf
SGM8294.pdfFEATURES
? Low Power Consumption: 150?A/Amplifier
? Low Offset Voltage: 1.5mV (MAX)
? Wide Input Common Mode Voltage Range
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Rail-to-Rail Output
? High Input Impedance
? High Slew Rate: 7V/?s
? Small Packaging:
SGM8294 Available in Green TSSOP-14 and SOIC-14

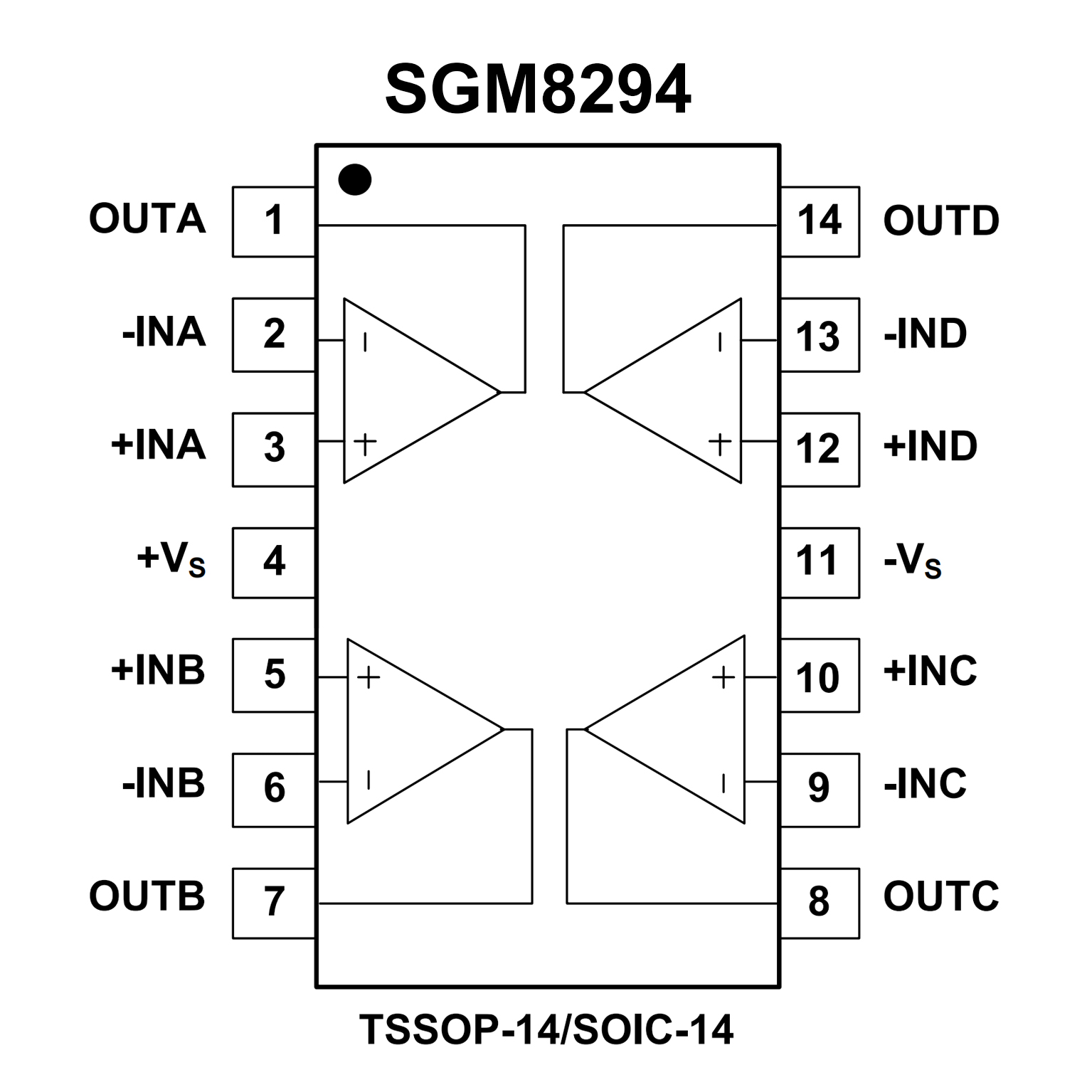

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Output Swing Includes Both Supply Rails
? Low Noise . . . 19 nV/√Hz Typ at f = 1 kHz
? Low Input Bias Current . . . 1 pA Typ
? Fully Specified for Both Single-Supply and
Split-Supply Operation
? Very Low Power . . . 34 ?A Per Channel Typ
? Common-Mode Input Voltage Range
Includes Negative Rail
? Low Input Offset Voltage
850 ?V Max at TA = 25°C
? Wide Supply Voltage Range
2.7 V to 8 V
? Macromodel Included
? Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards

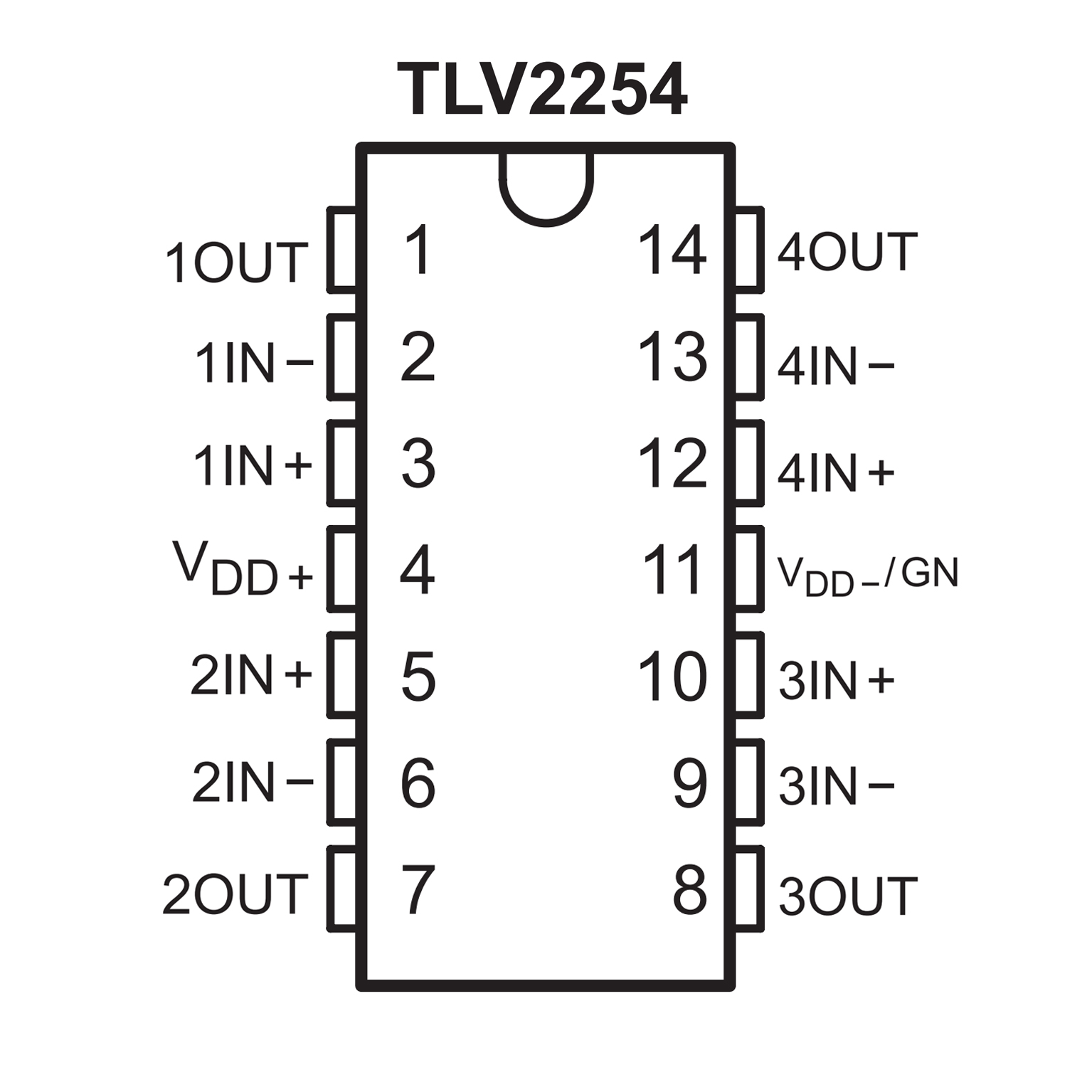

PIN CONFIGUTION
