SGM8302.pdf? 4.5V to 12V Single Supplies or ±2.25V to ±6V
Dual Power Supplies
? High Speed
100MHz -3dB Bandwidth
56MHz -0.1dB Gain Flatness
155V/?s Slew Rate
? Rail-to-Rail Output
? Low Differential Gain/Phase: 0.02%/0.02°
? High Output Drive: 103mA
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:

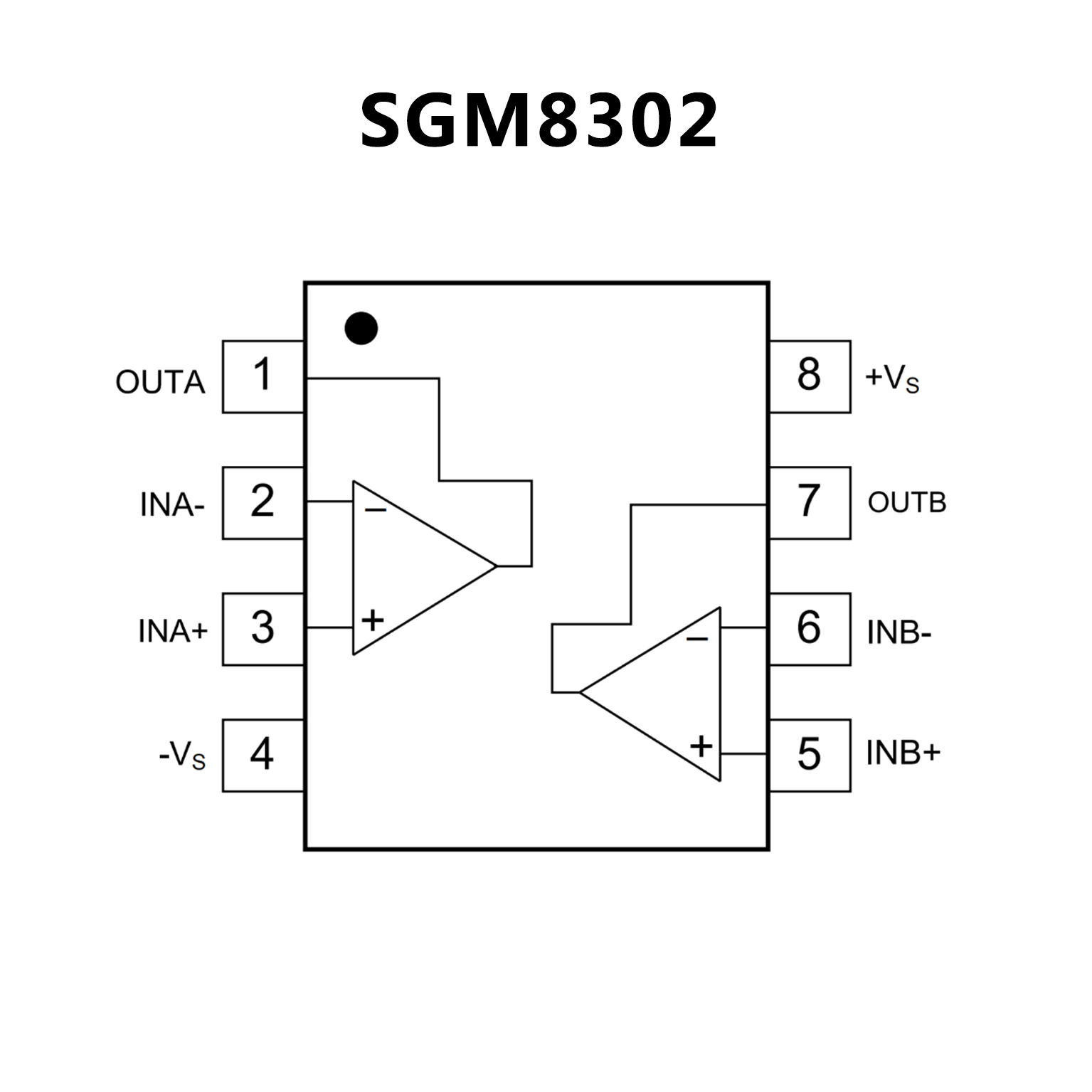

SGM8302 Available in MSOP-8 and SOIC-8
(VS = ±5 V, TA = 25°C, RL = 2 k?, AV = +1. Typical Values Unless Specified).? ?3 dB BW (AV = +1) 130 MHz
? Supply Voltage Range 2.7 V to 12.8 V
? Slew Rate, (AV = ?1) 130V/?s
? Supply Current (no load) 2.7 mA/amp
? Output Short Circuit Current +115 mA to 145 mA
? Linear Output Current ±75 mA
? Input Common Mode Volt. 0.5 V Beyond V?, 1 V from V+
? Output Voltage Swing 40 mV from Rails
? Input Voltage Noise (100 kHz) 17nV/√Hz
? Input Current Noise (100 kHz) 0.9pA/√Hz
? THD (5 MHz, RL = 2 k?, VO = 2 VPP, AV = +2) ?62 dBc
? Settling Time 68 ns
? Fully Characterized for 3 V, 5 V, and ±5 V
? Overdrive Recovery 100 ns
? Output Short Circuit Protected?
? No Output Phase Reversal with CMVR Exceeded
