SGM836.pdf? Adjustable Reset Timeout Period: 1.25ms to 10s
? Low Quiescent Current: 0.6μA (TYP)
? High Threshold Accuracy: 1% (TYP)
? Factory-Set Detection Voltages from 0.9V
to 5V and Adjustable Detection Voltage Down to 0.4V
? Manual Reset (nMR) Input
? Open-Drain nRESET Output
? -40℃ to +125℃ Operating Temperature Range

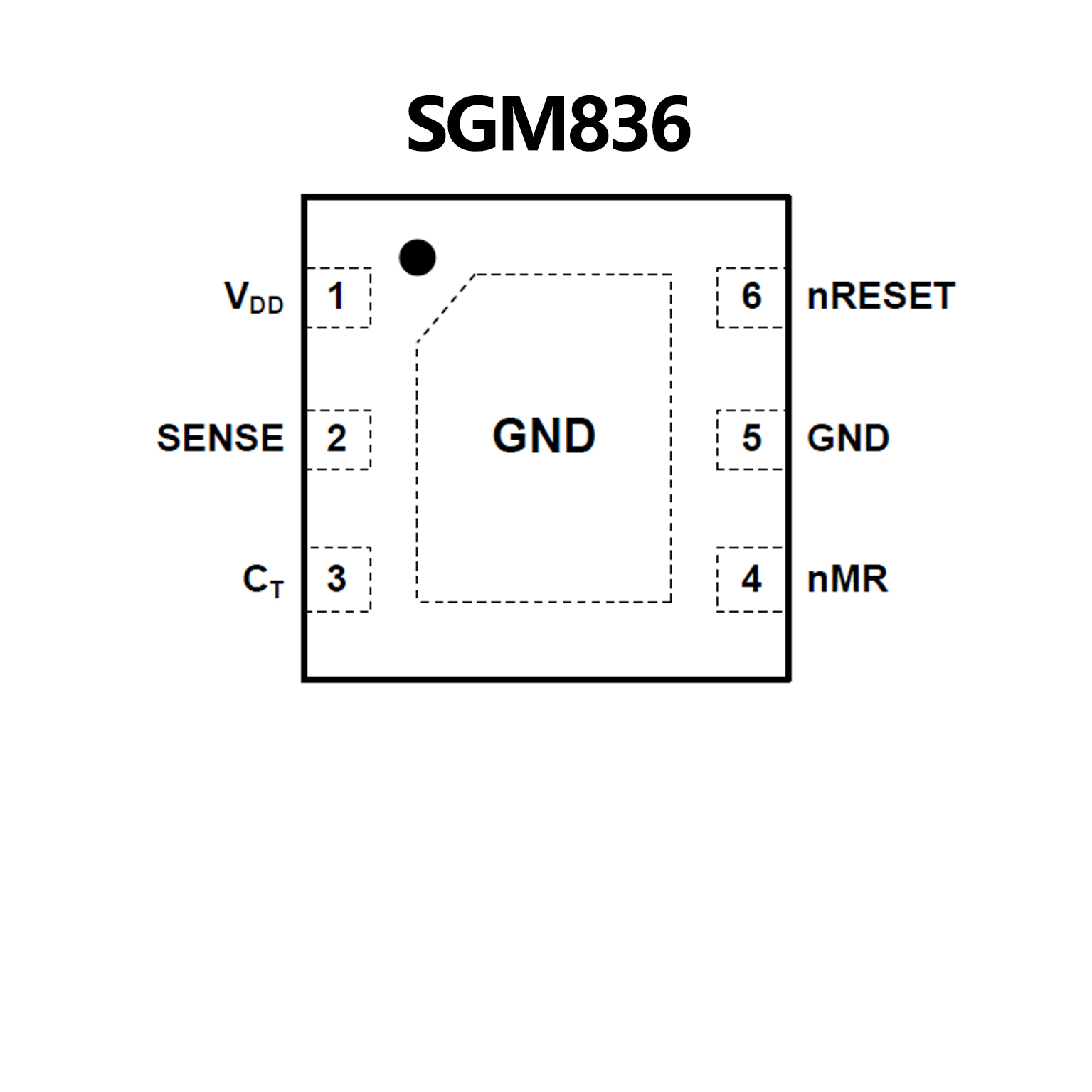

? Available in Green SOT-23-6 and TDFN-2×2-6AL Packages
? Fixed Threshold Voltages for Standard
Voltage Rails From 0.9V to 5V and
Adjustable Voltage From 0.4V are Available
? Low Quiescent Current: 1.6uA typ
? Power-On Reset Generator with Adjustable
Delay Time: 2.1ms to 10s
? High Threshold Accuracy: ±1% typ
? Manual Reset (MR) Input
? Open-Drain RESET Output
? Immune to Short Negative SENSE voltage
? Guaranteed Reset Valid to VCC=0.8V

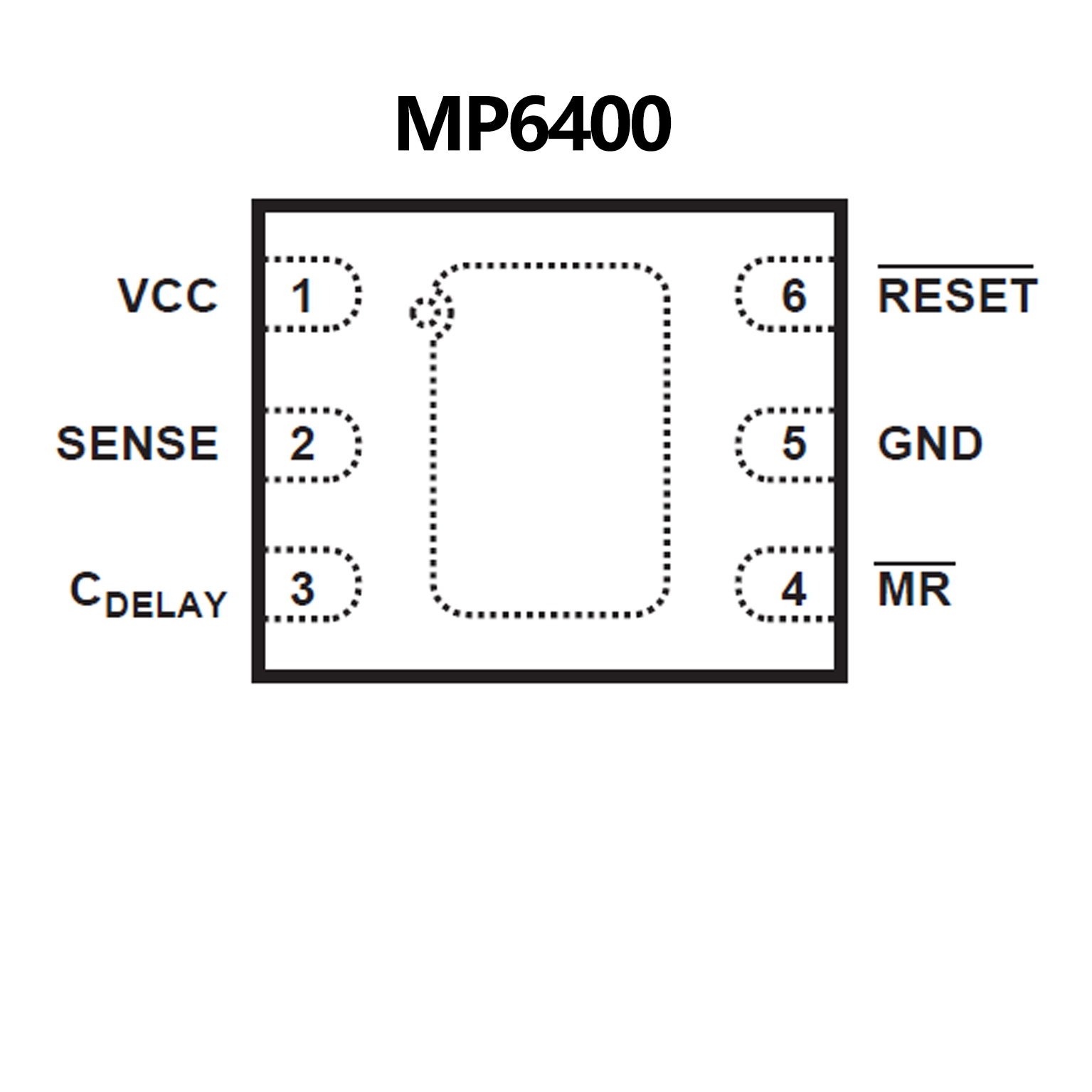

? 6 Pin TSOT23 and 2mm×2mm QFN
? DSP or Micro controller Applications
? Laptop/Desktop Computers
? PDAs/Hand-Held Products
? Portable/Battery-Powered Products
? FPGA/ASIC Applications
