Application-specific Operational Amplifier,SGM8426 Replace TL3472.
SGM8426
SGM8426.pdf
SGM8426.pdfFEATURES
? -3dB Bandwidth: 18MHz
? Supply Current/Amplifier: 1.6mA
? High Slew Rate: 16V/?s
? Beyond the Rails Input Capability
? Rail-to-Rail Output Swing
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8426 Available in SOIC-8 and MSOP-8 Packages

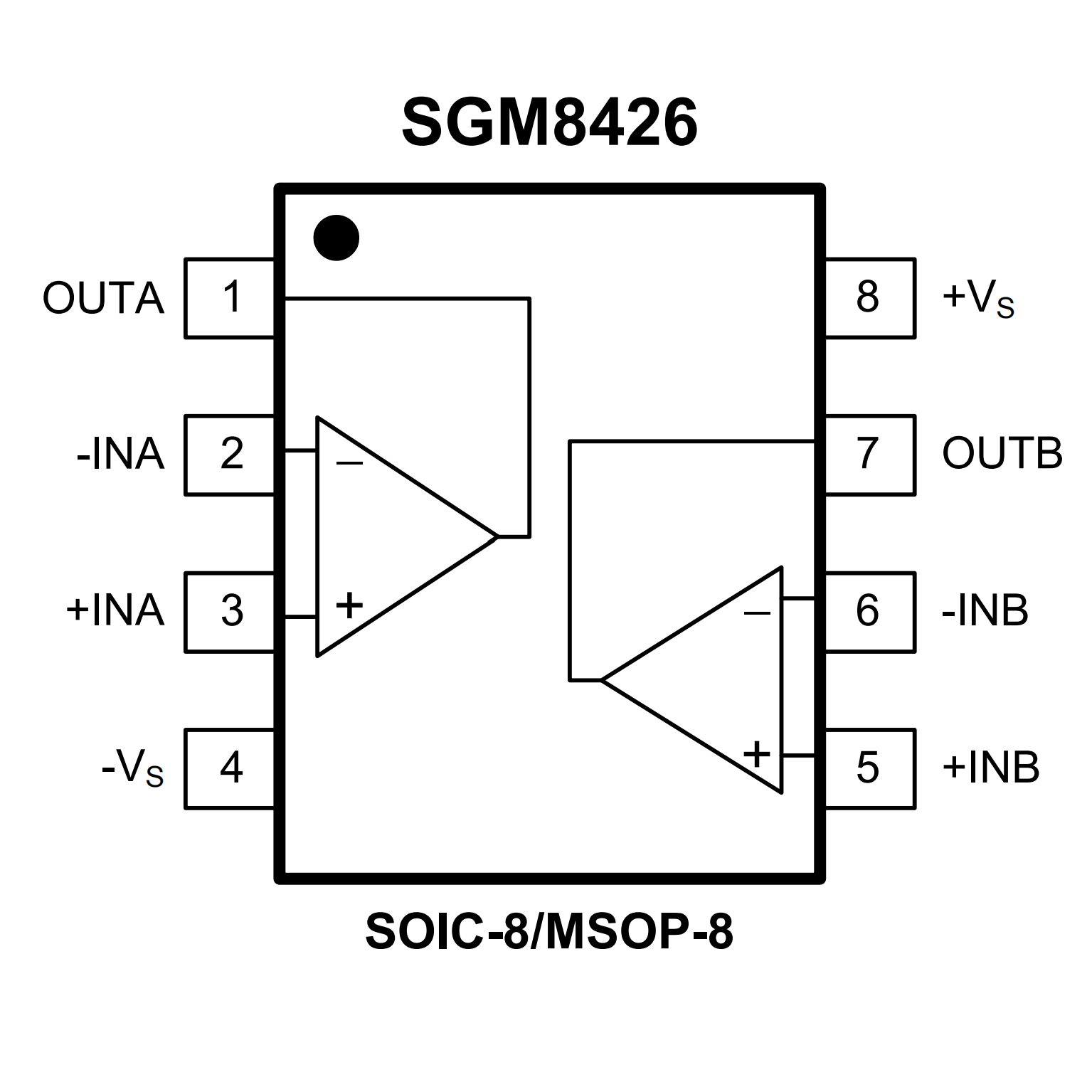

PIN CONFIGUTION
優勢替代
FEATURES
? Wide Gain-Bandwidth Product . . . 4 MHz
? High Slew Rate . . . 13 V/μs
? Fast Settling Time . . . 1.1 μs to 0.1%
? Wide-Range Single-Supply Operation . . . 4 V to 36 V
?Wide Input Common-Mode Range Includes Ground (VCC?)
? Low Total Harmonic Distortion . . . 0.02%
?Large-Capacitance Drive Capability . . . 10,000 pF
? Output Short-Circuit Protection

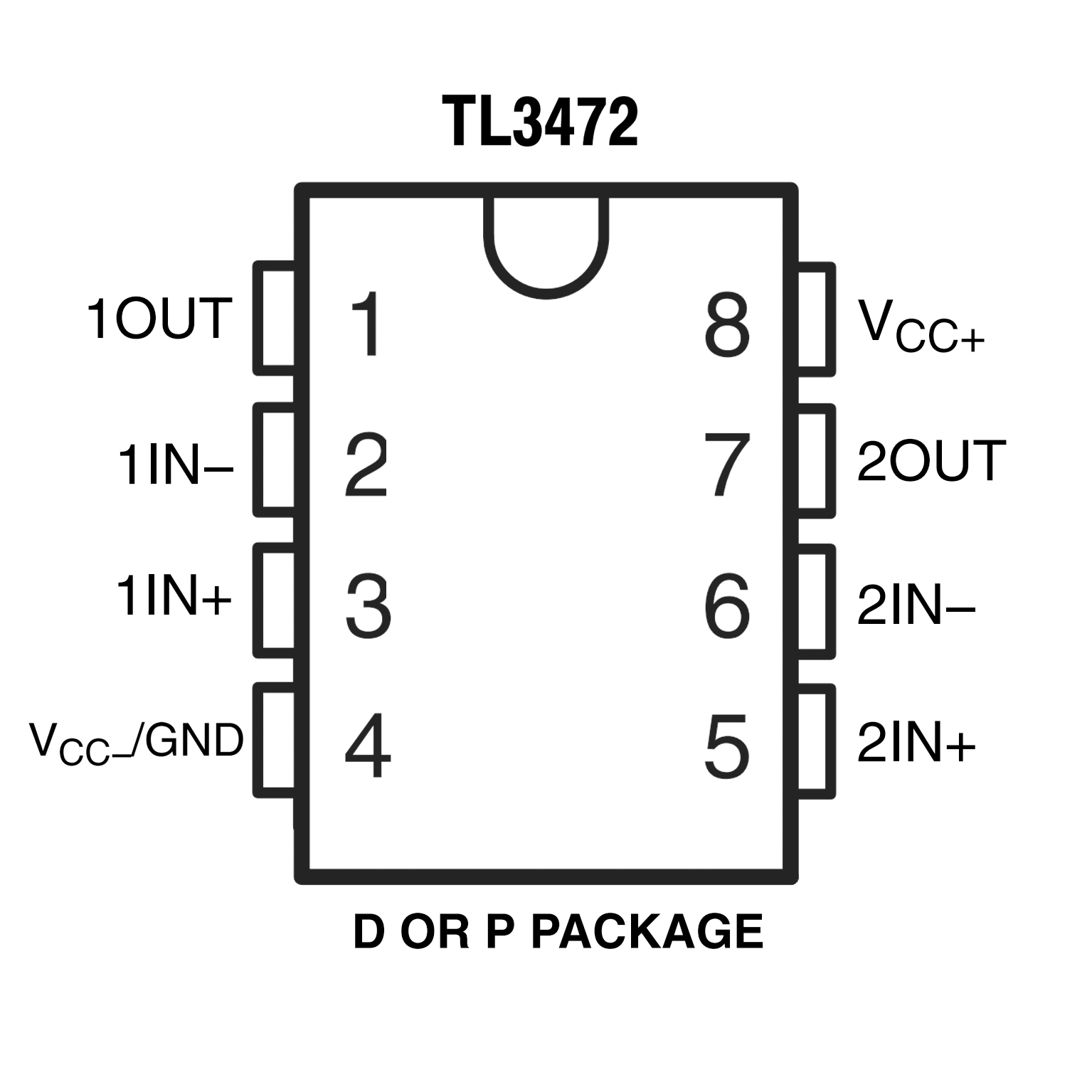

PIN CONFIGUTION
