Micro Power operational Amplifier,SGM8521 Replace TP1511.
SGM8521
SGM8521.pdf
SGM8521.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output 0.8mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 150kHz
? Very Low Input Bias Currents : 0.5pA
? Operates on 2.1V to 5.5V Supplies
? Input Voltage Range = -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 4.7?A/Amplifier
? Small Packaging
SGM8521 Available in SOIC-8 and SOT-23-5

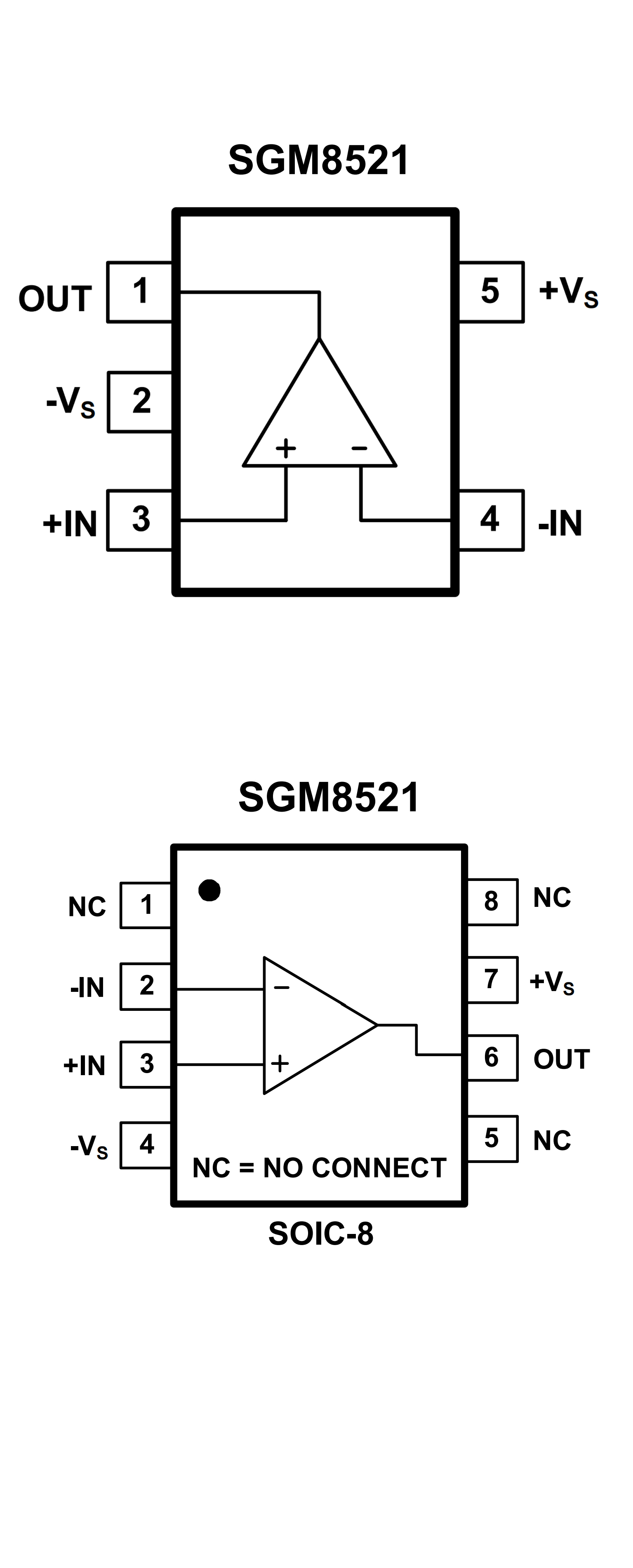

PIN CONFIGUTION
優勢替代
FEATURES
? Stable 150kHz GBWP Over Temperature Range
? Stable 150kHz GBWP in VCM from 0-V to VDD
? 0.09V/μs Slew Rate
? Only 4μA of Supply Current per Amplifier
? Shutdown Current: 0.1μA (TP1511N)
? Up to 55 Years Operation from 2 AA Alkaline-Cells
? Unity Gain Stable for ANY CAPACITIVE Load
? Offset Voltage: 3.0mV Maximum
? Offset Voltage Temperature Drift: 0.6 μV/°C
? Input Bias Current: 1pA Typical
? High CMRR/PSRR: 110dB
? No Phase Reversal for Overdriven Inputs
? Beyond the Rails Input Common-Mode Range
? Outputs Swing to within 5mV of Each Rail
? Single +2.1V to +6.0V Supply Voltage Range
? –40°C to 125°C Operation Range
? ESD Rating:
Robust 8KV – HBM, 2KV – CDM and 500V – MM
? Green, Popular Type Package

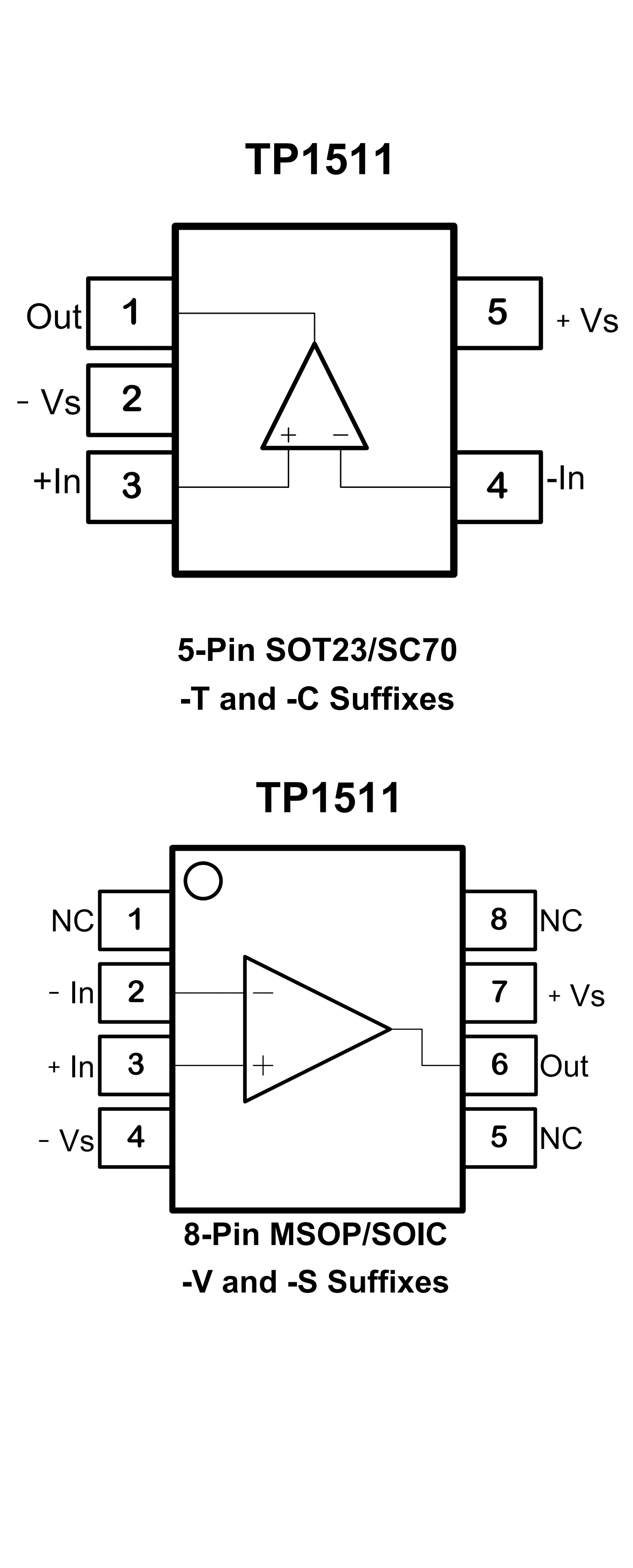

PIN CONFIGUTION
