Micro Power operational Amplifier,SGM8522 Replace TLC27L2.
SGM8522
SGM8522.pdf
SGM8522.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
0.8mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 150kHz
? Very Low Input Bias Currents : 0.5pA
? Operates on 2.1V to 5.5V Supplies
? Input Voltage Range = -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 4.7?A/Amplifier
? Small Packaging
SGM8522 Available in SOIC-8 and MSOP-8
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Trimmed Offset Voltage:TLC27L7 . . . 500 ?V Max at 25°C,
VDD = 5 V
? Input Offset Voltage Drift . . . Typically
0.1 ?V/Month, Including the First 30 Days
? Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C . . . 3 V to 16 V
?40°C to 85°C . . . 4 V to 16 V
?55°C to 125°C . . . 4 V to 16 V
? Single-Supply Operation
? Common-Mode Input Voltage Range Extends Below t
he Negative Rail (C-Suffix, I-Suffix Types)
? Ultra-Low Power ...Typically 95 ?W at 25°C, VDD = 5 V
? Output Voltage Range Includes Negative Rail
? High Input Impedance . . . 1012 ? Typ
? ESD-Protection Circuitry
? Small-Outline Package Option AlsoAvailable in
Tape and Reel
? Designed-In Latch-Up immunity

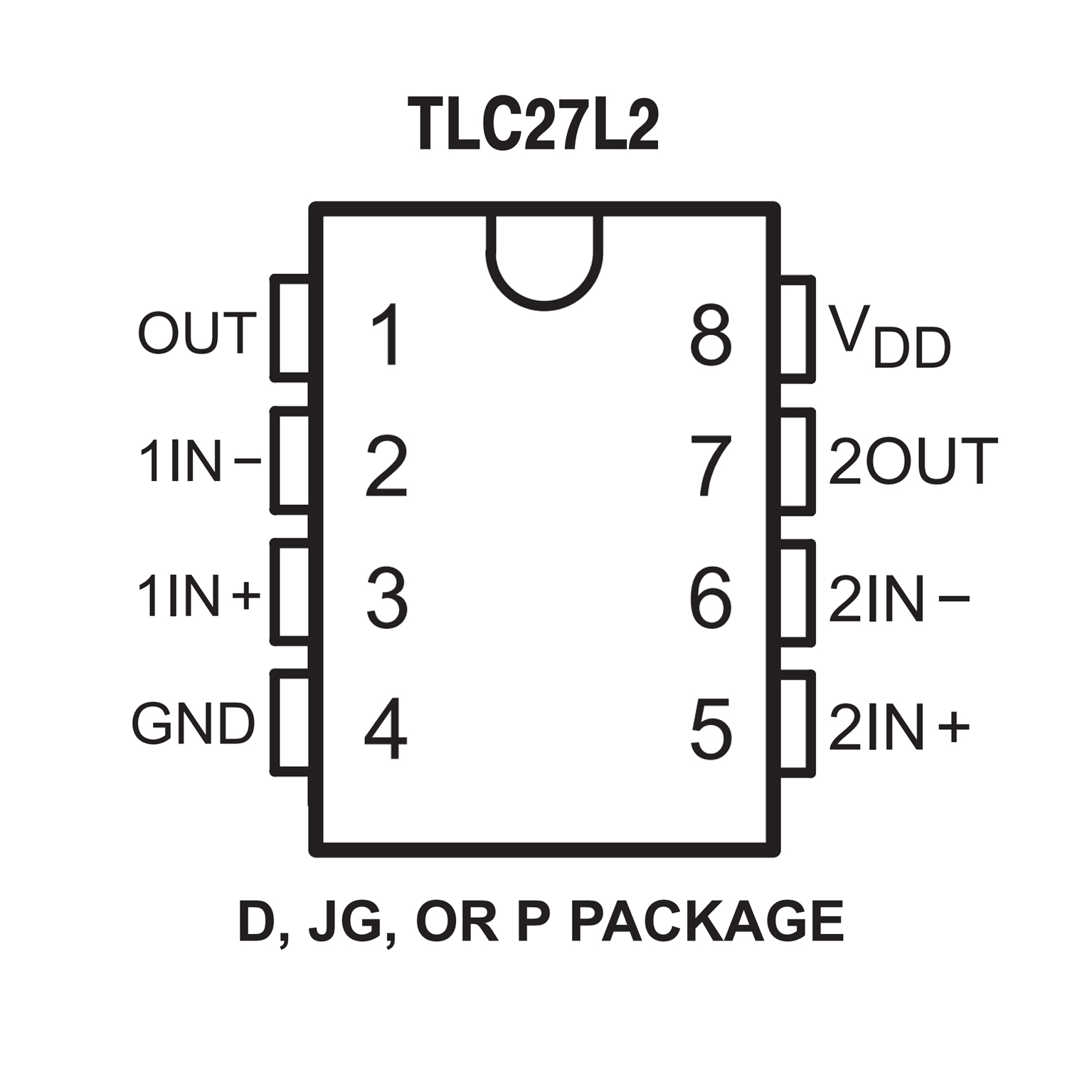

PIN CONFIGUTION
