Micro Power operational Amplifier, SGM8544 Replace AD8544.
SGM8544
SGM8544.pdf
SGM8544.pdfFEATURES
· Low Cost
· Rail-to-Rail Input and Output
-0.8mV Typical VOS
· Unity Gain Stable
· Gain-Bandwidth Product: 1.1MHz
· Very Low Input Bias Current: 0.5pA
· Supply Voltage Range: 2.1V to 5.5V
· Input Voltage Range:
- -0.1V to +5.6V with VS = 5.5V
· Low Supply Current: 46μA/Amplifier
· Small Packaging
- SGM8544 Available in SOIC-14 and TSSOP-14

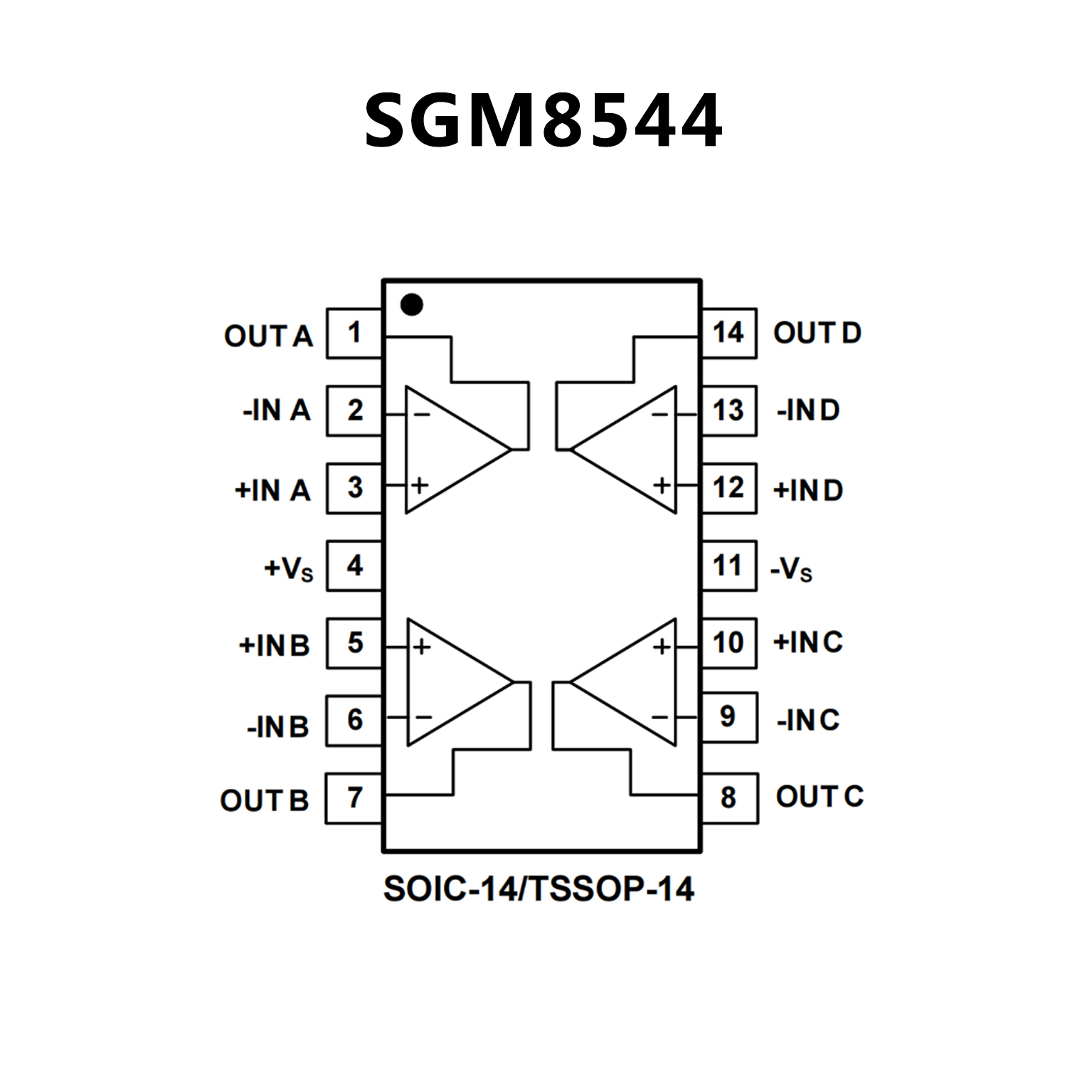

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
· Single-Supply Operation: 2.7 V to 5.5 V
· Low Supply Current: 45 A/Amplifier
· Wide Bandwidth: 1 MHz
· No Phase Reversal
· Low Input Currents: 4 pA
· Unity Gain Stable
· Rail-to-Rail Input and Output
PIN CONFIGUTION
