High precision Operational Amplifier,SGM8552 Replace LMP2012.
SGM8552
SGM8552.pdf
SGM8552.pdfFEATURES
? Low Offset Voltage: 4?V (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 930?A (TYP)
? Overload Recovery Time: 60?s (at VS = +5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

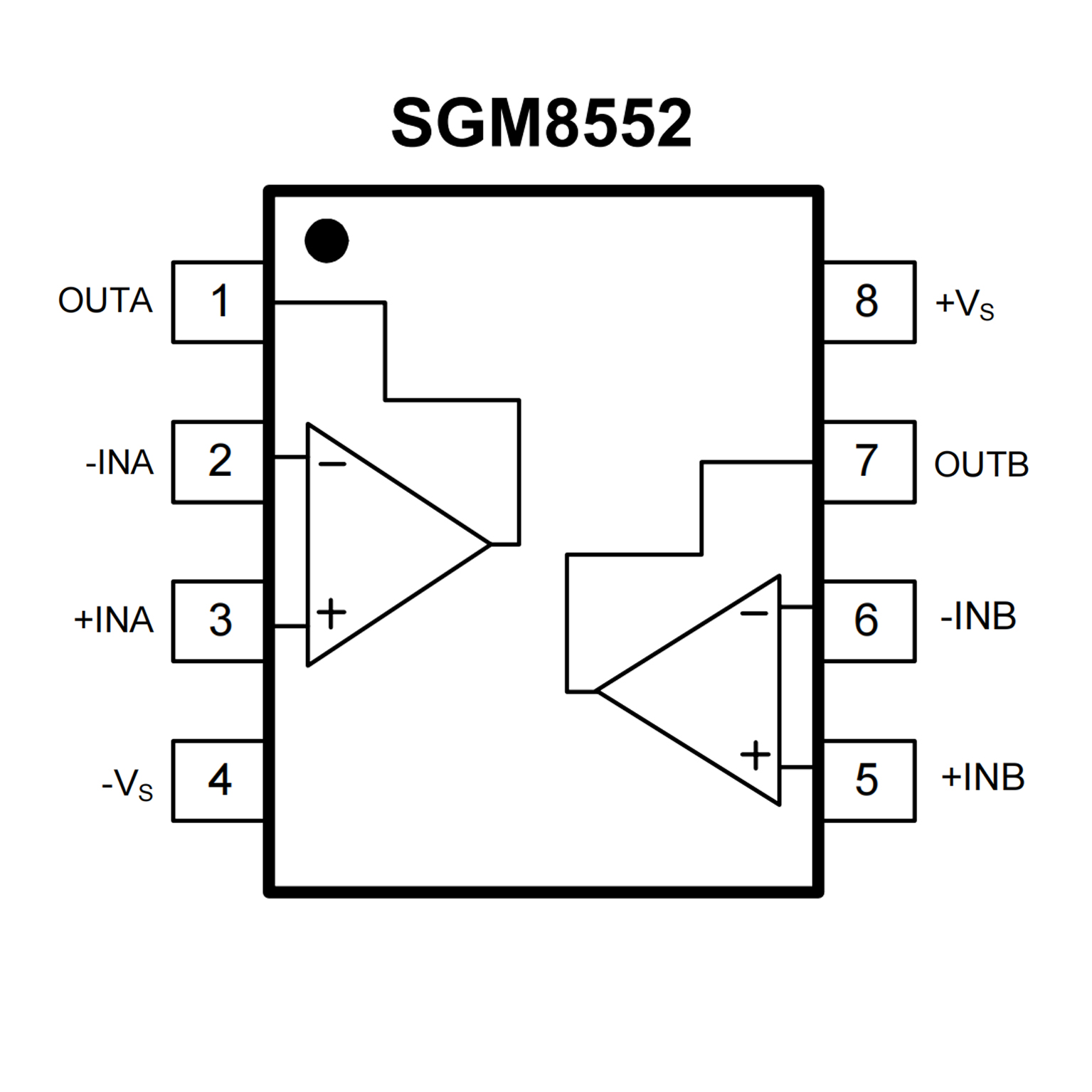

PIN CONFIGUTION
優勢替代
FEATURES
(For VS = 5 V, Typical Unless Otherwise Noted)? Low Ensured VOS Over Temperature 60 ?V
? Low Noise with No 1/f 35nV/√Hz
? High CMRR 130 dB
? High PSRR 120 dB
? High AVOL 130 dB
? Wide Gain-Bandwidth Product 3 MHz
? High Slew Rate 4 V/?s
? Low Supply Current 930 ?A
? Rail-to-Rail Output 30 mV
? No External Capacitors Required

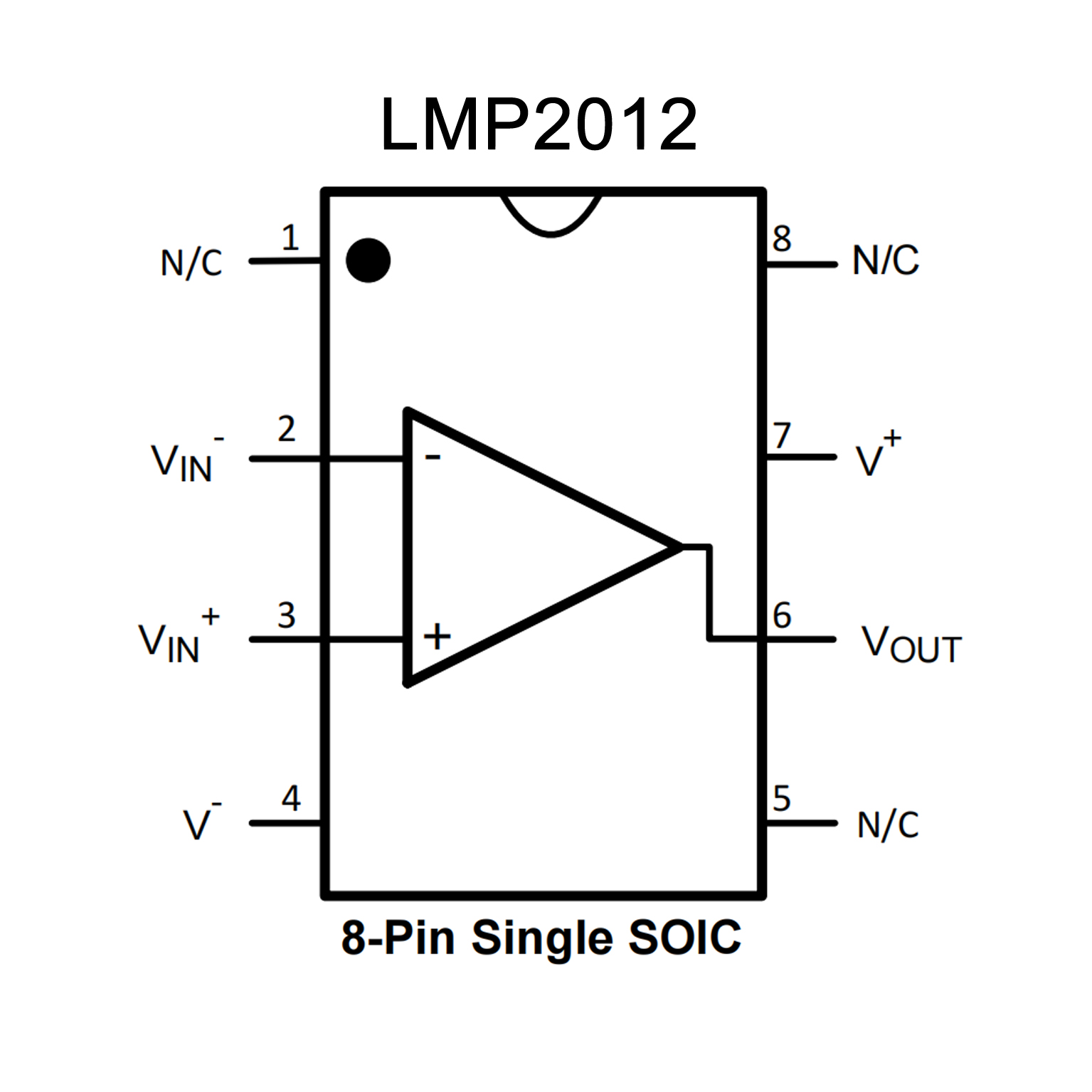

PIN CONFIGUTION
