SGM8552.pdf? Low Offset Voltage: 4?V (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 930?A (TYP)
? Overload Recovery Time: 60?s (at VS = +5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range

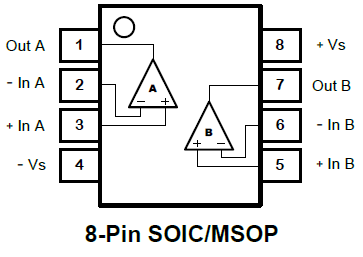

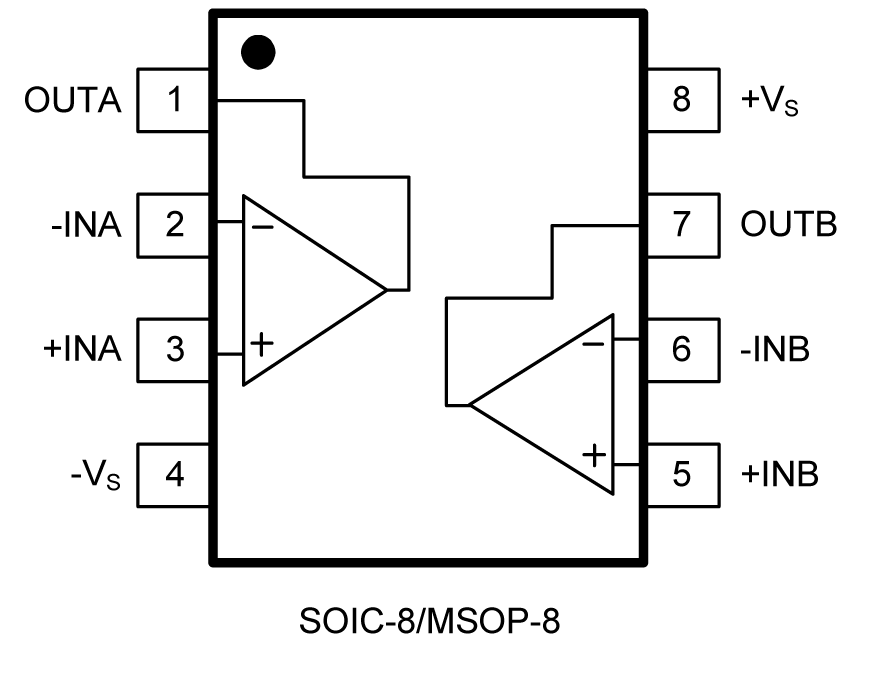

? Available in Green SOIC-8 and MSOP-8 Packages
? LOW OFFSET VOLTAGE: 20 μV (Max)
? ZERO DRIFT: 0.01 μV/°C
? Ultra-low Noise:
- Input Noise Voltage: 17 nV/√Hz at 1 kHz
- 0.1Hz to 10Hz Noise Voltage: 370 nVPP
- 1/f Noise Corner Down to 0.1Hz
? 3.3 MHz Bandwidth, 2.5 V/μs Slew Rate
? Low Supply Current: 470 μA per Amplifier
? Single-Supply Operation Down to +1.8V
? Low Input Bias Current: 60 pA
? High Gain, 127 dB High CMRR & PSRR
? Overload Recovery Time: 35 μs
? Rail-to-Rail Input and Output Swing
