SGM8554.pdf? Low Offset Voltage: 12?V (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 465?A/Channel
? Overload Recovery Time: 60?s (at VS = +5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range

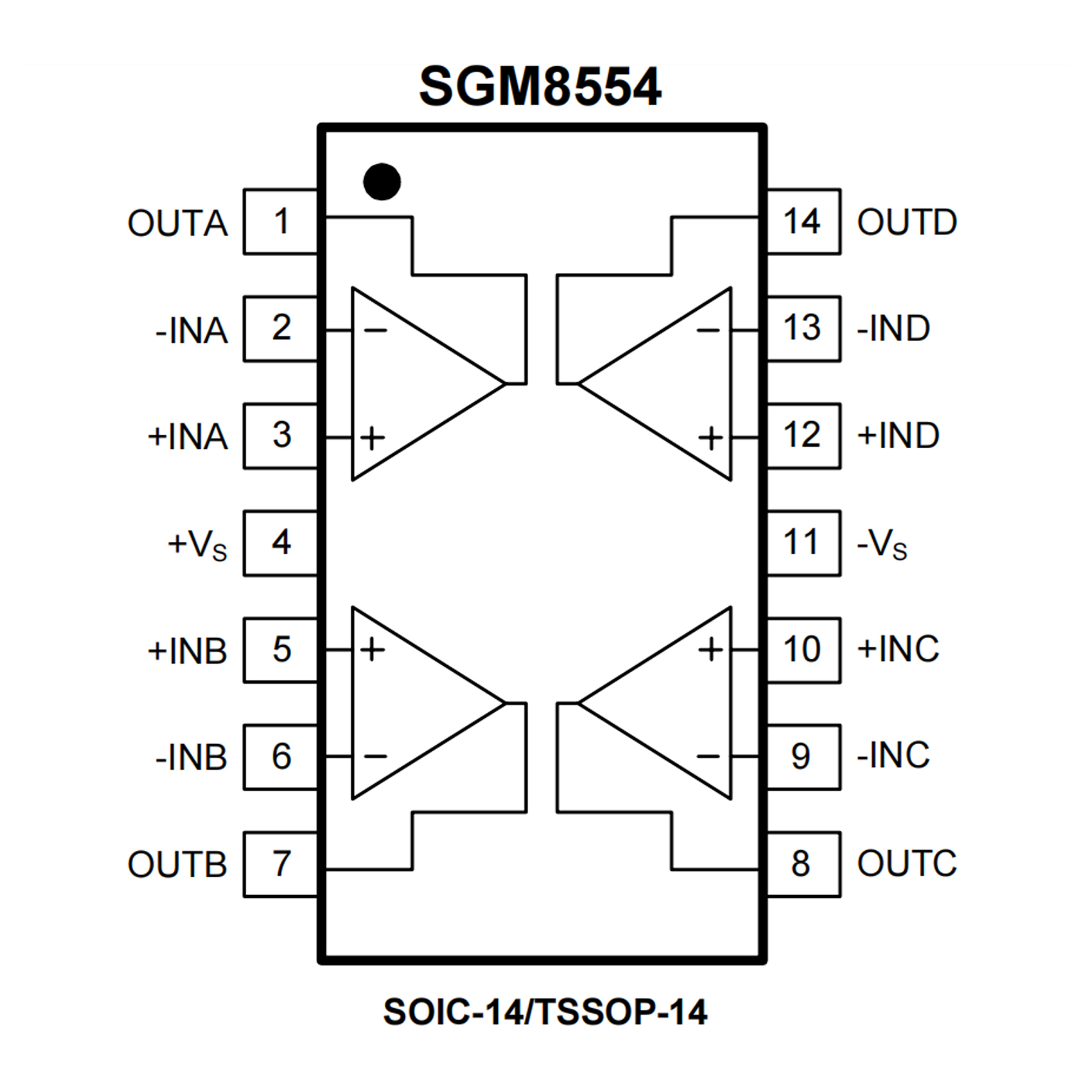

? Available in Green SOIC-14 and TSSOP-14 Packages
? (For VS = 5V, Typical Unless Otherwise Noted)
? Low Specified VOS Over Temperature 60 ?V
? Low Noise with No 1/f 35nV/√Hz
? High CMRR 130 dB
? High PSRR 120 dB
? High AVOL 130 dB
? Wide Gain-Bandwidth Product 3 MHz
? High Slew Rate 4 V/?s
? Low Supply Current 3.7 mA
? Rail-to-Rail Output 30 mV
? No External Capacitors Required
