High Precision Operational Amplifier, SGM8555 Replace OPA376.
SGM8555
SGM8555.pdf
SGM8555.pdfFEATURES
? Low Offset Voltage: 90μV (MAX)
? Low Noise density: 21nV/ Hz at 1kHz
? Low Voltage Noise: 0.6μVP-P at 0.1Hz to 10Hz
? 3.5MHz GBP
? Slew Rate is 3V/μs
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 133dB (TYP) at +5V
? High PSRR: 96dB (TYP)
? High CMRR: 98dB (TYP)
? Ultra Low Input Bias Current: 30pA
? Low Supply Current: 950μA/Amplifier (TYP)
? Overload Recovery Time: 40μs (at VS = +5V)
? No External Capacitors Required

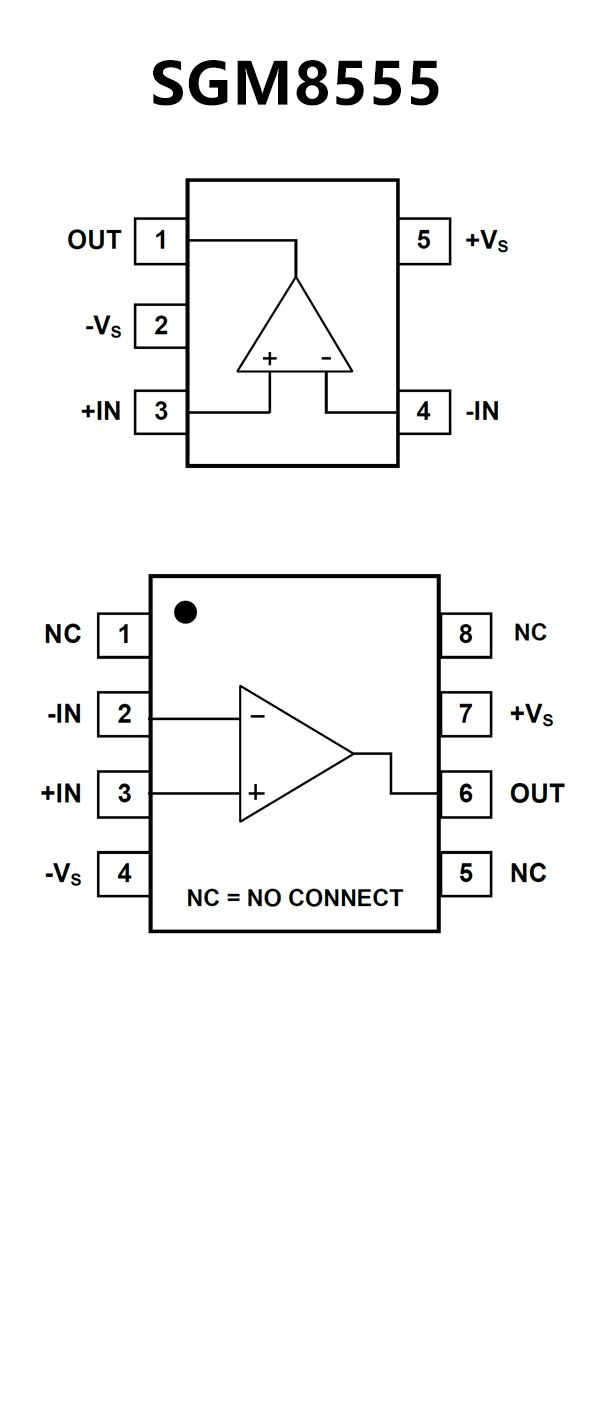

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Low Noise: 7.5nV/√Hz at 1kHz
? 0.1Hz to 10Hz Noise: 0.8μVPP
? Quiescent Current: 760μA (typical)
? Low Offset Voltage: 5μV (typ)
? Gain Bandwidth Product: 5.5MHz
? Rail-to-Rail Input and Output
? Single-Supply Operation
? Supply Voltage: 2.2V to 5.5V

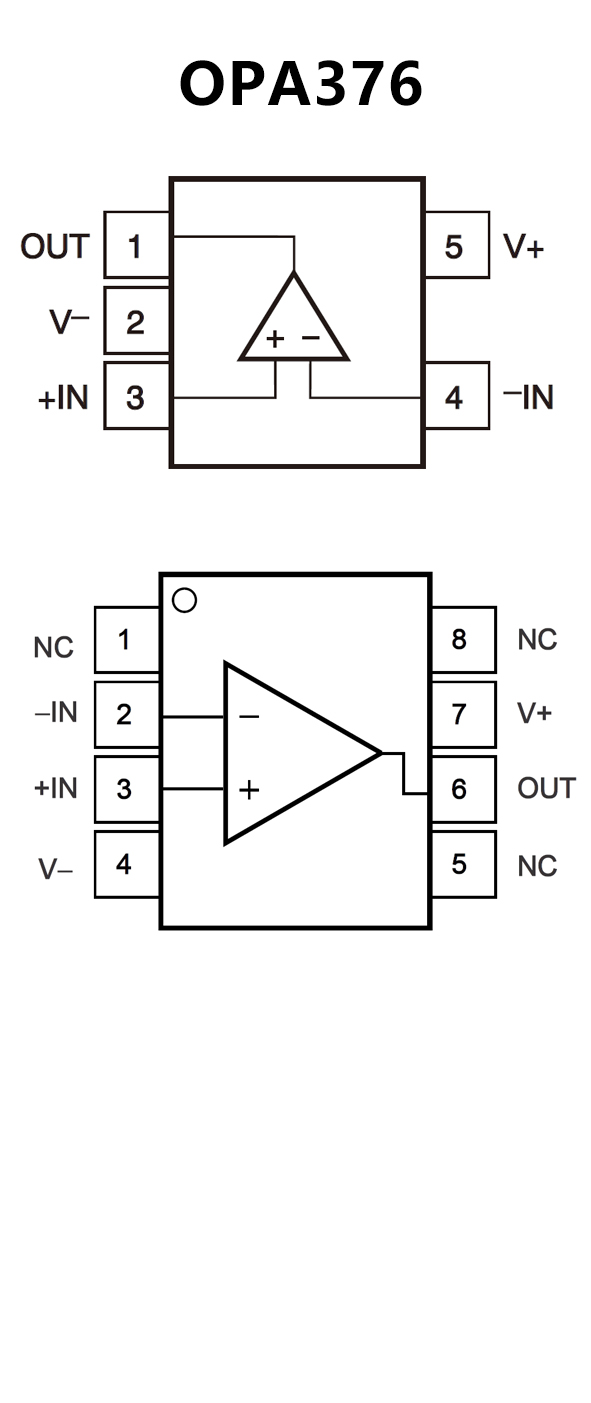

PIN CONFIGUTION
