High Precision Operational Amplifier, Replace OPA234
SGM8581
SGM8581.pdf
SGM8581.pdfFEATURES
? Low Offset Voltage: 25μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single Supply Operation
? Voltage Gain: 145dB (TYP) at +5V
? PSRR: 120dB (TYP)
? CMRR: 90dB (TYP)
? Ultra Low Input Bias Current: 15pA
? Low Supply Current: 445μA at +5V
? Overload Recovery Time: 70μs (at VS = +5V)
? No External Capacitors Required

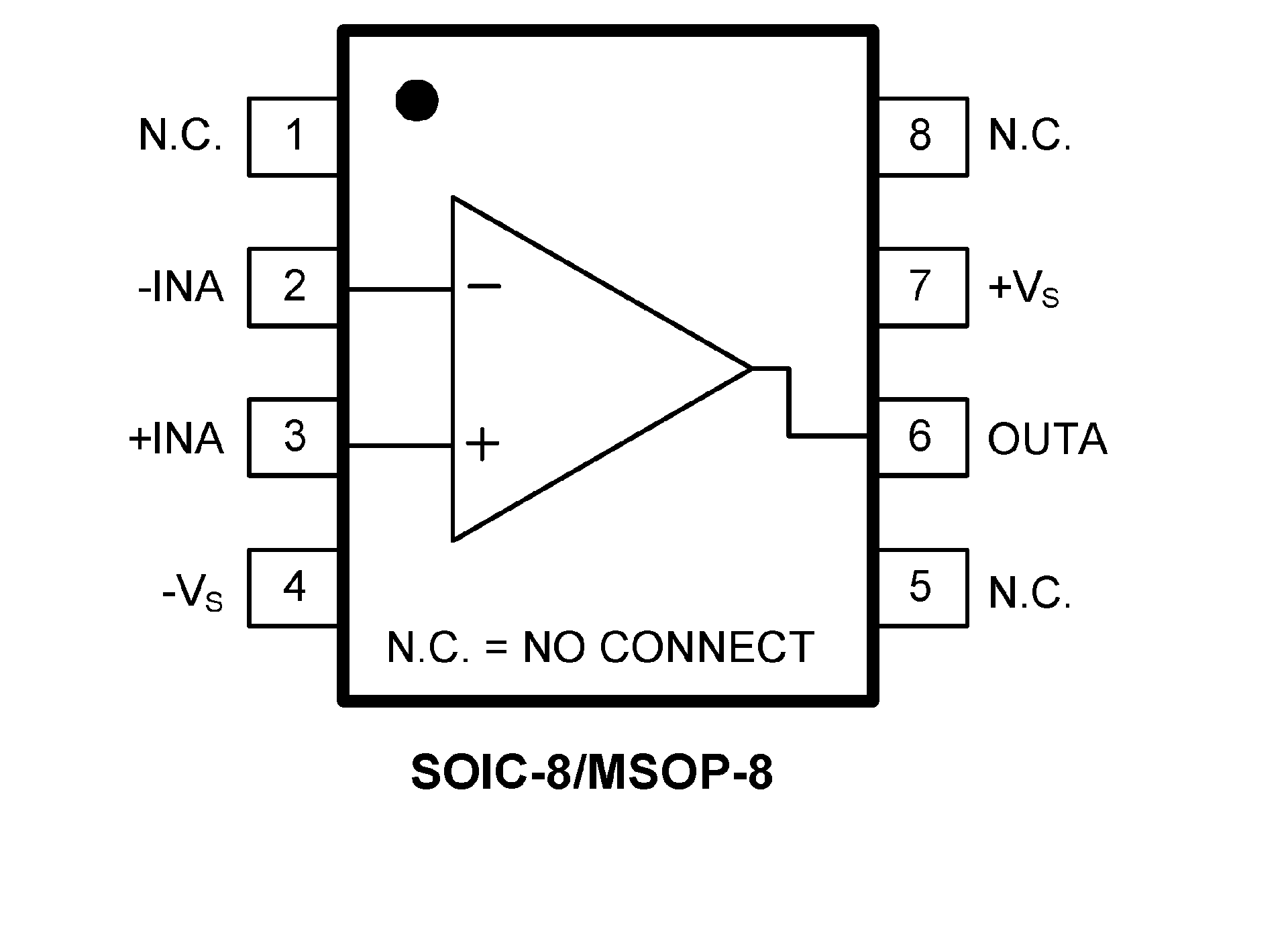

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? WIDE SUPPLY RANGE:
Single Supply: VS = +2.7V to +36V
Dual Supply: VS = ±1.35V to ±18V
? SPECIFIED PERFORMANCE:
+2.7V, +5V, and ±15V
? LOW QUIESCENT CURRENT: 250μA/amp
? LOW INPUT BIAS CURRENT: 25nA max
? LOW OFFSET VOLTAGE: 100μV max
? HIGH CMRR, PSRR, and AOL
? SINGLE, DUAL, and QUAD VERSIONS

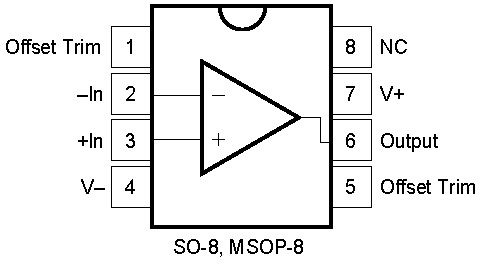

PIN CONFIGUTION
