SGM8622.pdf? Rail-to-Rail Input and Output 3mV Maximum VOS
? High Gain-Bandwidth Product: 3MHz
? High Slew Rate: 1.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 2.3μs
? Low Noise: 17.5nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current
SGM8621/3: 270μA (TYP)
SGM8622/4: 210μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8623
? Small Packaging
SGM8622 Available in Green MSOP-8 and SOIC-8

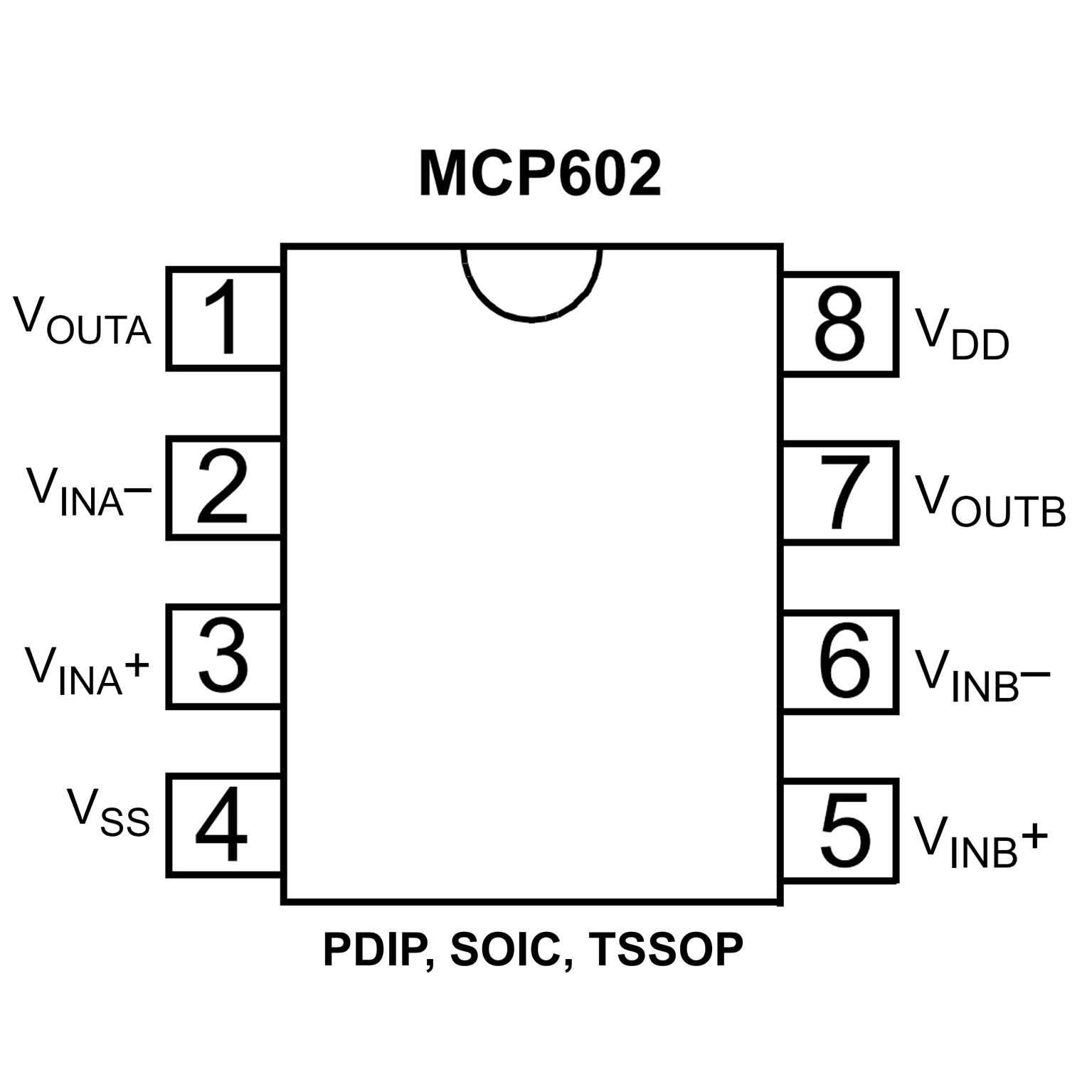

? Single-Supply: 2.7V to 6.0V
? Rail-to-Rail Output
? Input Range Includes Ground
? Gain Bandwidth Product: 2.8 MHz (typical)
? Unity-Gain Stable
? Low Quiescent Current: 230 ?A/amplifier (typical)
? Temperature Ranges:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
? Available in Single, Dual, and Quad
