Dual-Channel, Low-Power, High-Accuracy Voltage Detector, SGM862A Replace TPS3780.
SGM862A
SGM862A.pdf
SGM862A.pdfFEATURES
? Supply Voltage Range: 1.65V to 6.5V
? High-Accuracy Threshold and Hysterisis:
1.5% at VDD = 1.65V to 3.3V
1.7% at VDD = 1.65V to 6.5V
? Low Quiescent Current: 1.1?A (TYP)
? Four Hysteresis Options: 0.6%, 1%, 5% and 10%
? Open-Drain Output
? Available in Green UTDFN-1.45×1-6AL and
SOT-23-6 Packages

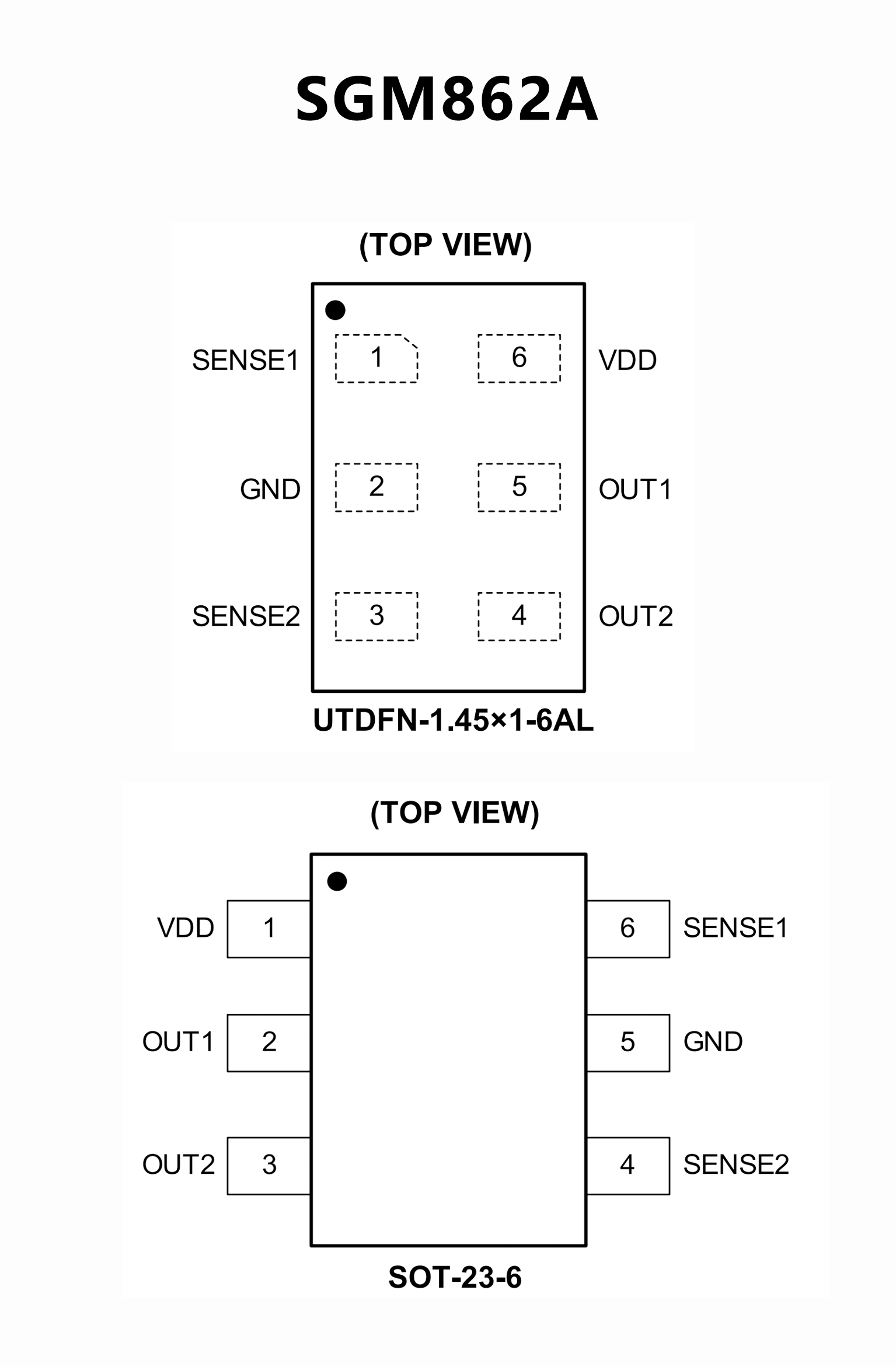

PIN CONFIGUTION
優勢替代
FEATURES
? Two-Channel Detectors in Small Packages
? High-Accuracy Threshold and Hysteresis: 1.0%
? Low Quiescent Current: 2 ?A (typ)
? Adjustable Detection Voltage Down to 1.2 V
? Multiple Hysteresis Options:
– 0.5%, 1%, 5%, and 10%
? Temperature Range: –40°C to 125°C
? Push-Pull (TPS3779) and Open-Drain (TPS3780)
Output Options
? Available in ?SON and SOT23 Packages

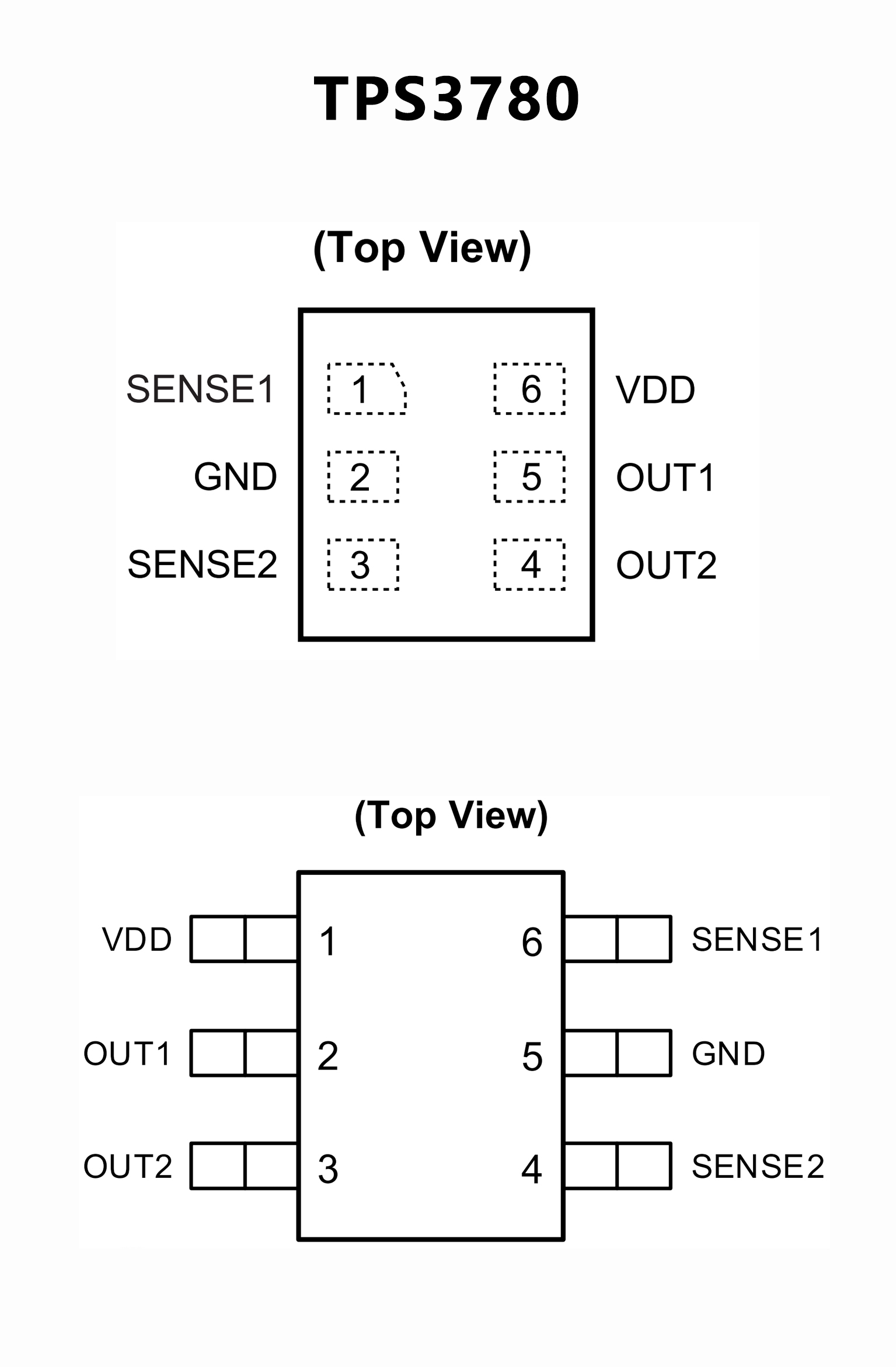

PIN CONFIGUTION
