high speed comparator,SGM8750 Replace TP1946.
SGM8750
SGM8750.pdf
SGM8750.pdfFEATURES
? Fast, 150ns Propagation Delay (10mV Overdrive)
? Low Power Consumption:22μA/Channel (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Open Drain Output
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Output Swing 185mV with 4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green MSOP-8 and SOIC-8 Packages
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Down to 1.8V Supply Voltage: 1.8V to 5.5V
? Low Supply Current: 49 μA per Channel
? High-to-Low Propagation Delay: 70 ns
? Offset Voltage: ± 3.0 mV Maximum
? Offset Voltage Temperature Drift: 0.3 μV/°C
? Input Bias Current: 6 pA Typical
? Input Common-Mode Range Extends 200 mV
? Internal Hysteresis Ensures Clean Switching
? No Phase Reversal for Overdriven Inputs
? Open-Drain Output for Maximum Flexibility
? Green, Space-Saving SC70 Package Available

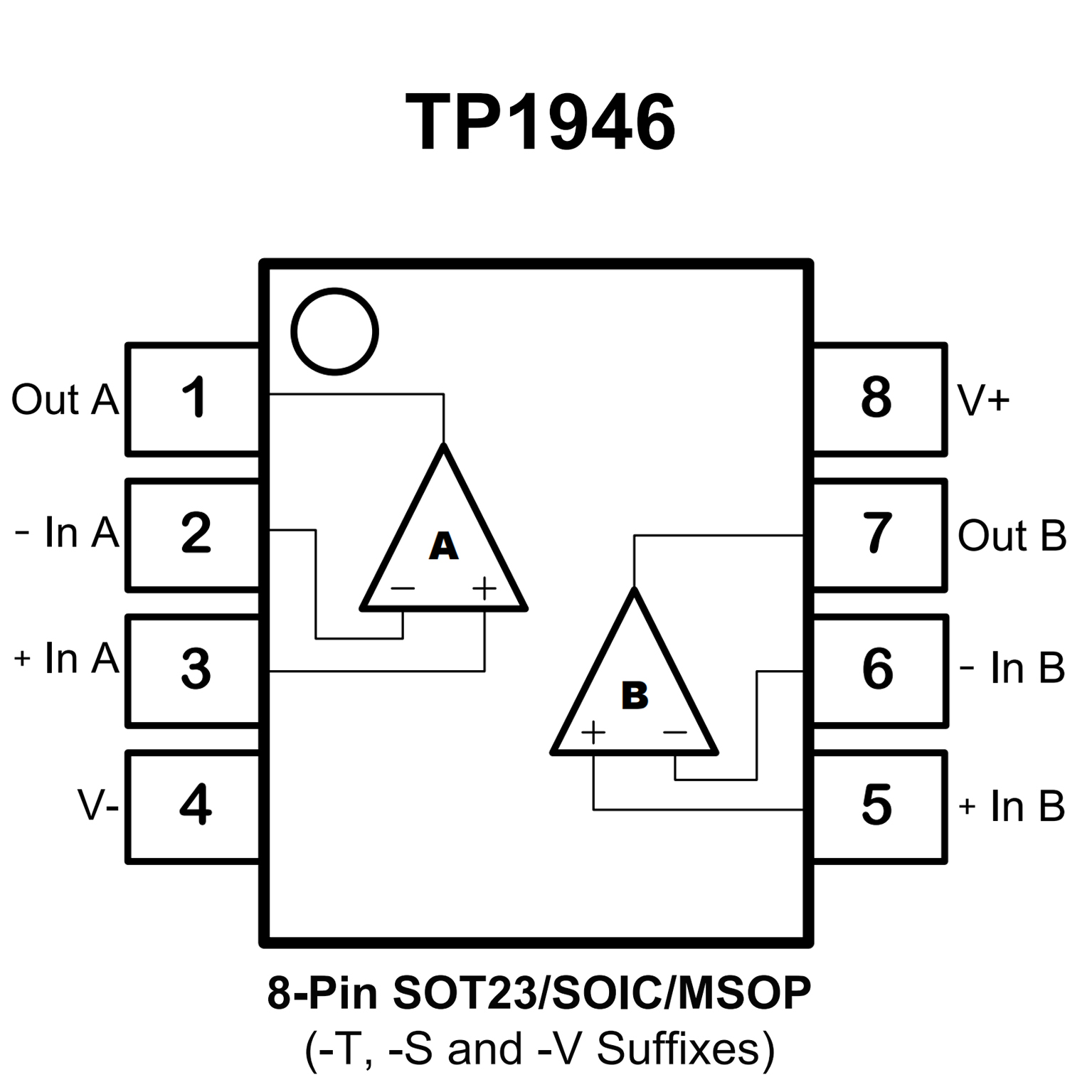

PIN CONFIGUTION
