High precision Operational Amplifier,SGM8932 Replace TLV2313.
SGM8932
SGM8932.pdf
SGM8932.pdfFEATURES
? Rail-to-Rail Output
? Low Noise: 30nV/ Hz
? Low Distortion
? Supply Voltage Range: 1.8V to 5.5V
? Low Input Offset Voltage: 0.9mV (MAX)
? Gain Bandwidth Product: 1.5MHz
? Slew Rate: 0.8V/?s
? Low Supply Current
80?A/Amplifier (TYP)
0.1?A Shutdown Current for SGM8933
? Small Packaging:
SGM8932 Available in MSOP-8 and SOIC-8

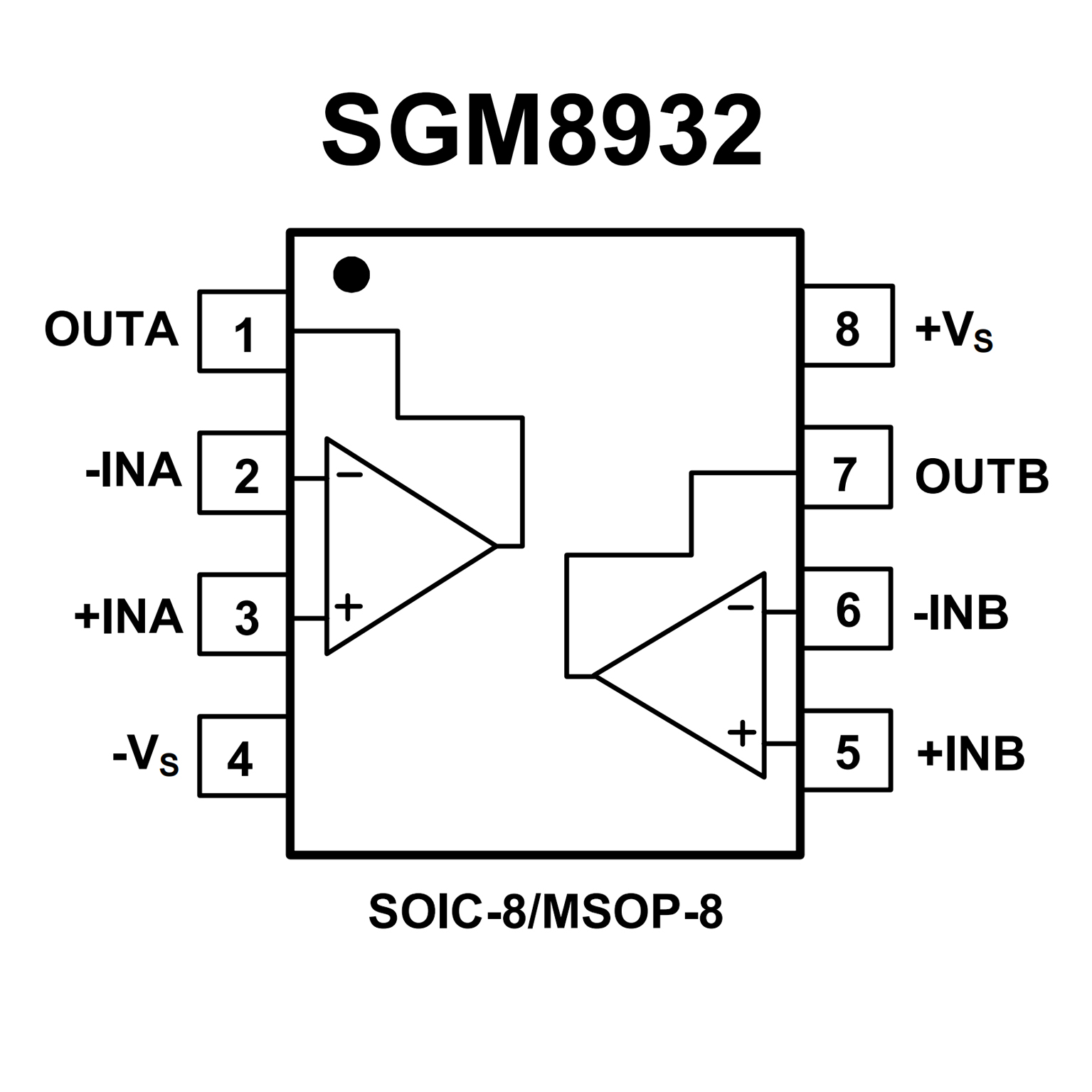

PIN CONFIGUTION
優勢替代
FEATURES
? Precision Amplifier for Cost-Sensitive Systems
? Low IQ: 65 ?A/ch
? Wide Supply Range: 1.8 V to 5.5 V
? Low Noise: 26 nV/√Hz at 1 kHz
? Gain Bandwidth: 1 MHz
? Rail-to-Rail Input/Output
? Low Input Bias Current: 1 pA
? Low Offset Voltage: 0.75 mV
? Unity-Gain Stable
? Internal RF/EMI Filter
? Extended Temperature Range:
–40°C to +125°C

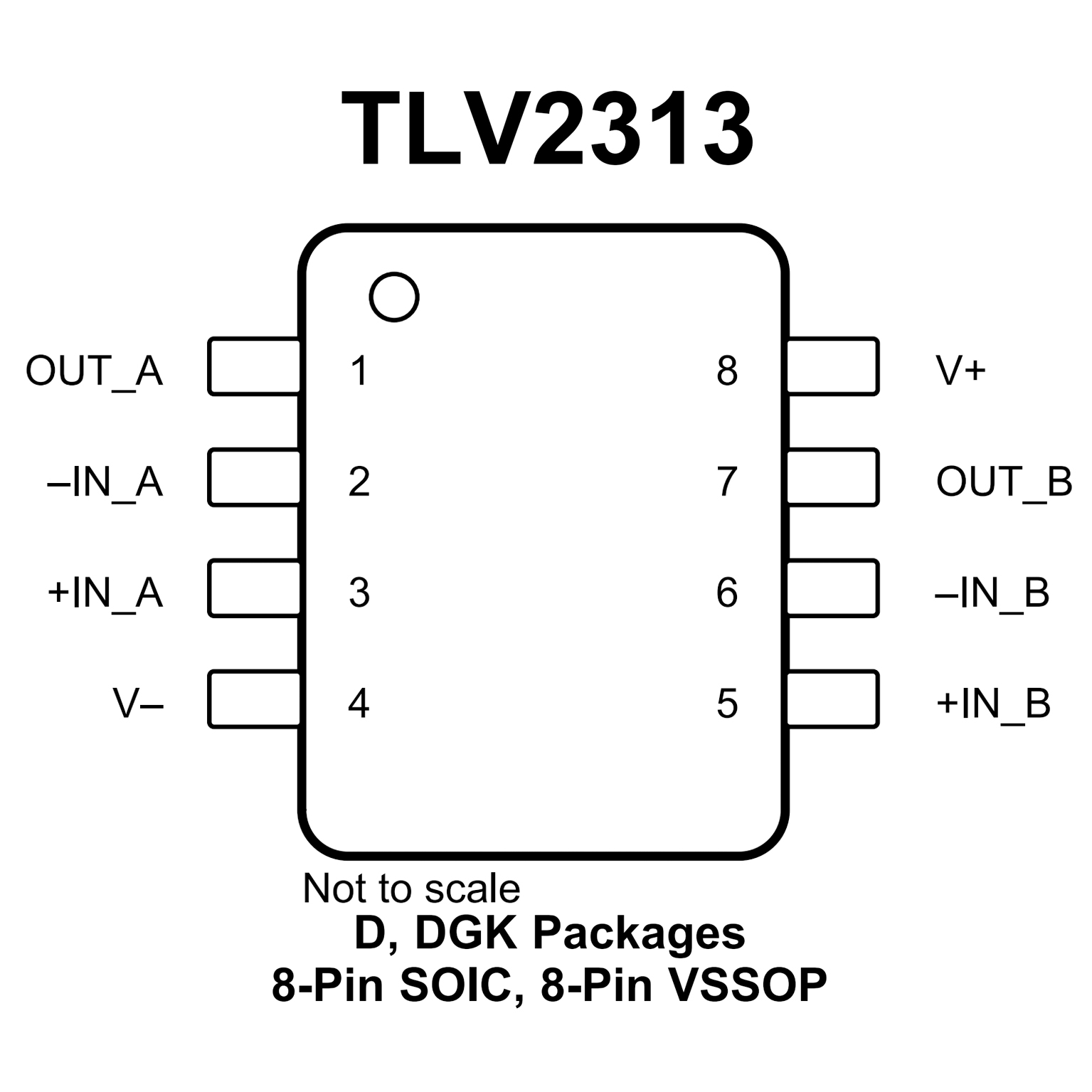

PIN CONFIGUTION
