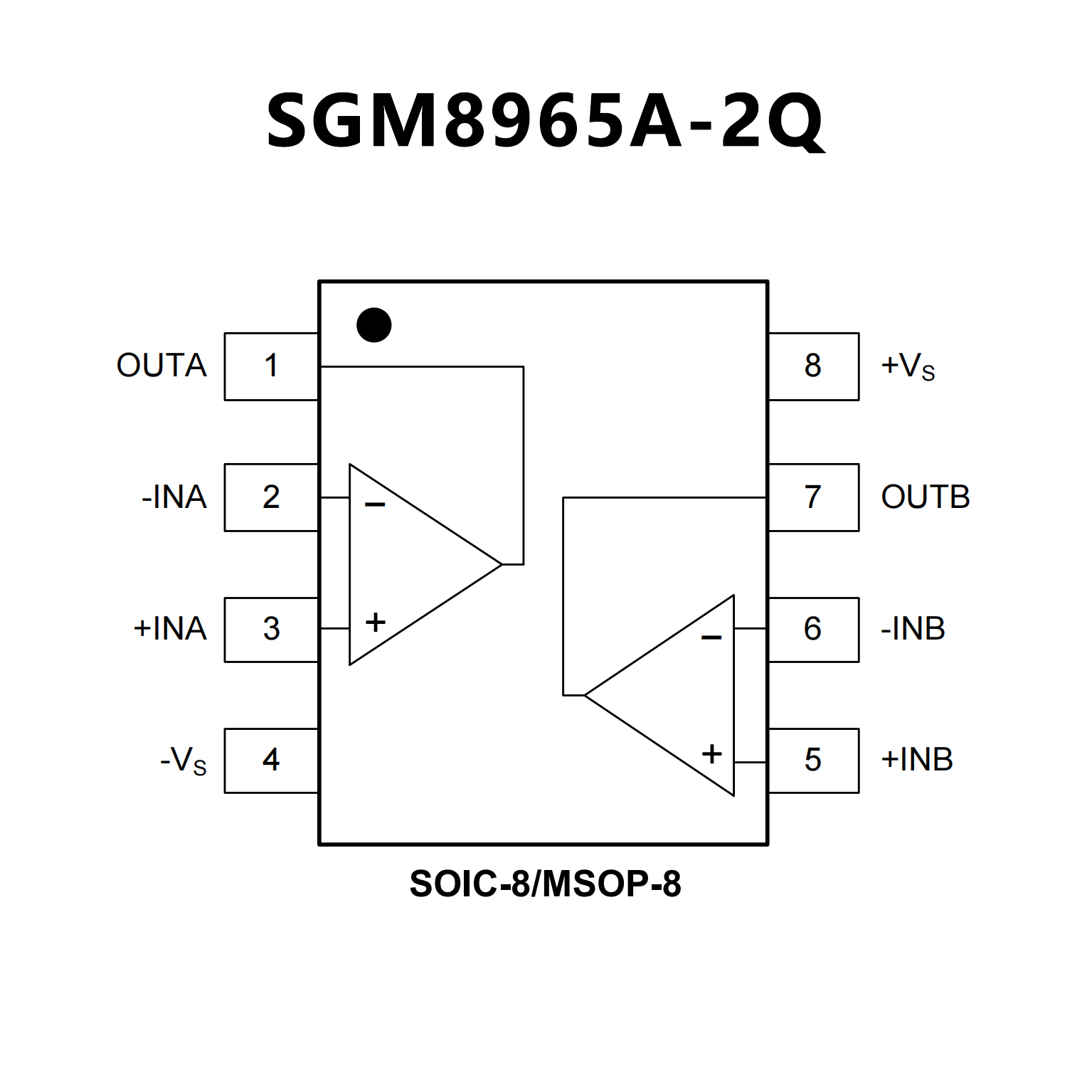

SGM8965A-2Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Unity-Gain Stable
? Gain-Bandwidth Product: 50MHz
? Slew Rate: 28V/μs
? High CMRR: 94dB (TYP)
? Low Offset Voltage: 280μV (MAX)
? Low Bias Current: 1pA (TYP)
? Low Input Voltage Noise: 5.5nV/√Hz at 100kHz
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.2V to 5.5V
? Available in Green SOIC-8 and MSOP-8 Packages
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C3B

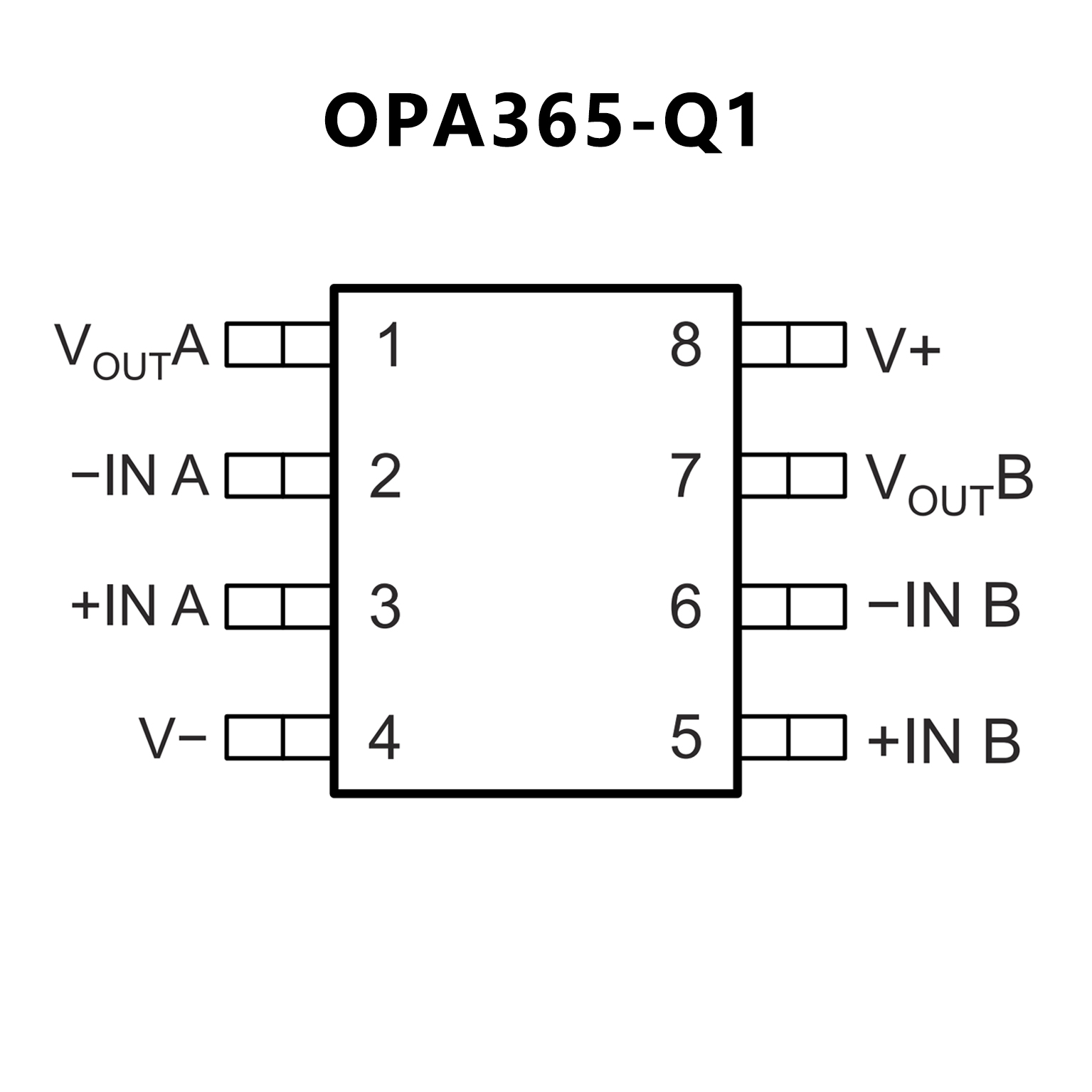

? OPA2365-Q1 Functional Safety-Capable:
Documentation Available to Aid
Functional Safety System Design
? Gain Bandwidth: 50 MHz
? Zero-Crossover Distortion Topology
Excellent THD+N: 0.0004%
CMRR: 100 dB (Minimum)
Rail-to-Rail Input and Output
Input 100 mV Beyond Supply Rail
? Low Noise: 4.5 nV/√ Hz at 100 kHz
? Slew Rate: 25 V/?s
? Fast Settling: 0.3 ?s to 0.01%
? Precision
Low Offset: 100 ?V
Low Input Bias Current: 0.2 pA
? 2.2-V to 5.5-V Operation
