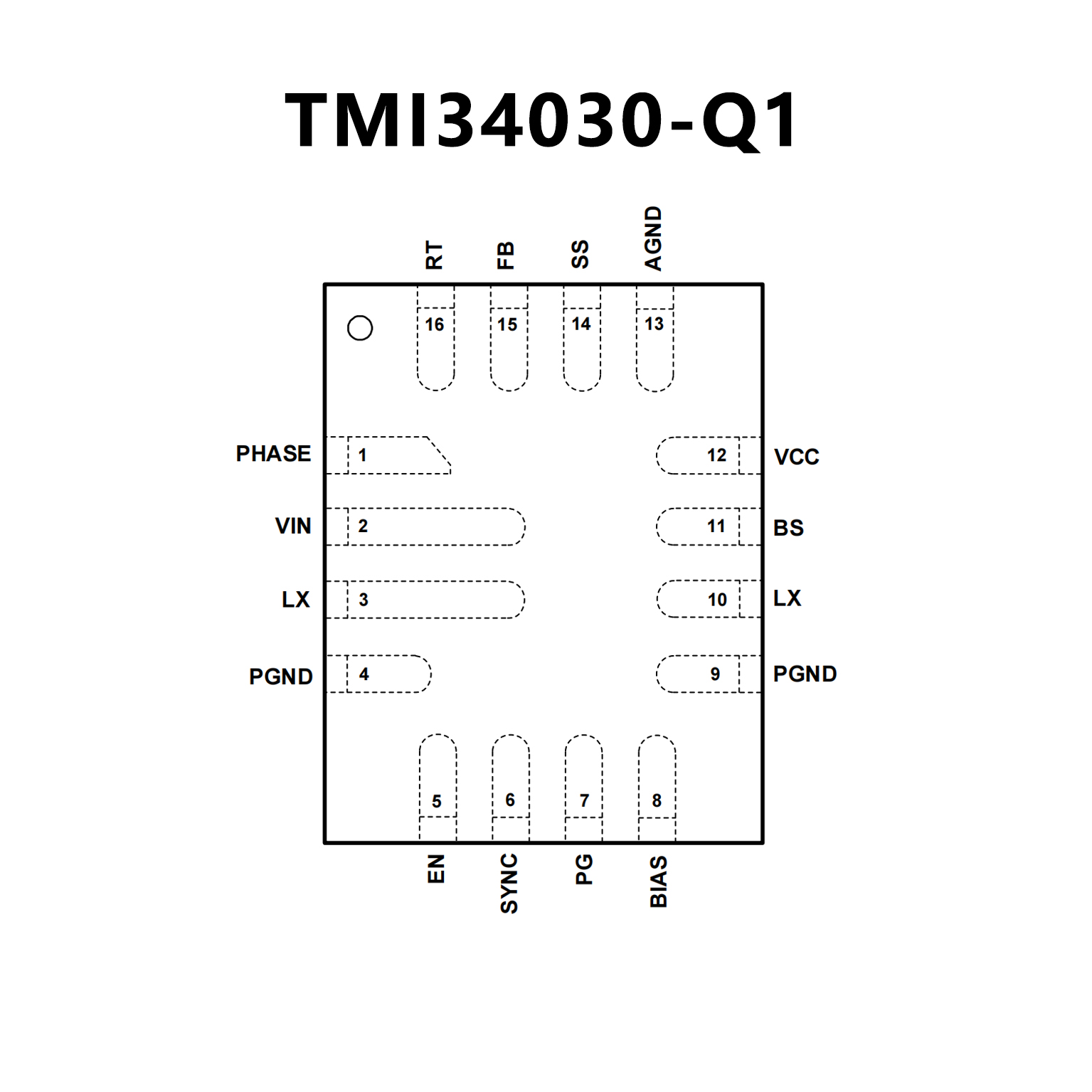

TMI34030-Q1.pdf? AEC-Q100 certification in progress
Temperature grade1: -40°C to+125°C, TA
? 2μA Low Shutdown Supply Current
? 14μA No-Load Quiescent Current
? Internal 125m? High-Side and 55m? LowSide MOSFET
? External Soft Start (SS)
? 350kHz to 2.5MHz Programmable Switching Frequency
? Selectable External Clock Signal to
Synchronize the Internal Oscillator Frequency
? 80ns Minimum on Time
? Selectable Forced PWM and PFM
? Power Good (PG) Output
? Hiccup Over-Current Protection (OCP)
? Available in a QFN-16 (3mmx4mm) Package

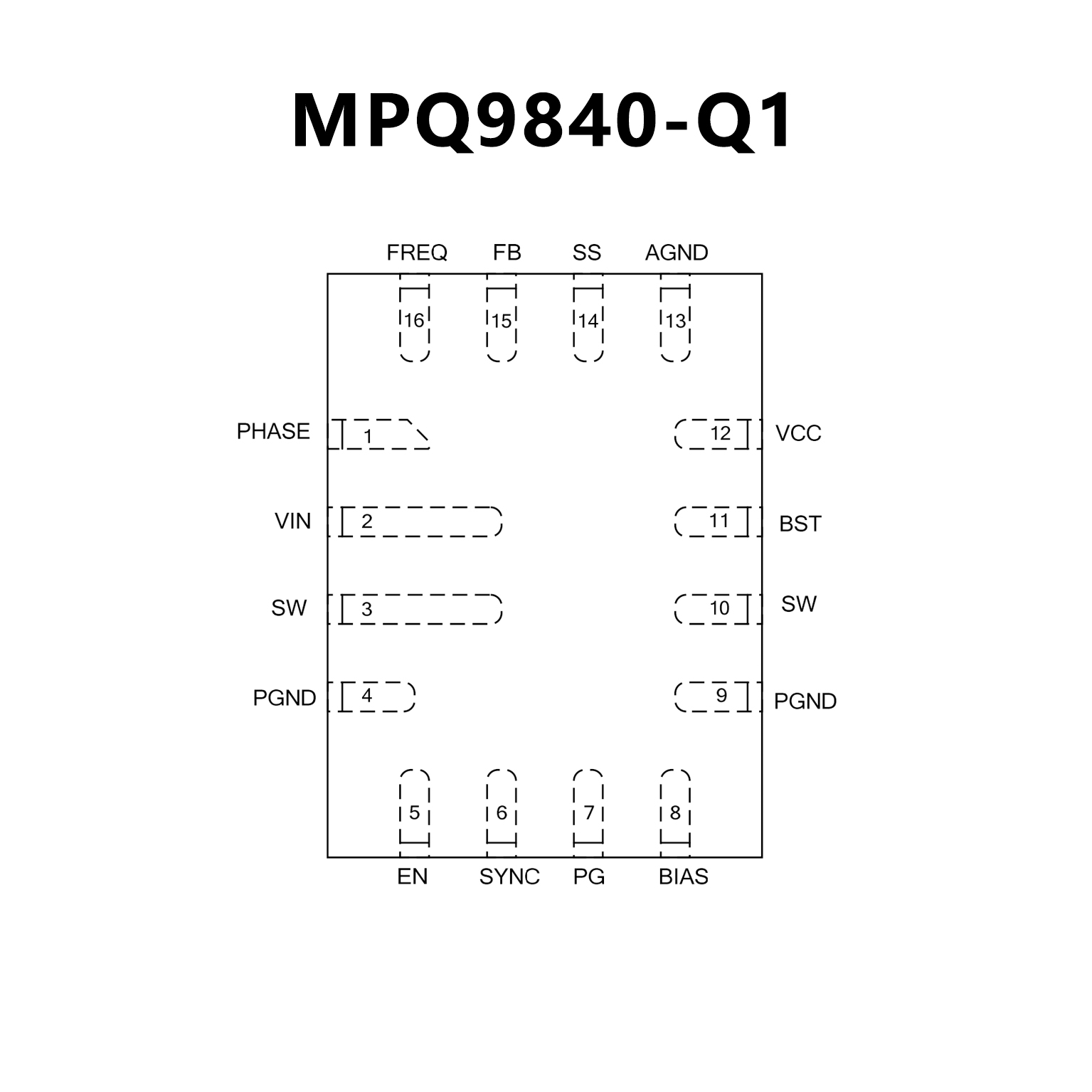

? 2μA Low Shutdown Supply Current
? 14μA No-Load Quiescent Current
? Internal 125m? High-Side and 55m? LowSide MOSFET
? 350kHz to 2.5MHz Programmable Switching Frequency
? Power Good (PG) Output
? External Soft Start (SS)
? 80ns Minimum On Time
? Selectable Forced CCM and AAM
? Hiccup Over-Current Protection (OCP)
? AEC-Q100 Grade-1
? Available in a QFN-16 (3mmx4mm) Package
