TMI6261B.pdf? Integrated Typical 60mΩ Power MOSFET
? Low Supply Current
? 30μA Typical at Switch On State
? 1μA Typical at Switch Off State
? Wide Input Voltage Range: 2.5V to 5.5V
? Fast Transient Response: 8μs
? 0.1ms Typical Rise Time
? Reverse Current Flow Blocking
? Deglitched Open-Drain Over-Current Flag Output
? Output Discharge at shutdown (TMI6261B1 only)
? Thermal Shutdown Protection
? Hot Plug-In Application (Soft-Start)
? CB Test Certification by IEC62368-1:2014
? UL 2367 Certification - E528420

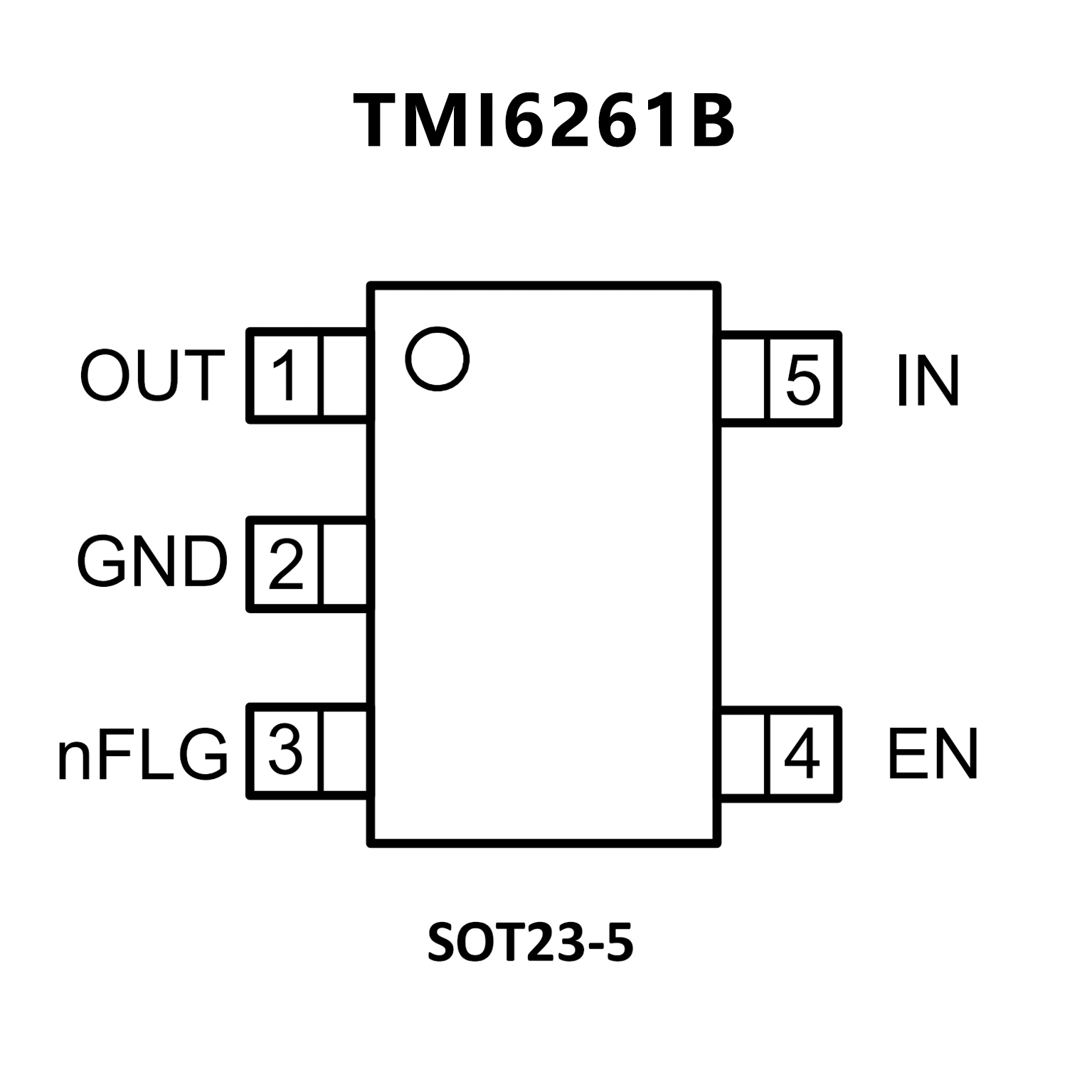

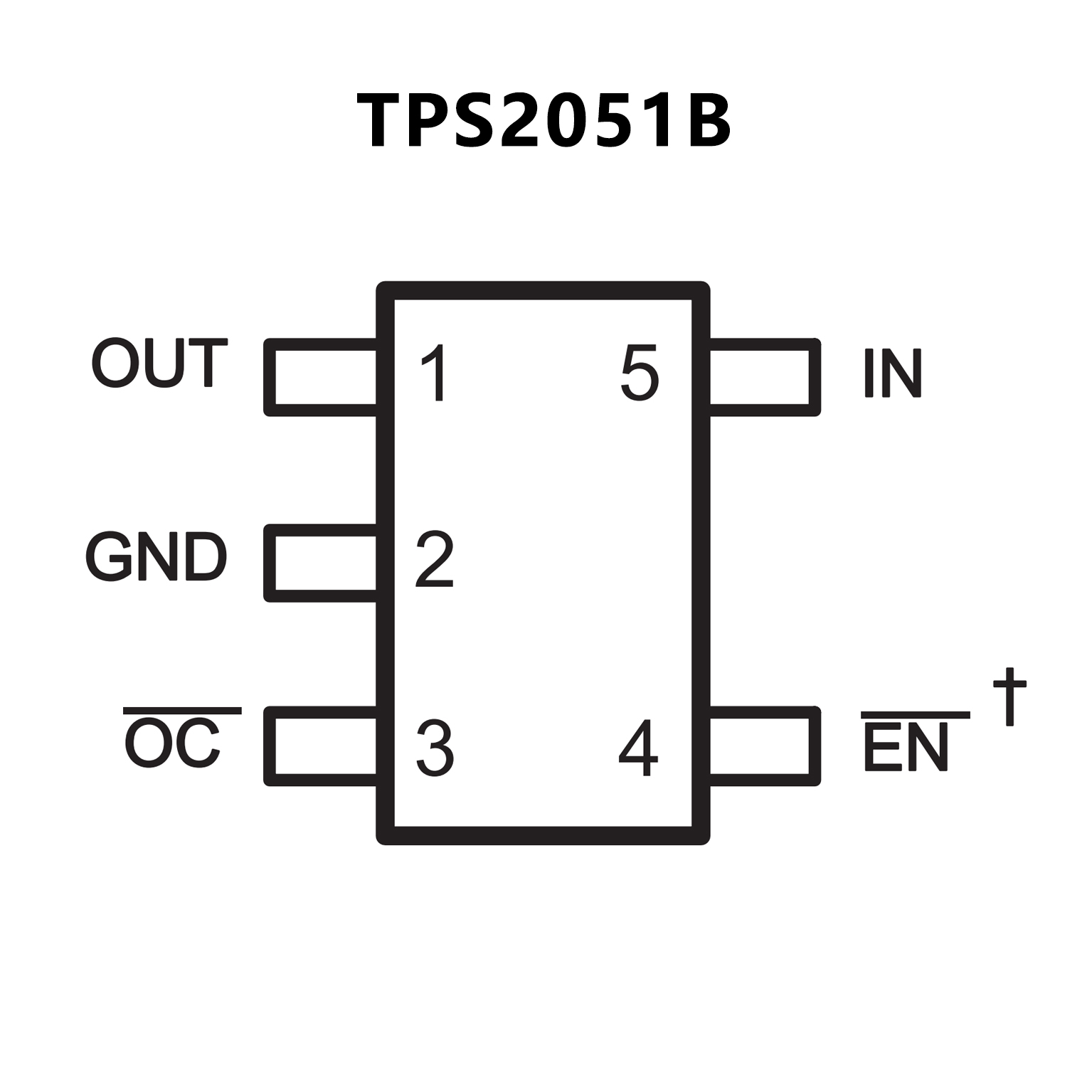

? SOT-23-6/SOT-23-5 Package
? 70-mΩ High-Side MOSFET
? 500-mA Continuous Current
? Thermal and Short-Circuit Protection
? Accurate Current Limit
(0.75 A Minimum, 1.25 A Maximum)
? Operating Range: 2.7 V to 5.5 V
? 0.6-ms Typical Rise Time
? Undervoltage Lockout
? Deglitched Fault Report (OC)
? No OC Glitch During Power Up
? Maximum Standby Supply Current:
1-μA (Single, Dual) or 2-μA (Triple, Quad)
? Ambient Temperature Range: –40°C to 85°C
? UL Recognized, File Number E169910
? Additional UL Recognition for TPS2042B and
TPS2052B for Ganged Configuration
