H-bridge Motor Driver with Integrated Current Sense and Regulation, TMI8876 P2P DRV8876.
TMI8876
TMI8876.pdf
TMI8876.pdfFEATURES
? N-Channel H-bridge Motor Driver:
Drives One Bidirectional Brushed DC Motor,
Two Unidirectional Brushed DC Motors, or
Other Resistive and Inductive Loads
? Wide 4.5V to 37V Operating Voltage
? 3.5A Peak Current Drive
? Integrated Current Sensing and Regulation
? PH/EN and PWM Input Control Modes
? Cycle-by-cycle or Fixed Off-Time Current
Regulation
? Supports 1.8V, 3.3V, 5V Logic Inputs
? Built-in 5V Reference Output
? Ultra-Low Power Sleep Mode
? VM Under voltage Lockout (UVLO)
? Over current Protection (OCP)
? Thermal Shutdown (TSD)
? Automatic Fault Recovery and Indicator Pin
? Small Packages
- TMI8876: HTSSOP16
- TMI8876Q: QFN3x3-16

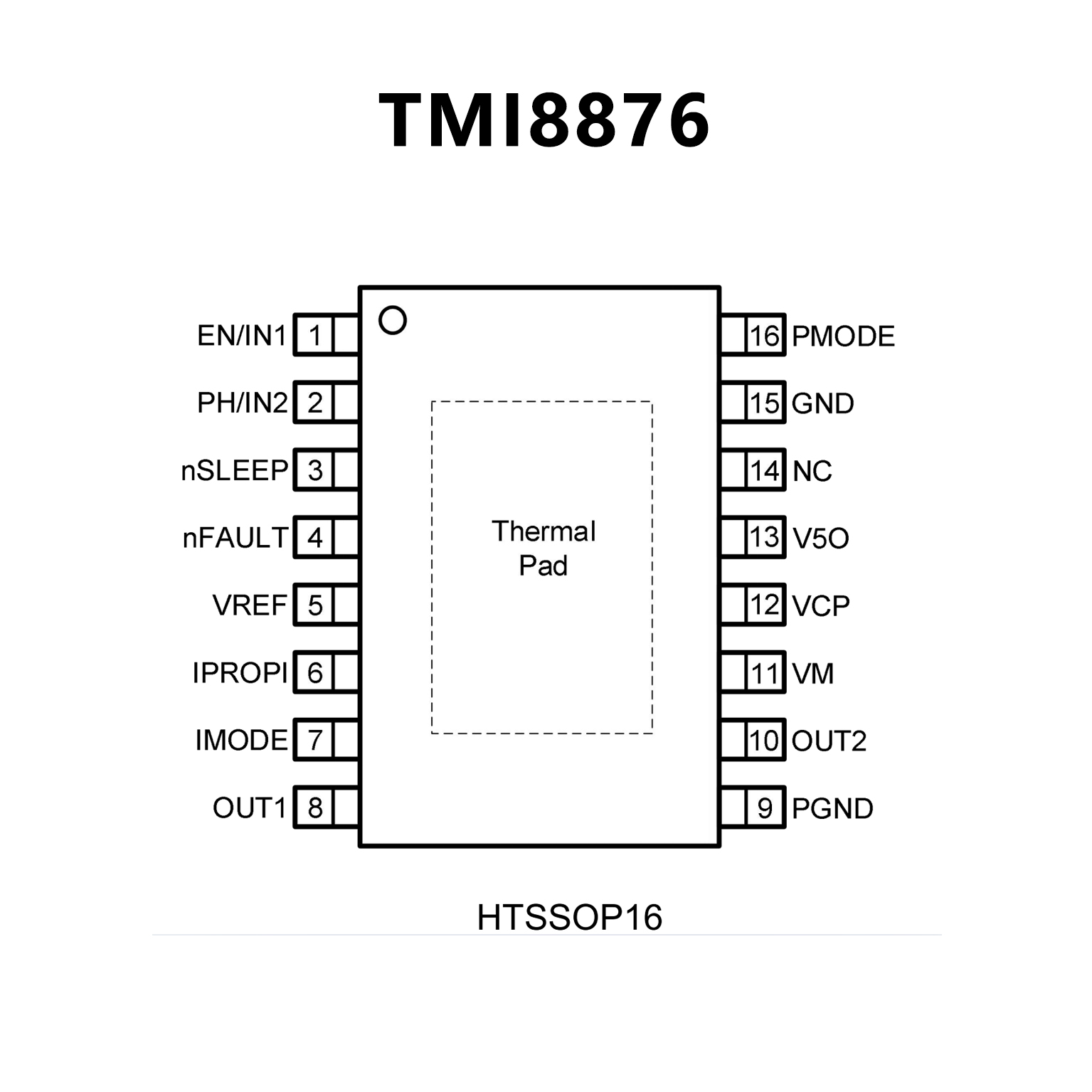

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? N-channel H-bridge motor driver
– Drives one bidirectional brushed DC motor
– Two unidirectional brushed DC motors
– Other resistive and inductive loads
? 4.5-V to 37-V operating supply voltage range
? Pin to pin RDS(on) variants
– DRV8874: 200-mΩ (High-Side + Low-Side)
– DRV8876: 700-mΩ (High-Side + Low-Side)
? High output current capability
– DRV8874: 6-A Peak
– DRV8876: 3.5-A Peak
? Integrated current sensing and regulation
? Proportional current output (IPROPI)
? Selectable current regulation (IMODE)
– Cycle-by-cycle or fixed off time
? Selectable input control modes (PMODE)
– PH/EN and PWM H-bridge control modes
– Independent half-bridge control mode
? Supports 1.8-V, 3.3-V, and 5-V logic inputs
? Ultra low-power sleep mode
– <1-?A @ VVM = 24-V, TJ = 25°C
? Spread spectrum clocking for low electromagnetic
interference (EMI)
? Integrated protection features
– Undervoltage lockout (UVLO)
– Charge pump undervoltage (CPUV)
– Overcurrent protection (OCP)
– Automatic retry or outputs latched off(IMODE)
– Thermal shutdown (TSD)
– Automatic fault recovery
– Fault indicator pin (nFAULT)

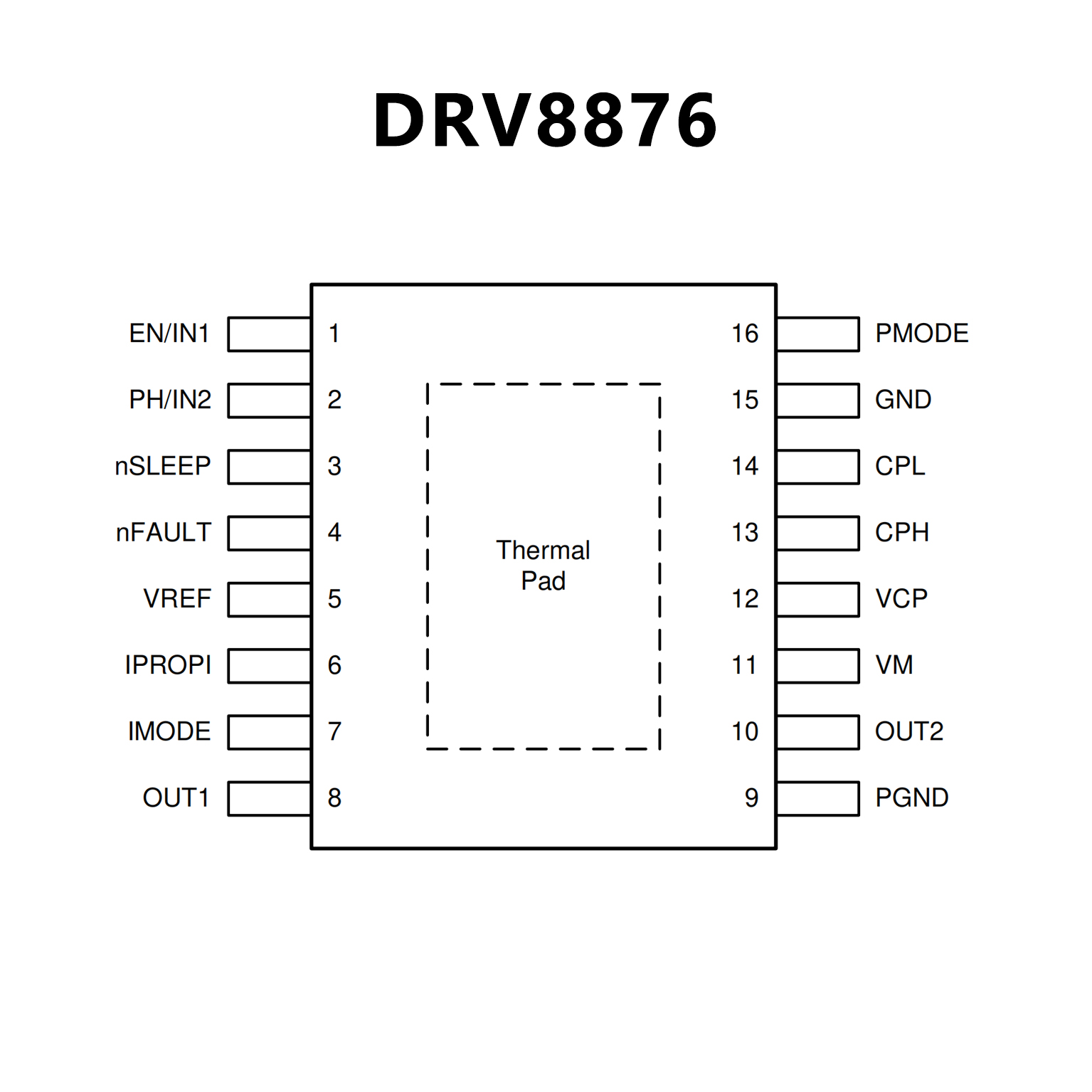

PIN CONFIGUTION
