26V, Zero-Drift, High-Precision Current Monitors, ZXCT211 Replace TSC211.
ZXCT211
ZXCT211.pdf
ZXCT211.pdfFEATURES
? Supply Voltage Range: 2.7V to 26V
? Temperature Range: -40°C to +125°C
? Wide Common-Mode Range: -0.3V to 26V
? Support Shunt Drops of 10mV Full-Scale
? Gain Error (Maximum Overtemperature)
? A and B Version: ±0.8%
? C Version: ±0.5%
? Low Offset Voltage: ±30μV (max)
? Quiescent Current: 100μA (max)
? Low Gain Error Drift: 10ppm/°C (max)
? Rail-to-Rail Output Capacity
? Choice of Gains:
– ZXCT210: 200V/V
– ZXCT211: 500V/V
– ZXCT212: 1000V/V
– ZXCT213: 50V/V
– ZXCT214: 100V/V
– ZXCT215: 75V/V
? Package: 6-pin SOT363 and 10-pin U-QFN1418-10
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? An automotive-compliant part is available under separate
datasheet (ZXCT21xQ)

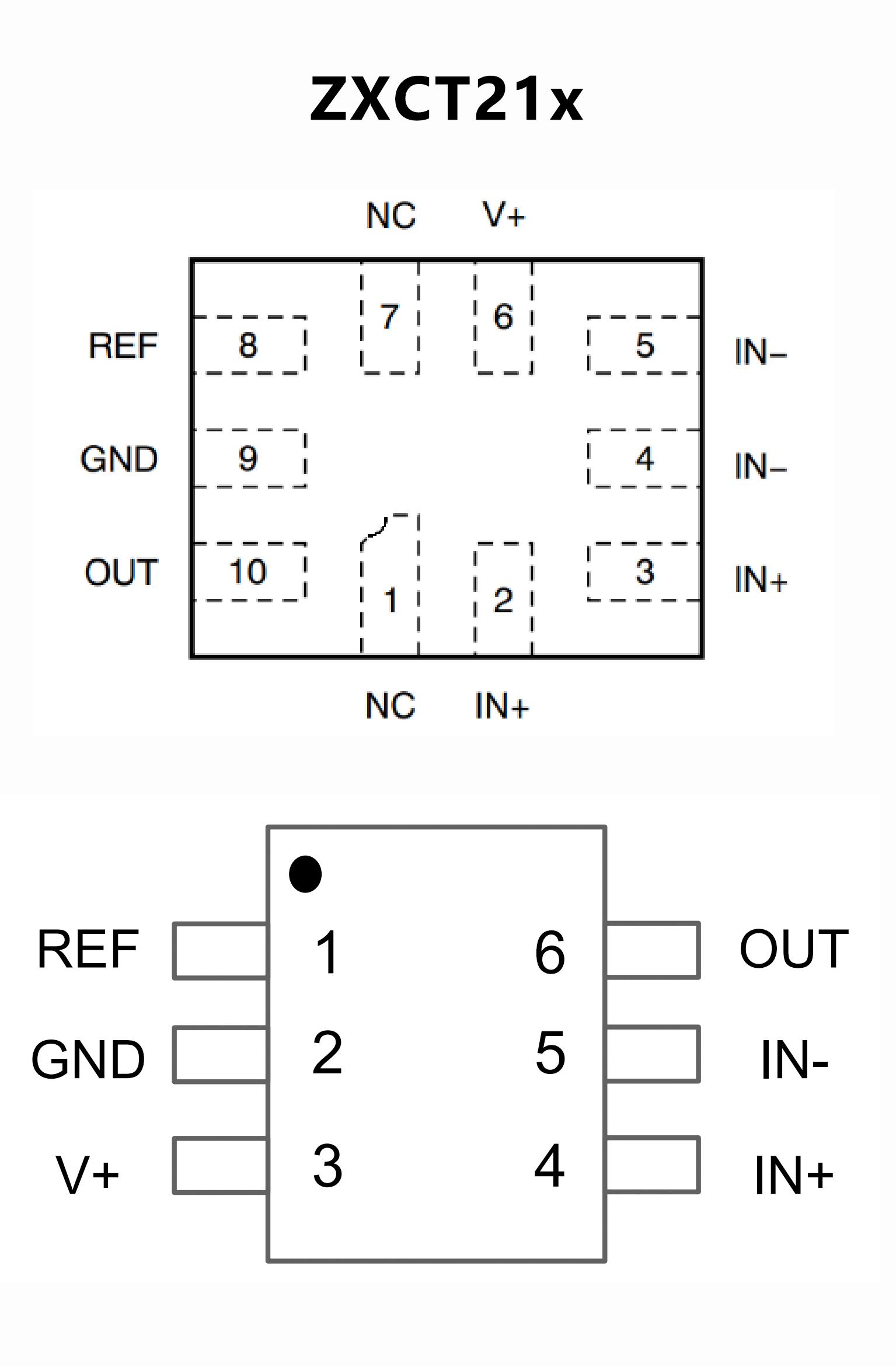

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Wide common mode voltage: -0.3 to 26 V
? Offset voltage: ±35 ?V max. (TSC210)
? 2.7 to 26 V supply voltage
? Different gain available
– TSC210 (200 V/V)
– TSC211 (500 V/V)
– TSC212 (1000 V/V)
– TSC213 (50 V/V)
– TSC214 (100 V/V)
– TSC215 (75 V/V)
? Gain error: ±1% max.
? Offset drift: 0.1 ?V/°C max.
? Gain drift: 20 ppm/°C max.
? Quiescent current: 100 ?A
? QFN10 (1.8x1.4) and SC70-6
PIN CONFIGUTION
