26V, Zero-Drift, High-Precision Current Monitors, ZXCT214 Replace INA214.
ZXCT214
ZXCT214.pdf
ZXCT214.pdfFEATURES
? Supply Voltage Range: 2.7V to 26V
? Temperature Range: -40°C to +125°C
? Wide Common-Mode Range: -0.3V to 26V
? Support Shunt Drops of 10mV Full-Scale
? Gain Error (Maximum Overtemperature)
? A and B Version: ±0.8%
? C Version: ±0.5%
? Low Offset Voltage: ±30μV (max)
? Quiescent Current: 100μA (max)
? Low Gain Error Drift: 10ppm/°C (max)
? Rail-to-Rail Output Capacity
? Choice of Gains:
– ZXCT210: 200V/V
– ZXCT211: 500V/V
– ZXCT212: 1000V/V
– ZXCT213: 50V/V
– ZXCT214: 100V/V
– ZXCT215: 75V/V
? Package: 6-pin SOT363 and 10-pin U-QFN1418-10
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? An automotive-compliant part is available under separate
datasheet (ZXCT21xQ)

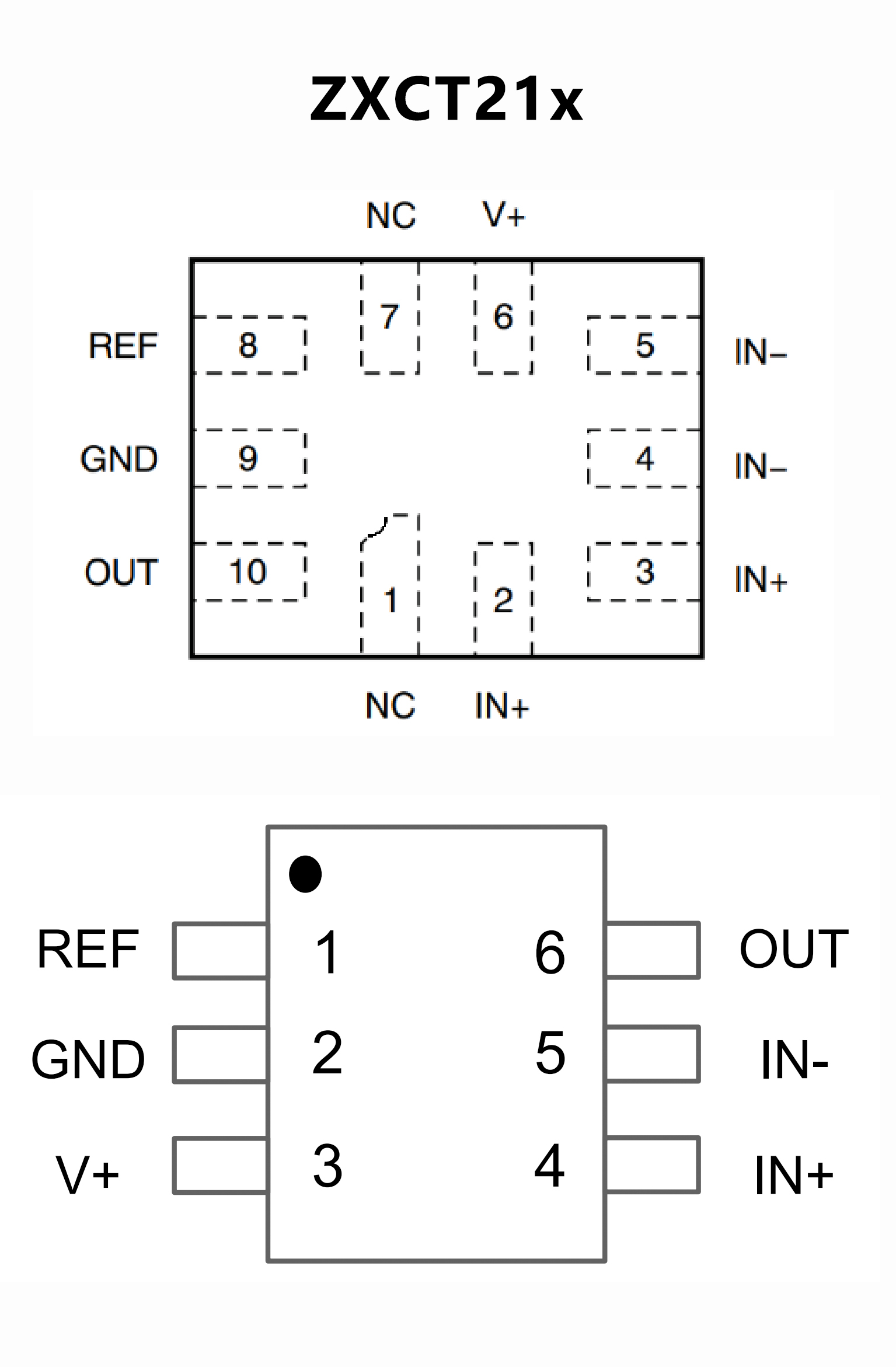

PIN CONFIGUTION
優勢替代
FEATURES
? Updated format to match new TI layout and flow.
Tables, figures and cross-references use a new
numbering sequence throughout the document.
Wide Common-Mode Range: –0.3 V to 26 V
? Offset Voltage: ±35 μV (Maximum, INA210)
(Enables Shunt Drops of 10-mV Full-Scale)
? Accuracy:
– Gain Error (Maximum Over Temperature):
? ±0.5% (Version C)
? ±1% (Versions A and B)
– 0.5-?V/°C Offset Drift (Maximum)
– 10-ppm/°C Gain Drift (Maximum)
? Choice of Gains:
– INA210: 200 V/V
– INA211: 500 V/V
– INA212: 1000 V/V
– INA213: 50 V/V
– INA214: 100 V/V
– INA215: 75 V/V
? Quiescent Current: 100 μA (Maximum)
? SC70 and Thin UQFN Packages: All Models

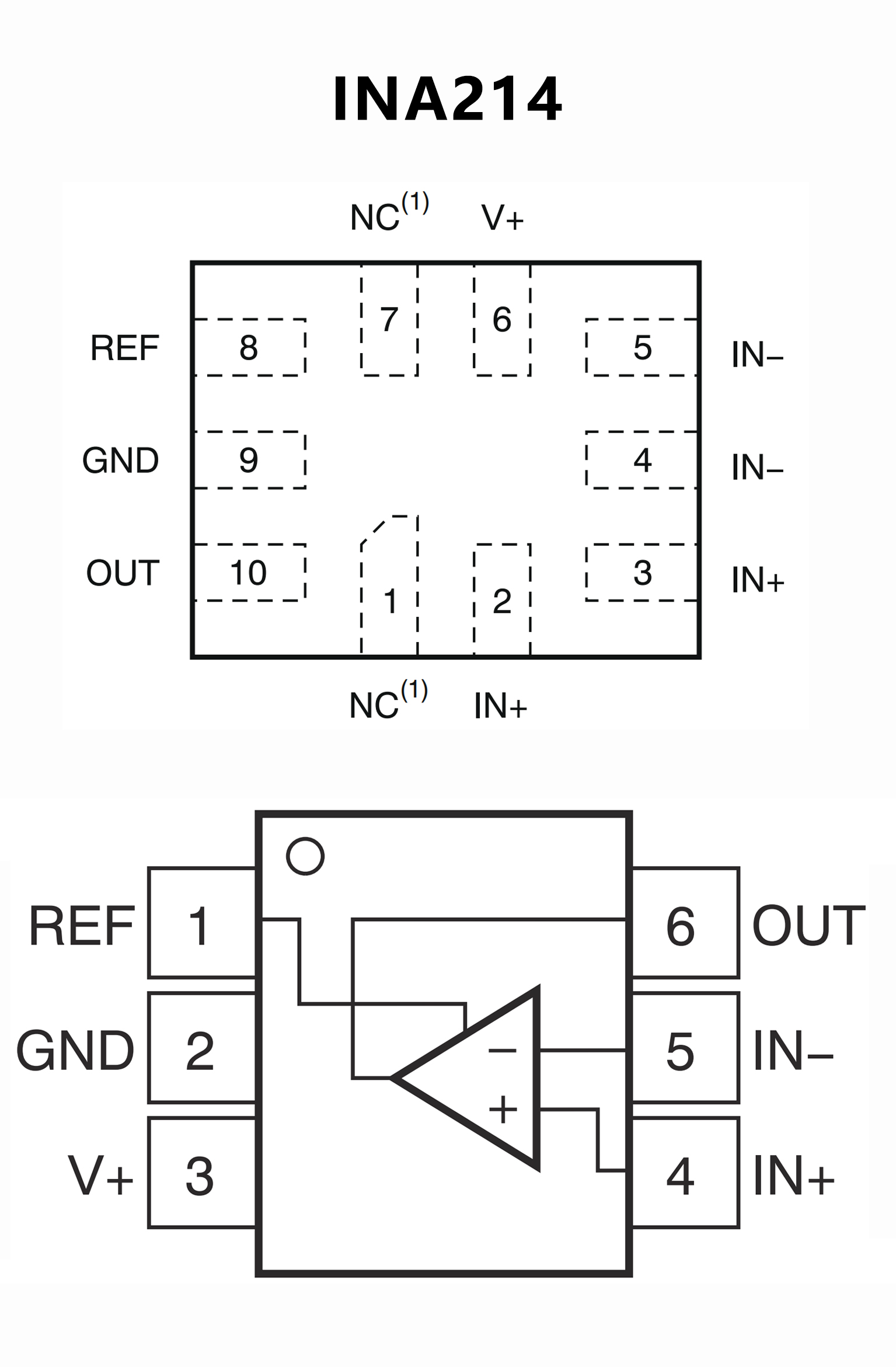

PIN CONFIGUTION
