? Single USB Port Power Switches
? Over-Current and Thermal Protection
? 0.8A Accurate Current Limiting
? Reverse Current Blocking
? 95mΩ On-Resistance
? Input Voltage Range: 2.7V to 5.5V
? 0.6ms Typical Rise Time
? Very Low Shutdown Current: 1?A (Max)
? Fault Report (FLG) with Blanking Time (7ms Typ)

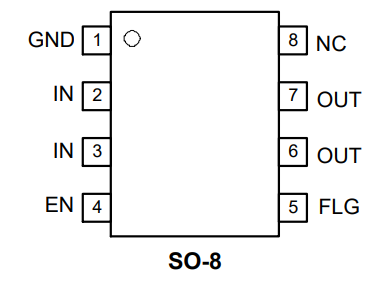

The AP2141 is integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. This family of devices complies with USB 2.0 and is available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. All devices is available in SO-8 package.
