300mW Dual Surface Mount Zener Diode
AZ23C3V0-7-F
AZ23C3V0-7-F.pdf
AZ23C3V0-7-F.pdf
No.10538
FEATURES
? Dual Zeners in Common Anode Configuration
? 300mW Power Dissipation Rating
? Ideally Suited for Automated Insertion
? VZ for Both Diodes in One Case is ≤5%
? Common Cathode Style Available See DZ Series
DESCRIPTION
300mW Dual Surface Mount Zener Diode
APPLICATION CIRCUIT

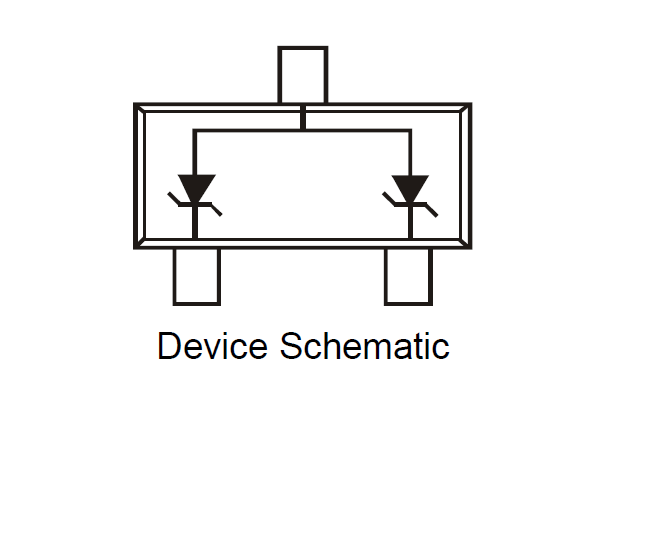

PIN CONFIGUTION
