15A SBR Super Barrier Rectifier
SBR15U50SP5-13
SBR15U50SP5-13.pdf
SBR15U50SP5-13.pdf
No.10604
FEATURES
? Low Forward Voltage Drop (VF) Helps – Minimizes Power Losses
? Excellent Stability at Higher Temperatures
? Thermally Efficient Package for Cooler Running Applications
? Less than 1.1mm Package Profile Ideal for Thin Applications
DESCRIPTION

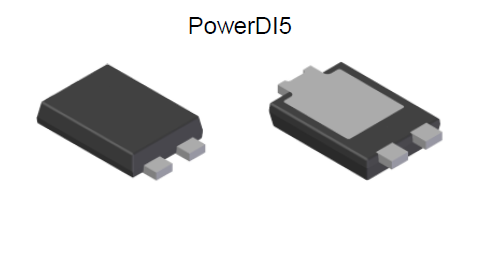

Packaged in the compact thermally efficient PowerDI5 package, the SBR15U50SP5 provides very low VF and provides excellent reverse leakage stability at high temperatures. It is ideal for use as a rectification, freewheeling or polarity protection diode.
APPLICATION CIRCUIT

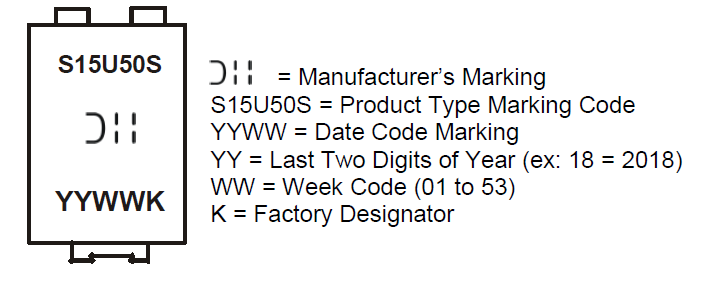

PIN CONFIGUTION
