20V N-Channel Enhancement Mode MOSFET.
DMN2056U-7
DMN2056U-7.pdf
DMN2056U-7.pdf
No.13530
FEATURES
? Low On-Resistance
? Low Gate Threshold Voltage
? Low Input Capacitance
? Fast Switching Speed
? Low Input/Output Leakage
DESCRIPTION
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
? Battery Charging
? Power Management Functions
? DC-DC Converters
? Portable Power Adaptors

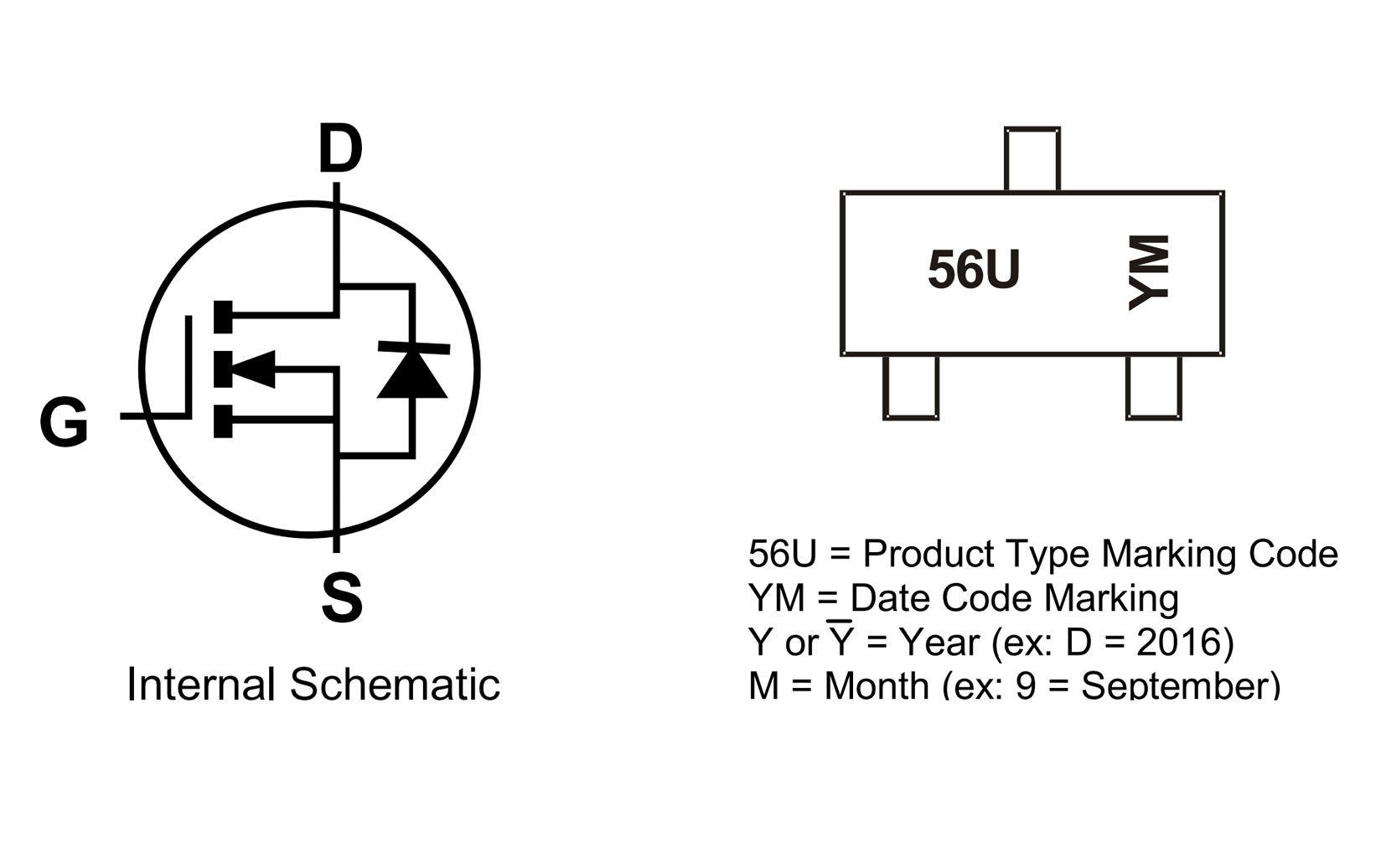

APPLICATION CIRCUIT

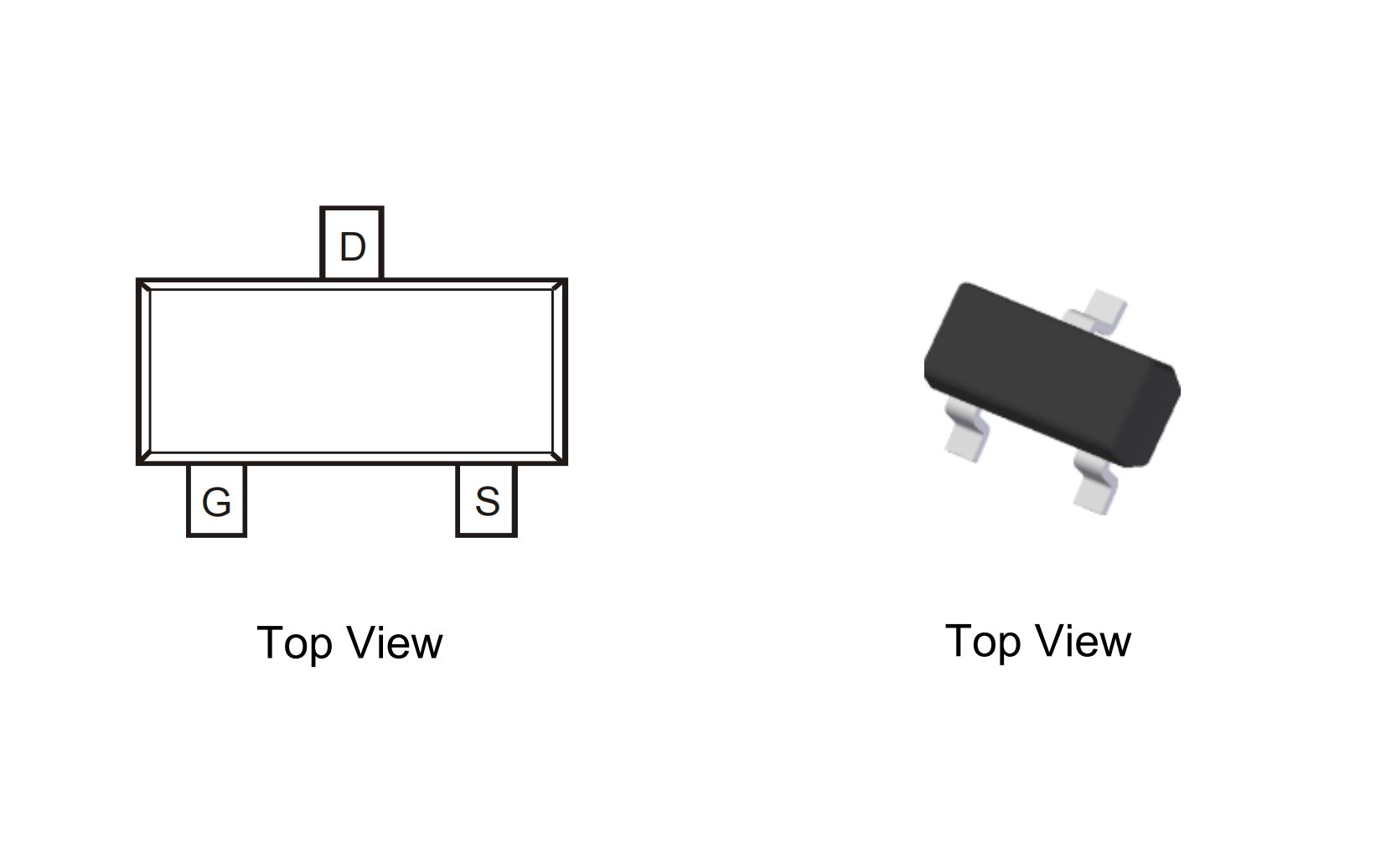

PIN CONFIGUTION
