SGM2522.pdf
No.10798
? Wide Input Voltage Range from 4.5V to 24V
with Surge up to 30V
? Extremely Low RDS(ON) for the Integrated
Protection Switch: 58mΩ (SOIC-8 Package)
? Programmable Soft-Start Time
? Programmable Current Limit 2A MAX
? Enable Interface Pin
? Short-Circuit Protection
? Over-Voltage Protection
? Fault Output for Thermal Shutdown,
Short-Circuit, UVLO and OVP
? Thermal Shutdown Protection
SGM2522: Latched-Off
The SGM2521 and SGM2522 are compact, feature rich eFuse with a full suite of protection functions. The wide operating voltage allows control of many popular DC buses. The precise ±10% current limit, at room temperature, provides excellent accuracy making the SGM2521/2 well suited for many system protection applications.
Load, source and device protection are provided with multiple programmable features including over-current (OC), over-voltage (OV) and under-voltage (UV). 3% threshold accuracy for UV and OV, ensures tight supervision of bus voltages, eliminating the need for supervisor circuitry. Fault flag output (nFLT) is provided for system status monitoring and down stream load control.

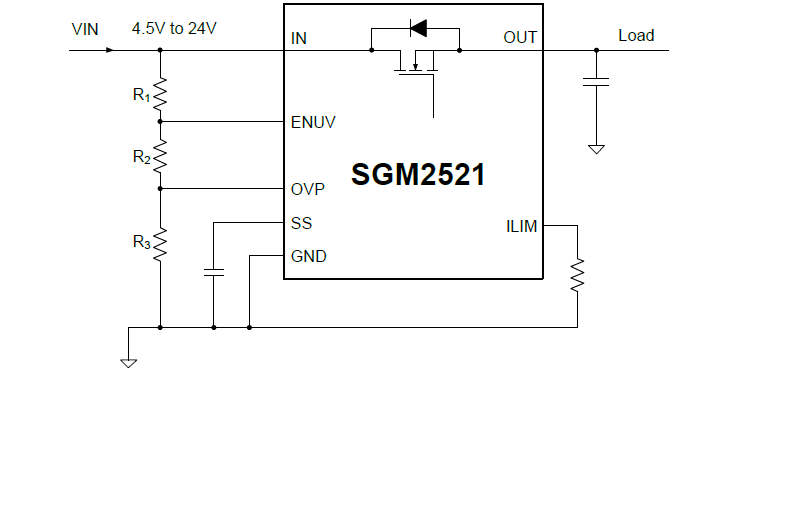

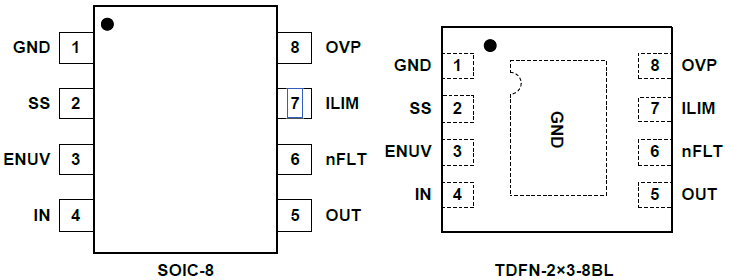

The SGM2521/2 are available in Green SOIC-8 and TDFN-2×3-8BL packages and operate over a temperature range of -40℃ to +85℃.
